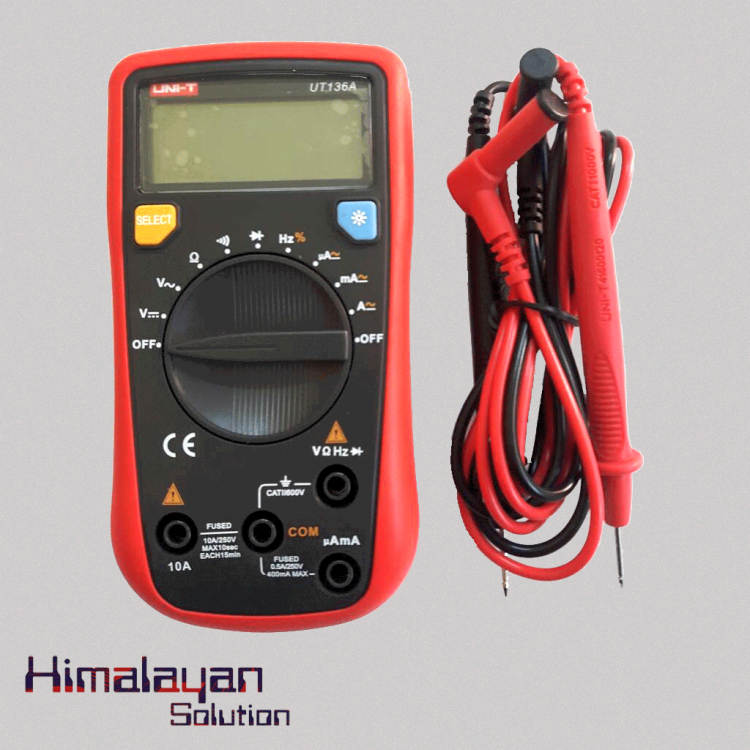

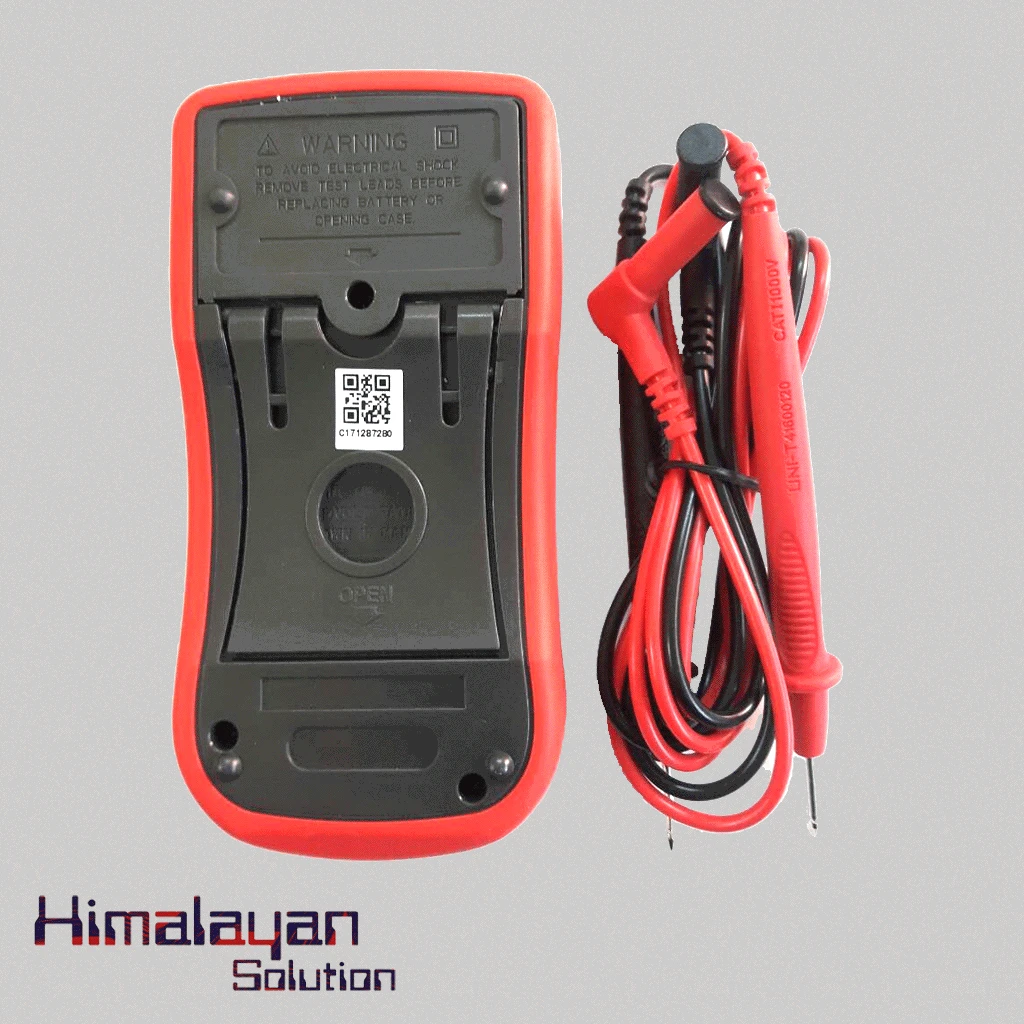

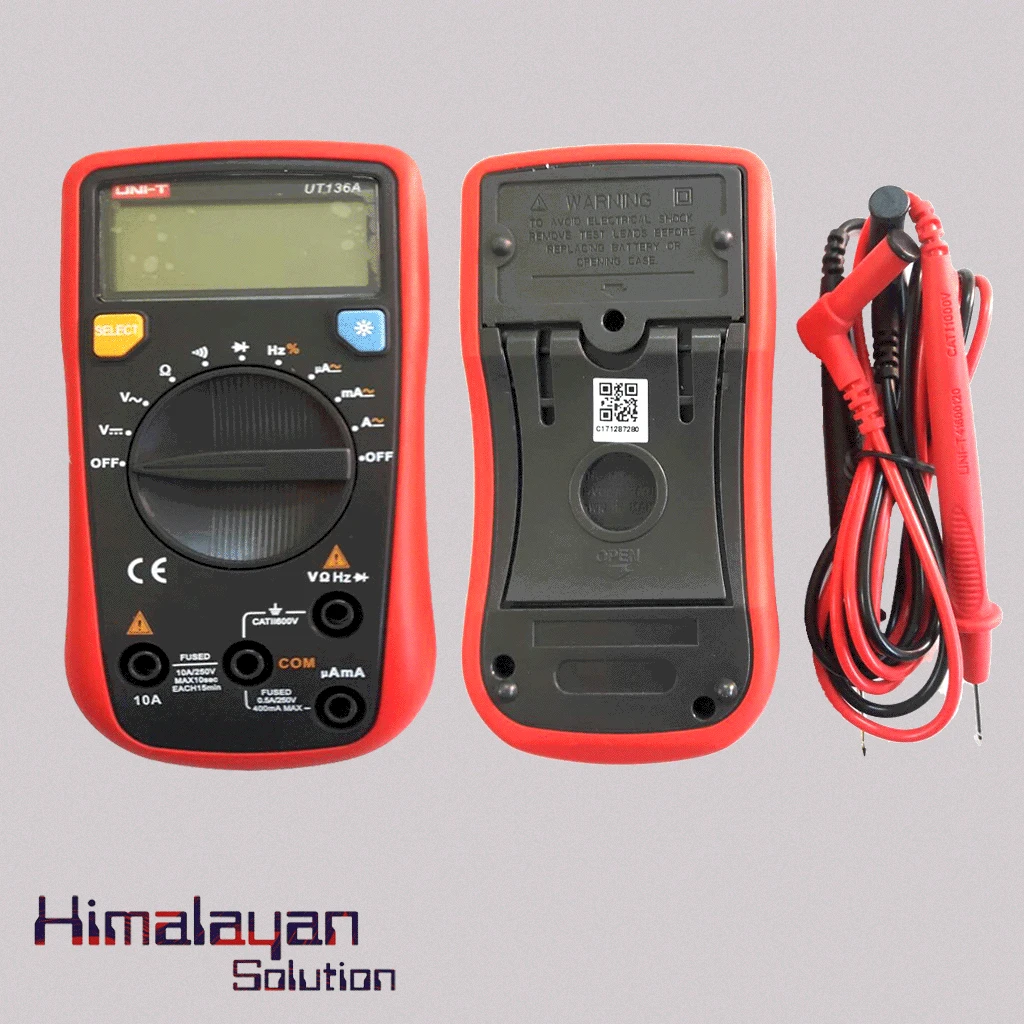

UT 136 A Multi-meter

UT 136A is a handheld auto ranging digital multimeter. It has novel structural design, high degree of safety and reliability, low power consumption, stable performance. It can measure voltage, current, and resistance, use to trouble shoot electrical problems on different devices such as motor controls, power supplies, wiring system and many more. It also has features like continuity buzzer, auto power off, low battery display, data hold.

In Category:
  • Power
  • Measurement
  • Electric Tools
  • Availability: Out Of Stock

    Model UT136A
    Type Digital Multimeter
    LCD Size 49 * 18mm
    Max Display 3999
    DC Voltage 400mV/4V/40V/400V/500V ±(0.8%+1)
    AC Voltage 400mV/4V/40V/400V/500V ±(1.2%+3)
    DC Current 400uA/4mA/40mA/400mA/4A/10A ±(1.0%+2)
    AC Current 400uA/4mA/40mA/400mA/4A/10A ±(1.2%+5)
    Resistance 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+2)
    Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+3)
    Duty Cycle 0.1%∽99.9%
    Diode Testing Yes
    Continuity Buzzer Yes
    Auto Power Off Yes
    Low Battery Display Yes
    Input Impedance For DC Voltage Measure ≥10 MΩ
    Auto Data Hold Yes
    Battery 9v Battery (Not Included)
    Color Red & Grey
    Size 72 * 137 * 35mm
    Weight 200 g (Battery Included)
