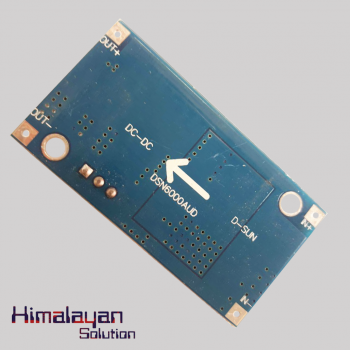

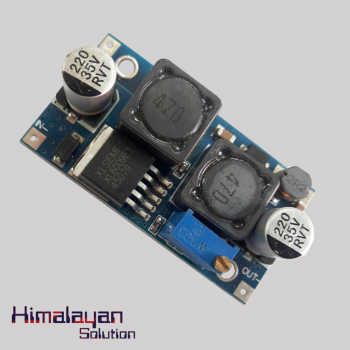

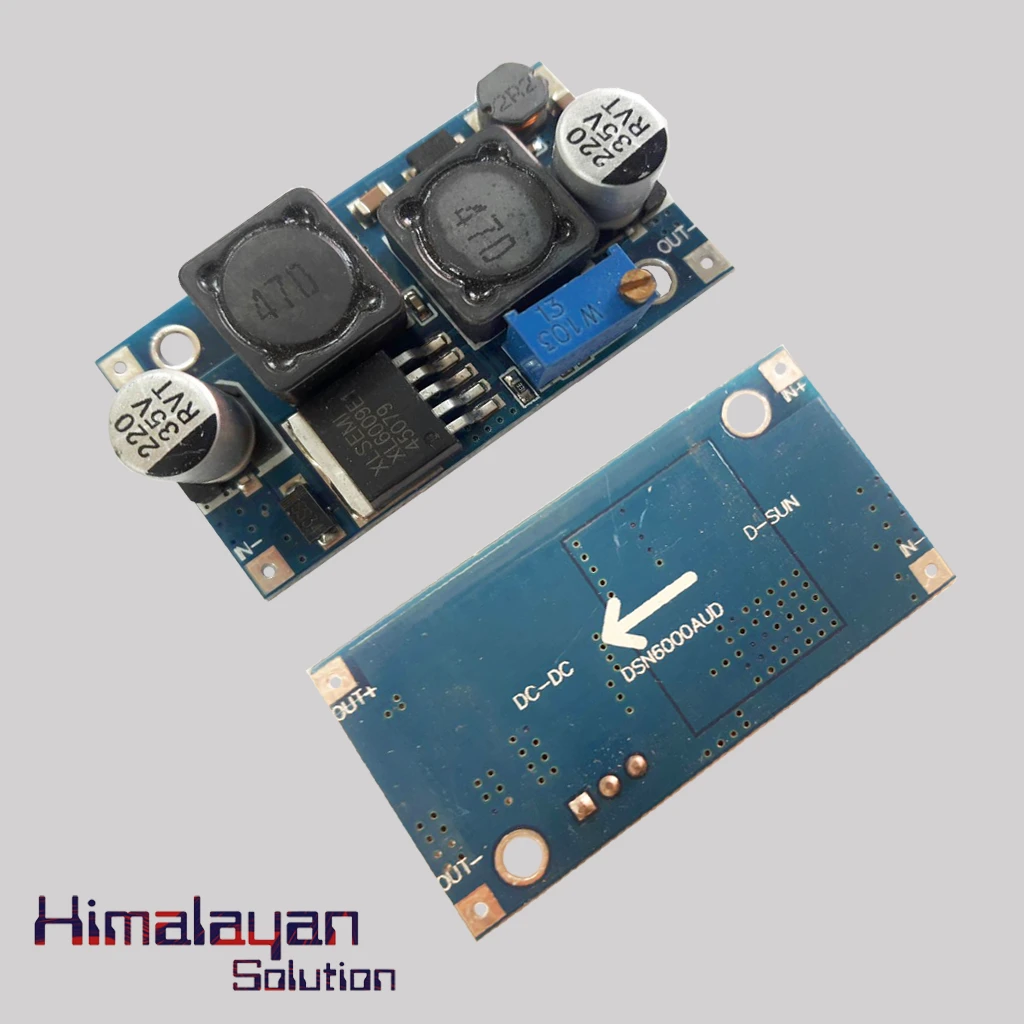

Buck & Boost Module
The Buck and Boost Module is a DC to DC automatic (step up & step down) XL6009 adjustable voltage regulator module and boost buck converter module. For example: - Auto start voltage will be pulled down to 7V or less, and engine will at high speed when the voltage up to 15V or higher. For 12V electrical equipment, it could be a problem to work properly so this automatic buck boost module can help to solve this problem, regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V. It can be suitable in various applications like: - Car regulator, solar photovoltaic, wind power and other applications of voltage instability.
Availability: Out Of Stock
| Name | Buck And Boost Module |
| Input Voltage Range | DC 3.8V to 32V |
| Output Voltage Range | Adjustable 1.25 To 35V DC (With Automatic Lifting Pressure, Scope Of Work, Any Input Voltage Can Be Regulated At Any Voltage Output) |
| Input Current | 3A Max |
| Voltage Regulation | 0.50% |
| Load Regulation | 0.50% |
| Operating Temperature | -40°C To +85° C |
| Conversion Efficiency | up to 94% |
| Switching Frequency | 400 KHz |
| Module Properties | Non-Isolated Step-Up (BOOST) Switching Regulator |
| Rectification | Non-Synchronous Rectification |
| Output Ripple | 50mV |
| Size | 48 mm X 25 mm X 14 mm |
