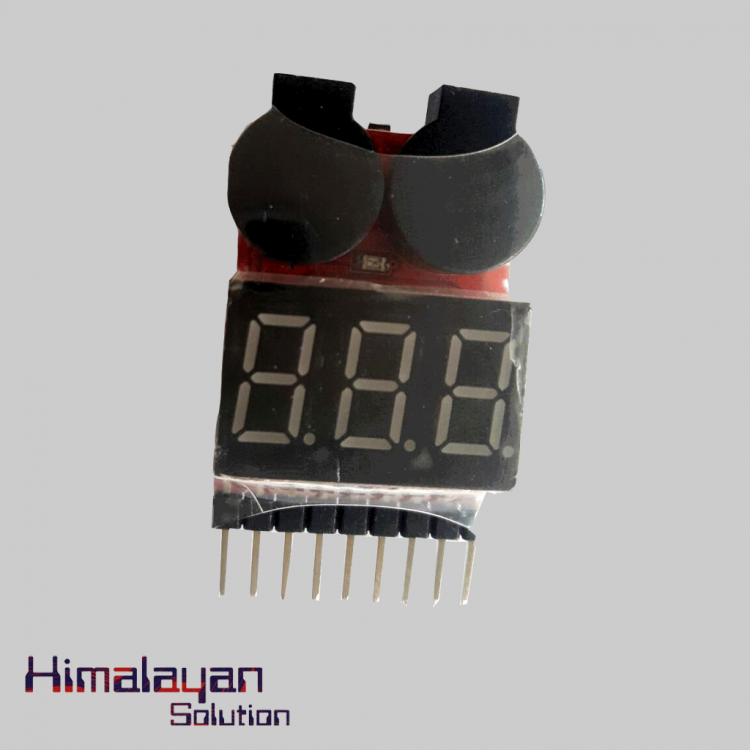

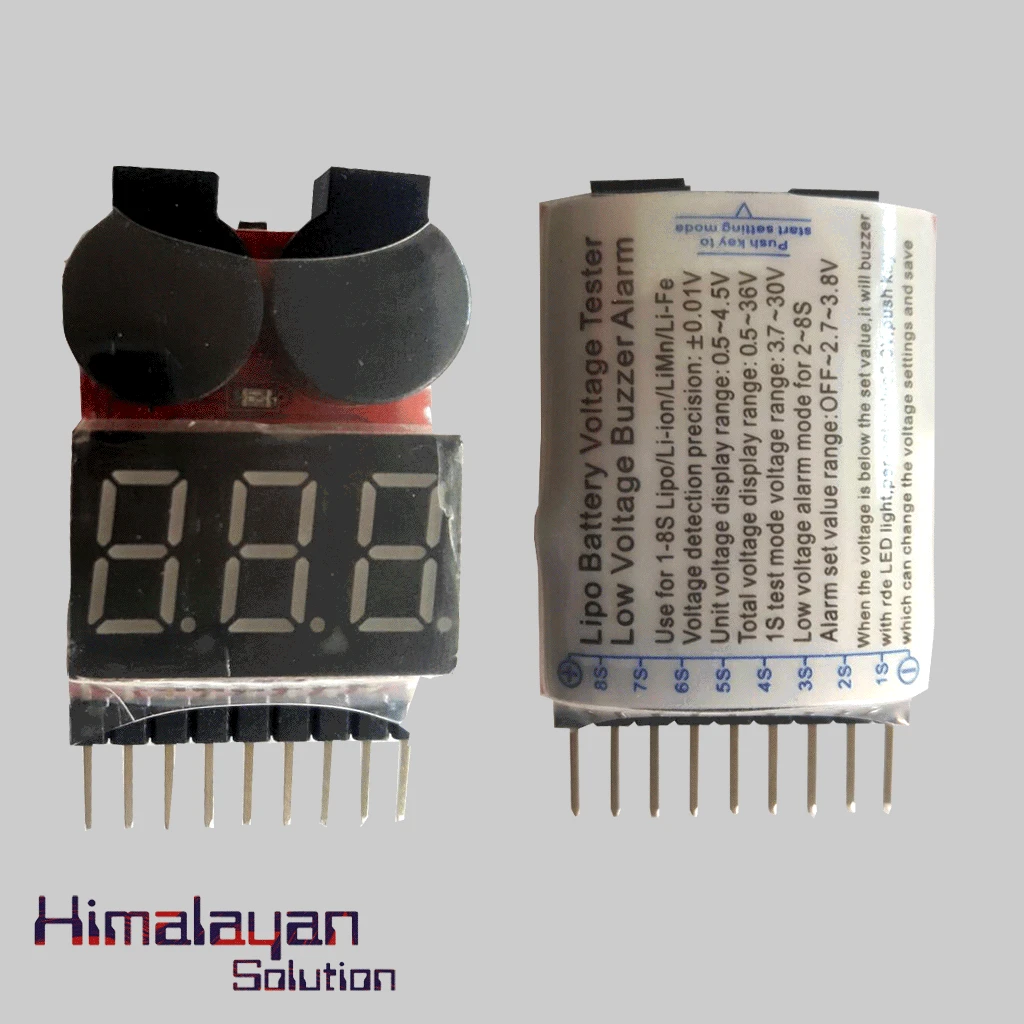

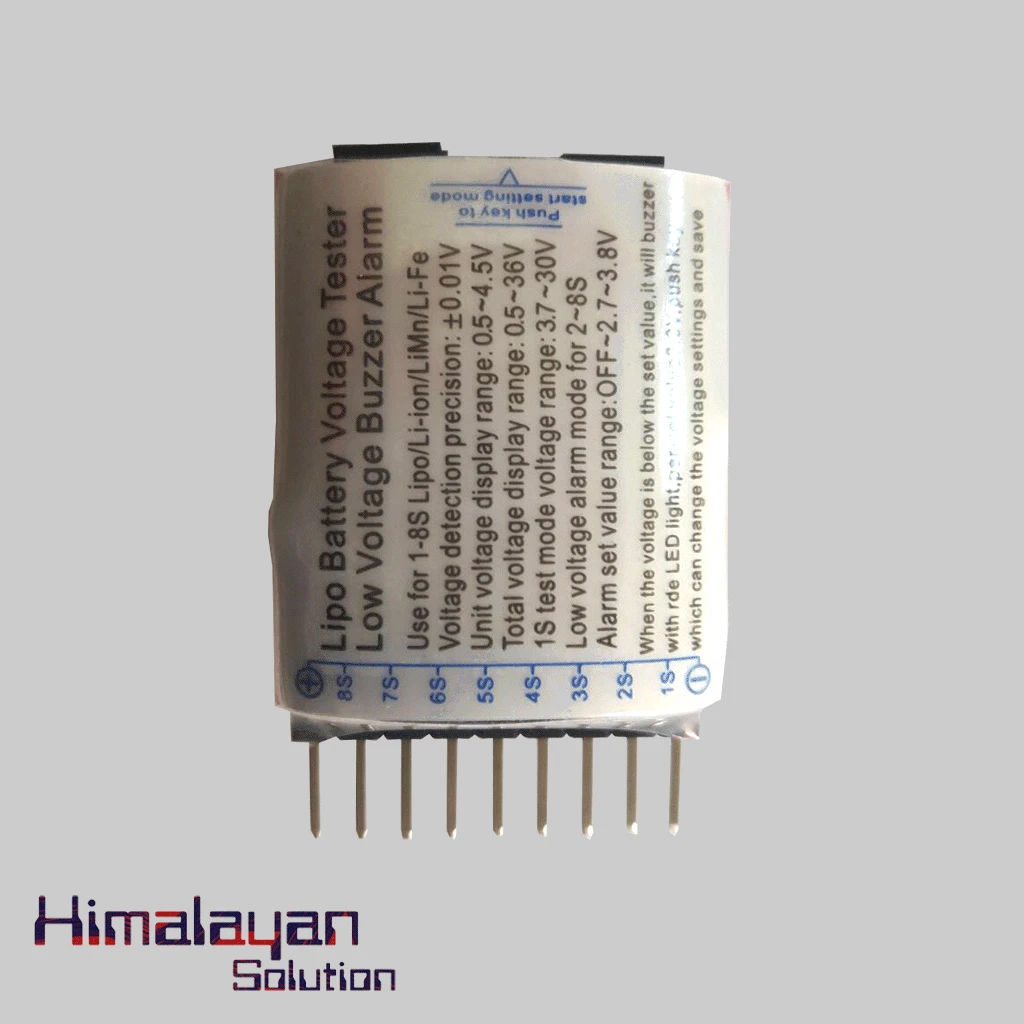

Lipo Tester

Lipo Tester is used for detecting 1S-8S lithium battery voltage. It help to protect battery form overcharge and over discharge.   The buzzer with red led flash when the voltage is below the set point. The default setting is 3.3V that can be changed. This lipo tester is applicable for 1S-8S / Lipo / Li-ion / Li Mn / Li-Fe battery, RC Quad copter, helicopter, multicopter, car, boat and airplane etc.

In Category:
  • Power
  • Measurement
  • Availability: In Stock

    Input  2S~8S
    Battery Type Lipo/LiFe/Li-ion
    Cell Voltage Display Range 0.5v~4.5v
    Total Voltage Display Range 3.7~36v
    Alarm Set Values Off or 2.7~3.8v
    Size 41x25x10mm
    Weight  9g
    Voltage Detection Pricision 0.01V
    Unit Voltage Display Range 0.5V-4.5V
    Total Voltage Display Range 0.5V-36V
    1S Test Mode Voltage Range 3.7v-30v
