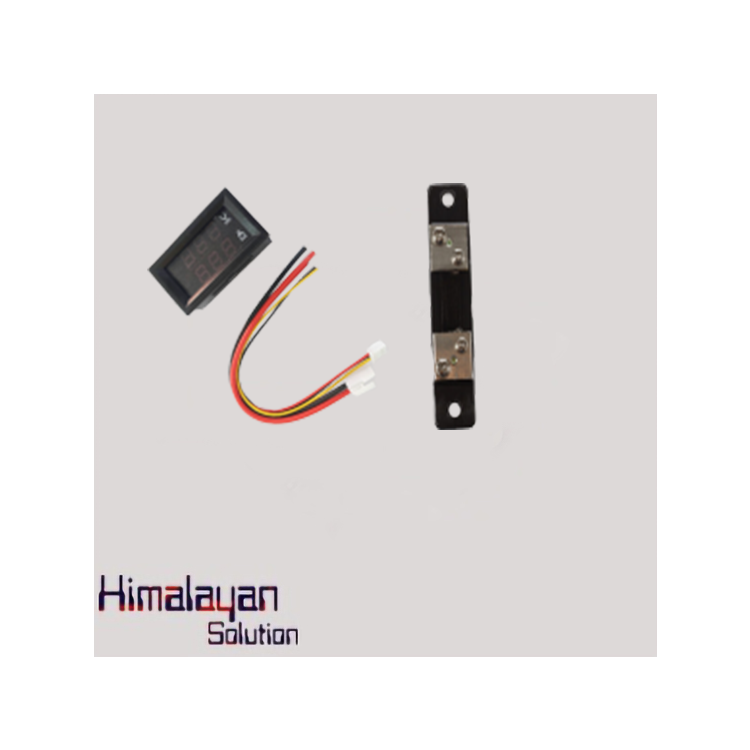

Shunt Resistance For Path Metric Amp I9Y5
This module is used for displaying current and voltage of a device. It has dual display in red colour.The refresh rate is 500ms per times. It is suitable for electric cars / motorcycles battery monitoring and many more.
Availability: In Stock
| Operating Voltage | DC 4.5 ~ 30V |
| Measure Voltage | DC 0 ~ 100V |
| Minimum Resolution(V) | 0.1V |

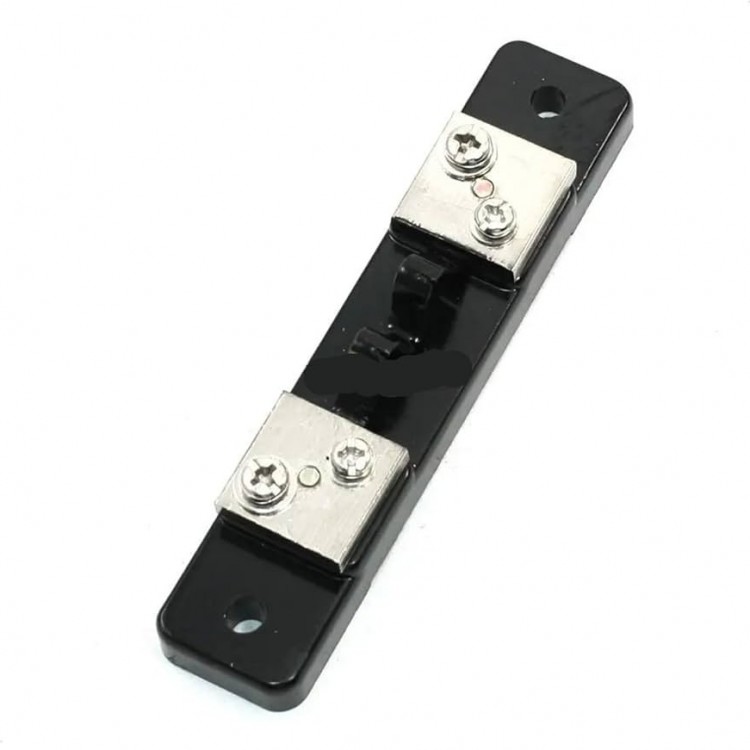

| Measure Current | DC 50A (Require External Shunt) |
| Minimum Resolution(A) | 0.1A |
| Operating Current | <20mA |
| Display | Three 0.28" LED Digital Tube |
| Display Color | Red (Dual Display) |
| Size | 48 x 29 x 21mm |
| Mounting Cutout | 45.5 x 26.5mm |
| Refresh Rate | About 500mS / Times |
| Measure Accuracy | 1% (+/- 1 Digit) |
| Operating Temperature | -10 to 65° c |
| Operating Humidity | 10 to 80% (Non-Condensing) |
| Working Pressure | 80 to 106 kPa |
