3A Buck Module

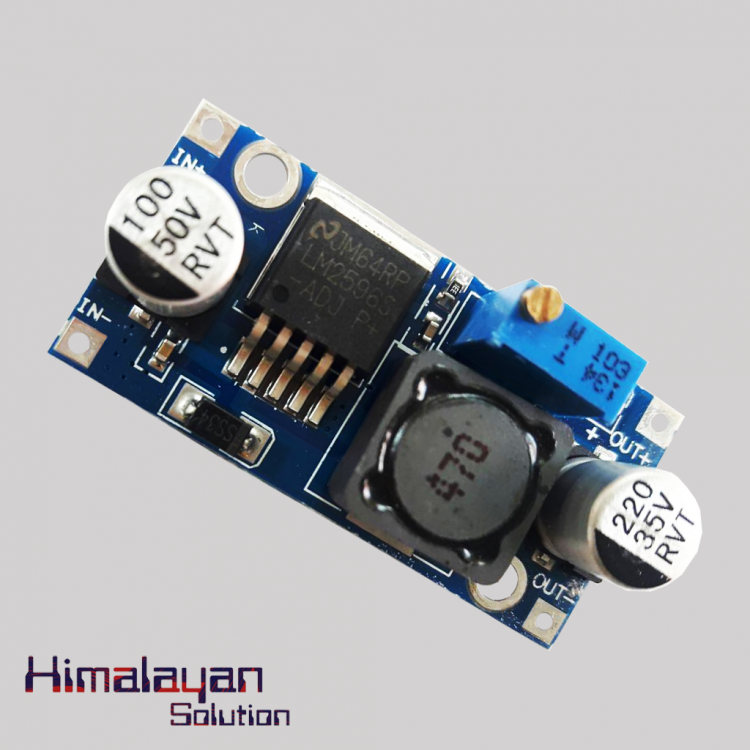

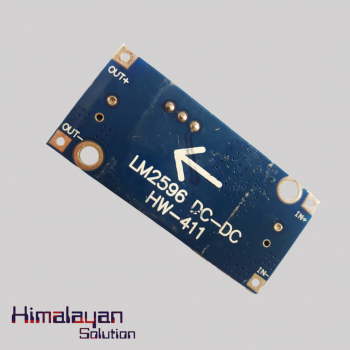

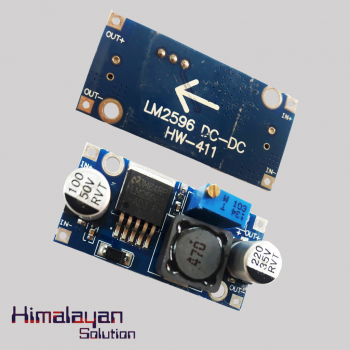

The 3A Buck Module is an LM2596 DC-DC buck converter step-down power module. It has high precision potentiometer for adjusting output voltage. It is capable of driving a load up to 3A with high efficiency. It is suitable for applications like: - Simple high efficiency step down (buck) regulator, On-card switching regulators, Positive to Negative converter and many more.
Availability: In Stock
| Name | 3A Buck Module |
| Module Properties | Non-Isolated Constant Voltage Module |
| Rectification | Non-Synchronous Rectification |
| Input Voltage | 4.5V-35V |
| Output Voltage(Less Than Input) | 1.3V-30V |
| Output Current | 3A Maximum |
| Conversion Efficiency | 92% (Maximum) |
| Switching Frequency | 150KHz |
| Output Ripple | 50mV (Maximum) 20M-Bandwidth |
| Load Regulation | ± 0.5% |
| Voltage Regulation | ± 2.5% |
| Operating Temperature | -40 ℃ to +85 ℃ |
| Size | 48 * 23 * 14 mm |
