Arduino Pro Micro

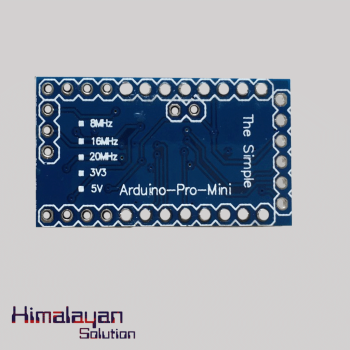

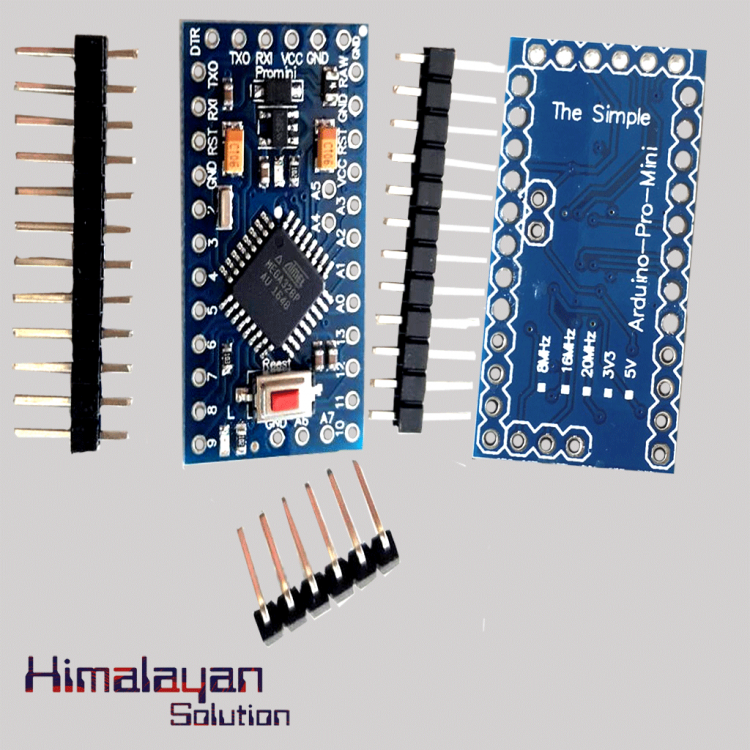

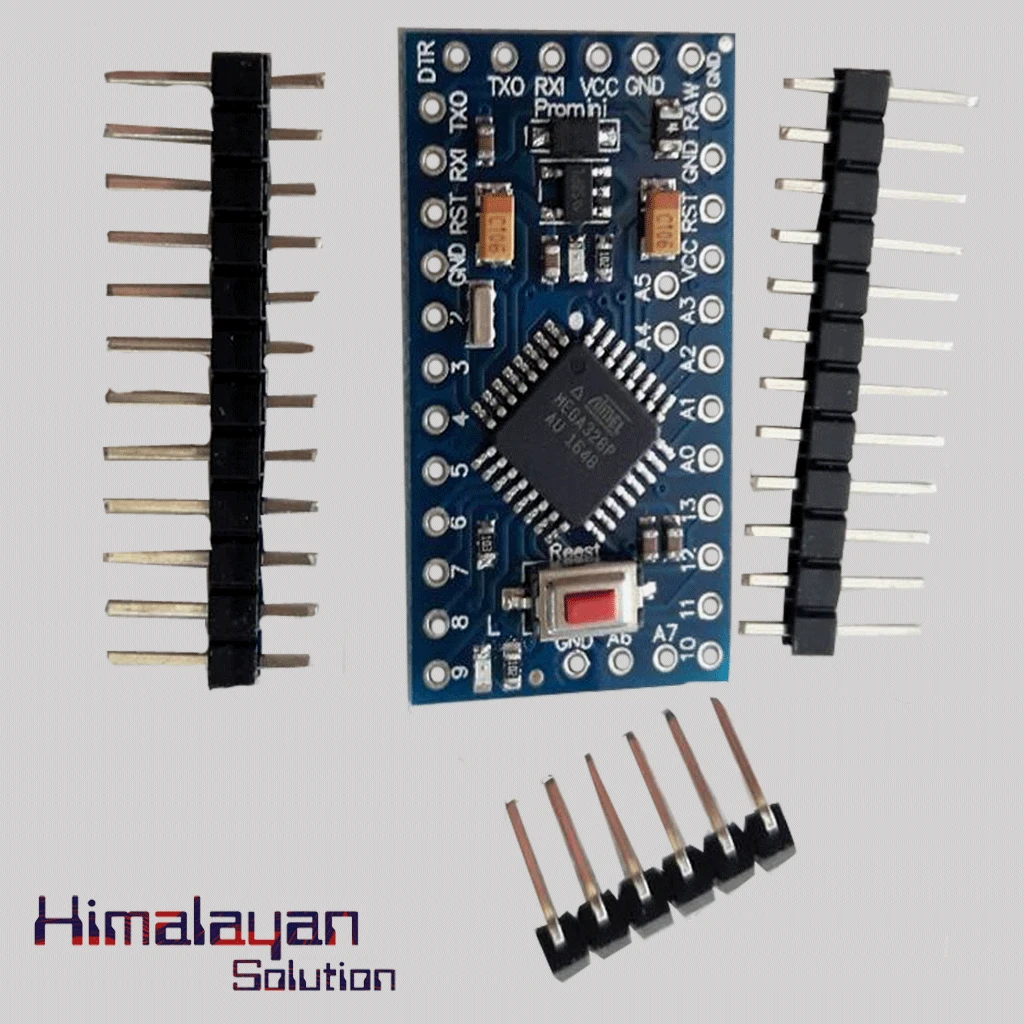

Arduino Pro Mini

The Arduino Pro Mini is a microcontroller board based on the ATmega328 that does not come with connectors populated so that you can solder in any connector or wire with any orientation you need. It has Max 150mA output and 5V regulator. It supports  auto rest and has On board Power and Status LEDs. Its weight is less than 2g. To provide USB power and communication to the board a six pin header can be connected.It has the features of over current protection and reverse polarity protection.

In Category:
  • Arduino
  • Boards
  • Availability: In Stock

    Microcontroller ATmega326
    Operating Voltage 3.3V or 5V
    Input Voltage 3.35 -12 V (3.3V model) or 5 - 12 V (5V model)
    Digital I/O Pins 14
    Analog Input Pins 8
    DC Current Per I/O Pin 40 mA
    Flash Memory 16 KB
    SRAM 2 KB
    EEPROM 1 KB
    Clock Speed 8 MHz (3.3V model) or 16 MHz (5V model)
    Weight Less Than 2 grams
