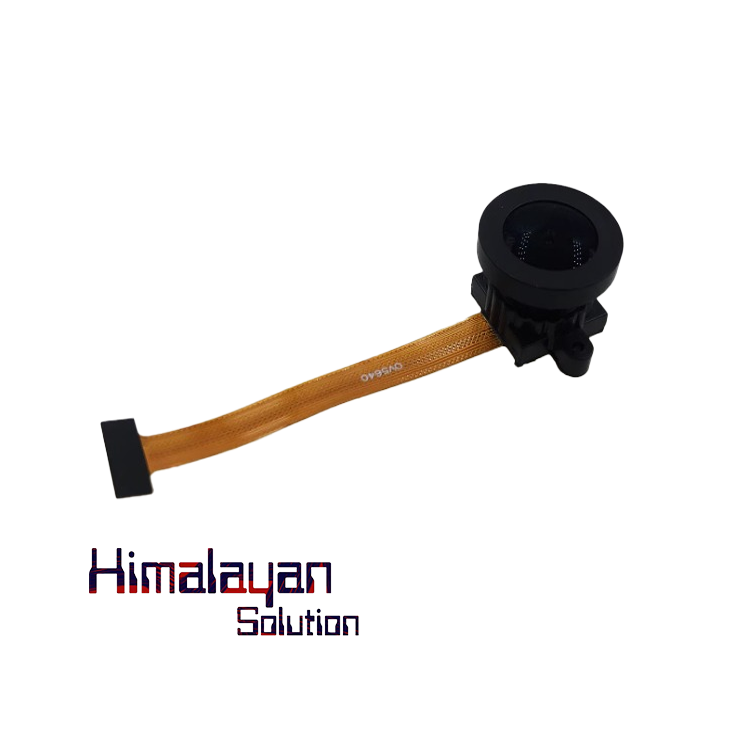

OV5640 camera module 155° vision

The OV5640 module with a 155° wide-angle lens offers an ultra-wide field of view for applications requiring large area coverage. The long 625mm flexible flat cable (FFC) allows easy integration into devices with constrained spaces or where the camera needs to be placed at a distance from the mainboard.

• Field of View (FOV): 155° wide-angle for broader scene capture.
• Cable Length: 625mm, providing flexibility for placement in embedded designs.
• Resolution: 5MP (2592 x 1944) image capture with 1080p video support.
• Interface: 24-pin FPC with DVP and I2C control.

• Advanced ISP:
  • Automatic White Balance (AWB).
  • Automatic Exposure Control (AEC).
  • Automatic Gain Control (AGC).
• Applications:
  • Surveillance with wide-area monitoring.
  • Robotics with panoramic vision.
  • Dashcams and IoT devices requiring extended cable reach.
  • Surveillance cameras
  • Embedded systems (e.g., Raspberry Pi, STM32, ESP32).
