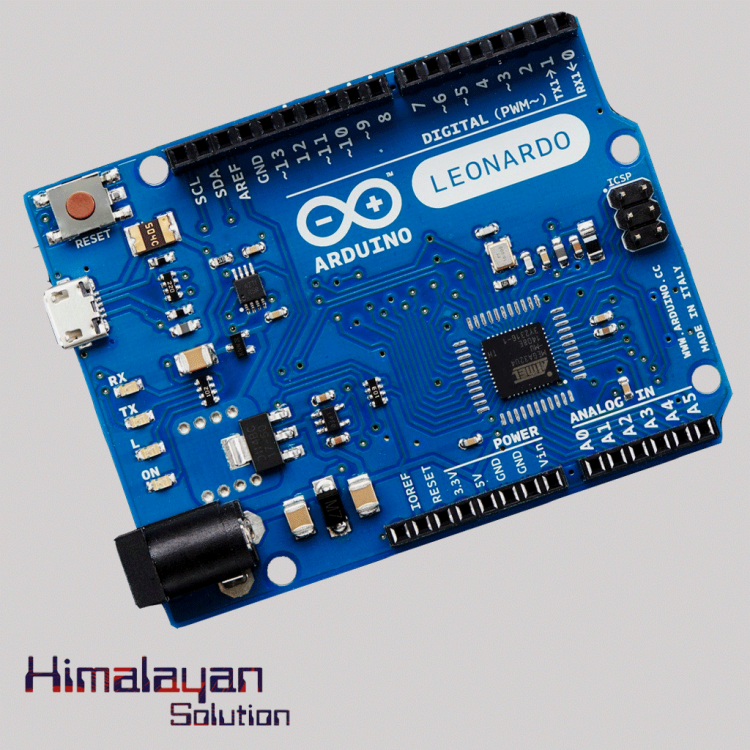

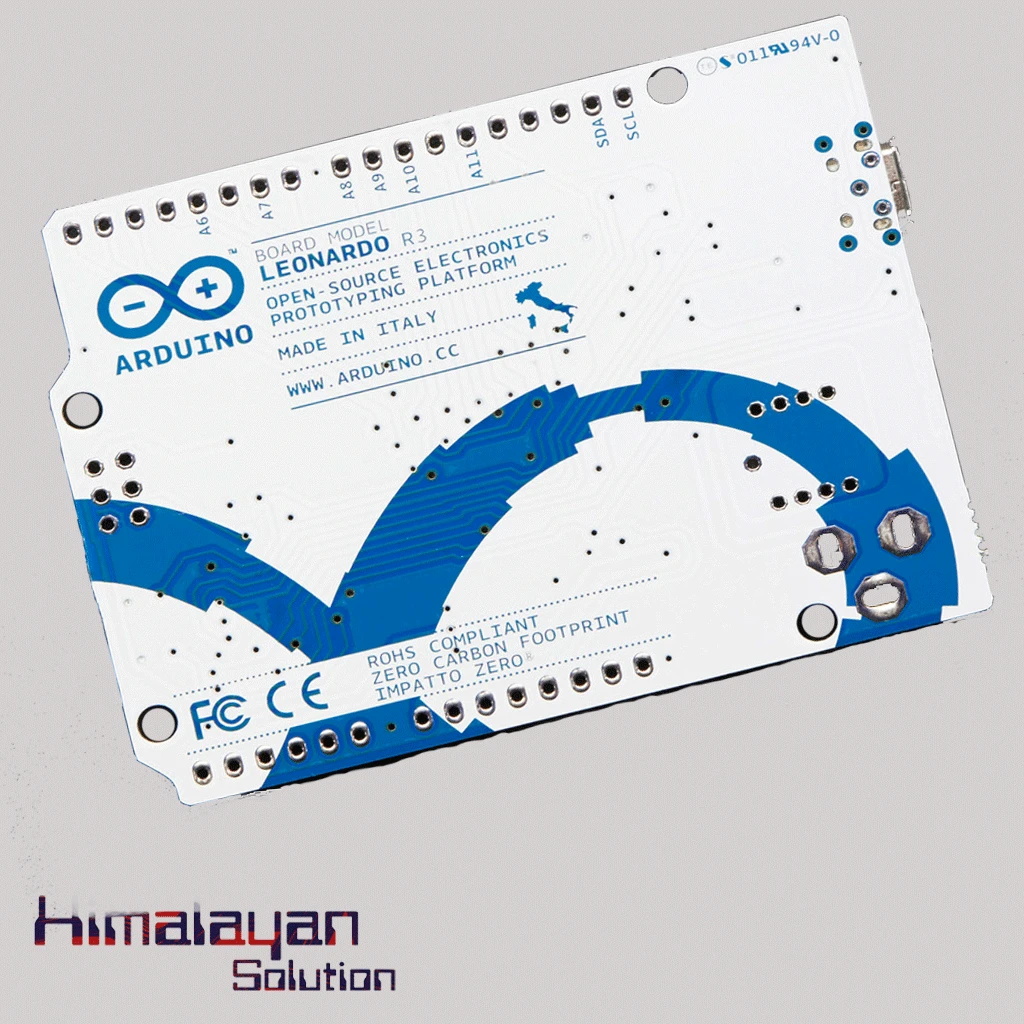

Arduino Leonardo

The Arduino Leonardo is a microcontroller board based on the ATmega32u4 that includes  20 digital input/output pins  where  7 can be used as PWM outputs and 12 as analog inputs , a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button.  We can simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to operate . The Leonardo has built-in USB communication that eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard.   The drivers are  automatically installed plugging with an USB cable to the   PC. The software  can be found  in the official site .

In Category:
  • Arduino Board
  • Availability: Out Of Stock

    Microcontroller ATmega32u4
    Operating Voltage 5V
    Input Voltage (Recommended) 7-12V
    Input Voltage (Limits) 6-20V
    Digital I/O Pins 20
    PWM Channels 7
    Analog Input Channels 12
    DC Current Per I/O Pin 40 mA
    DC Current for 3.3V Pin 50 mA
    Flash Memory 32 KB (ATmega32u4)
    SRAM 2.5 KB (ATmega32u4)
    EEPROM 1 KB (ATmega32u4)
    Clock Speed 16 MHz
    Length 68.6 mm
    Width 53.3 mm
    Weight 20 g
