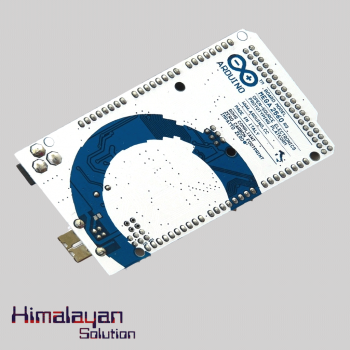

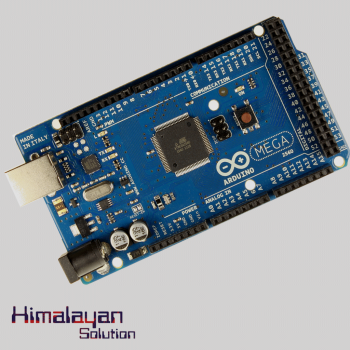

Arduino Mega 2560

Arduino Mega2560  is fitted with the ATMEGA16U2 chip which is an open source program. The power source is selected automatically either  from USB connection or external power supply. The ATmega2560 has 256 KB of flash memory for storing code . It contains automatic reset software inbuilt with stronger reset circuit.

In Category:
  • Arduino
  • Boards
  • Availability: In Stock

    Microcontroller ATmega2560
    Operating Voltage 5V
    Input Voltage (Recommended) 7-12V
    Input Voltage (Limit) 6-20V
    Digital I/O Pins 54 (of which 15 provide PWM output)
    Analog Input Pins 16
    DC Current Per I/O Pin 20 mA
    DC Current for 3.3V Pin 50 mA
    Flash Memory 256 KB of which 8 KB used by bootloader
    SRAM 8 KB
    EEPROM 4 KB
    Clock Speed 16 MHz
    Size 101.52 X 53.3 mm
    D/C PCRCS02

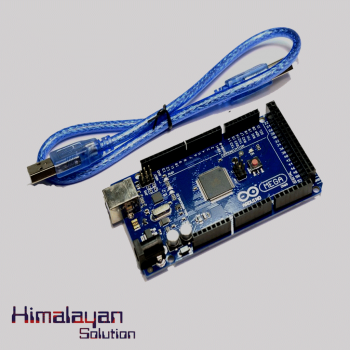

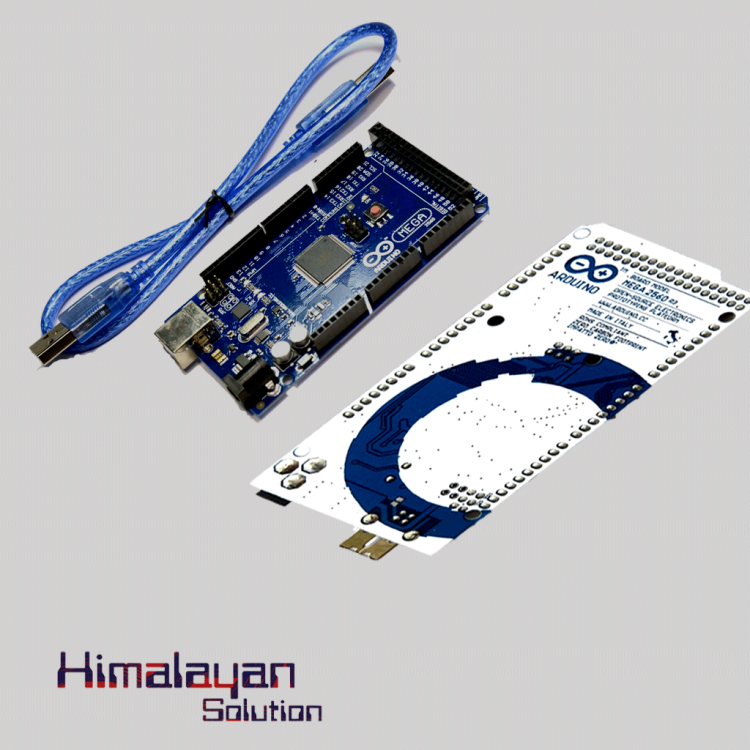

    Arduino Mega 2560: come with set product and cable

    device -1

    cable -1
