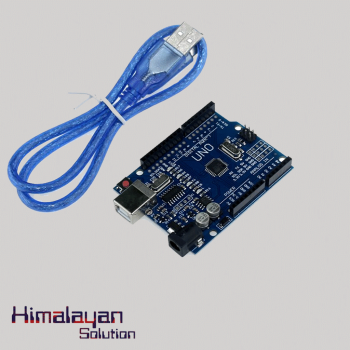

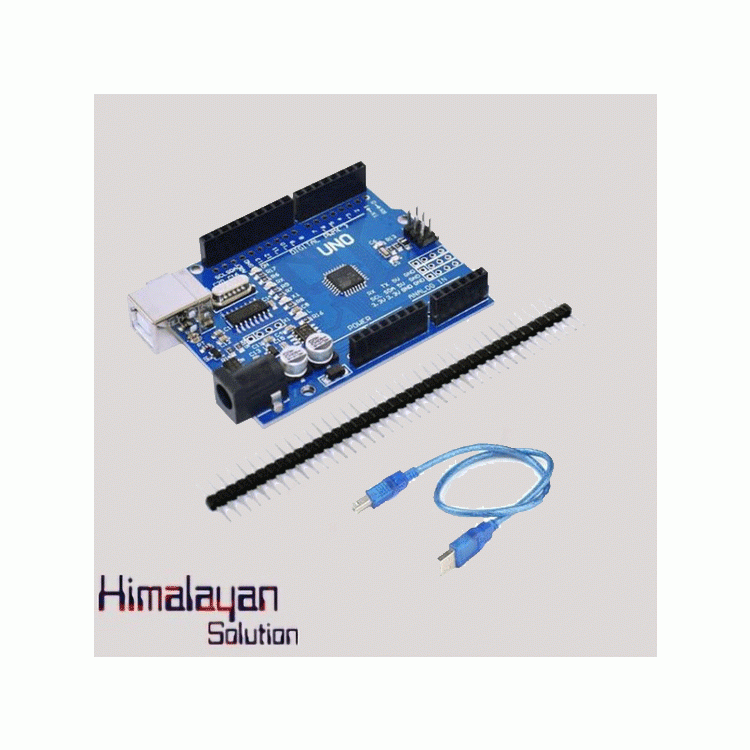

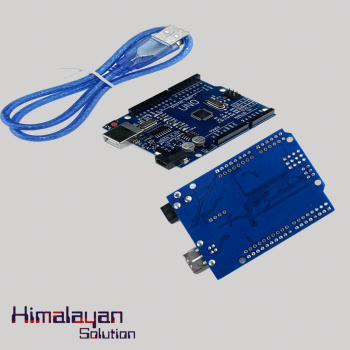

Arduino UNO R3 Clone
Arduino UNO R3 clone is made in china instead of Italy.There are two analog-input pins : A6 and A7 that are not found on traditional UNO boards. You will need to install a driver for your computer to recognize the on-board CH340G USB to serial converter.R3 clone has a USB connector for easy connection to computers for programming including a power jack, an ICSP header and a reset button.
Availability: In Stock
| Microcontroller | ATmega328P-AU |
| Operating Voltage | 5V |
| Input Voltage (Recommended) | 7-12V |
| Input Voltage (Limits) | 6-20V |
| Digital I/O Pins | 14 (Of Which 6 Provide PWM Output) |
| Analog Input Pins | 6 |
| DC Current Per I/O Pin | 40 mA |
| Flash Memory | 32 KB |
| SRAM | 2 KB |
| EEPROM | 1 KB |
| Clock Speed | 16 MHz |
| Weight | 21g |
| 5V Output Max Current | 800 mA |
| 3.3V Output Max Current | 180 mA |
