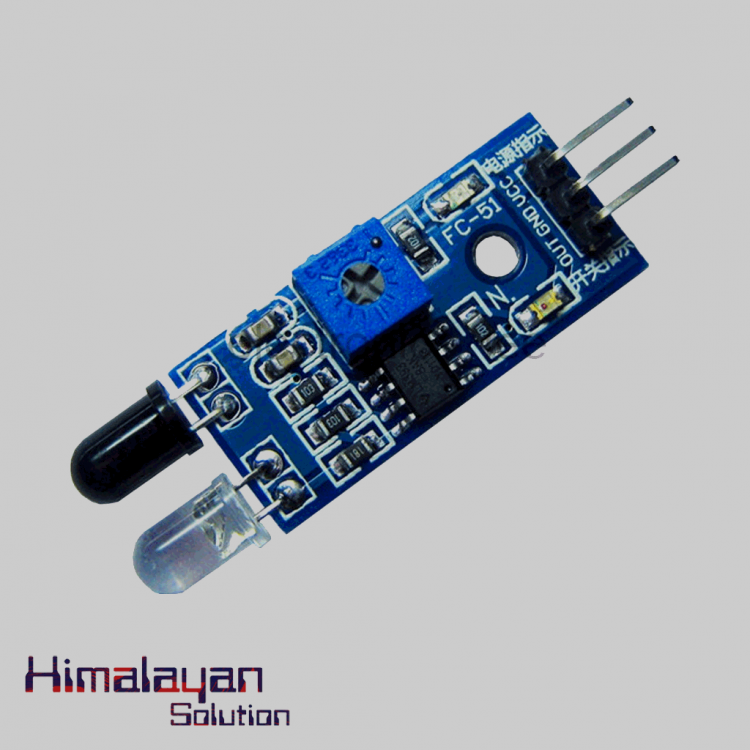

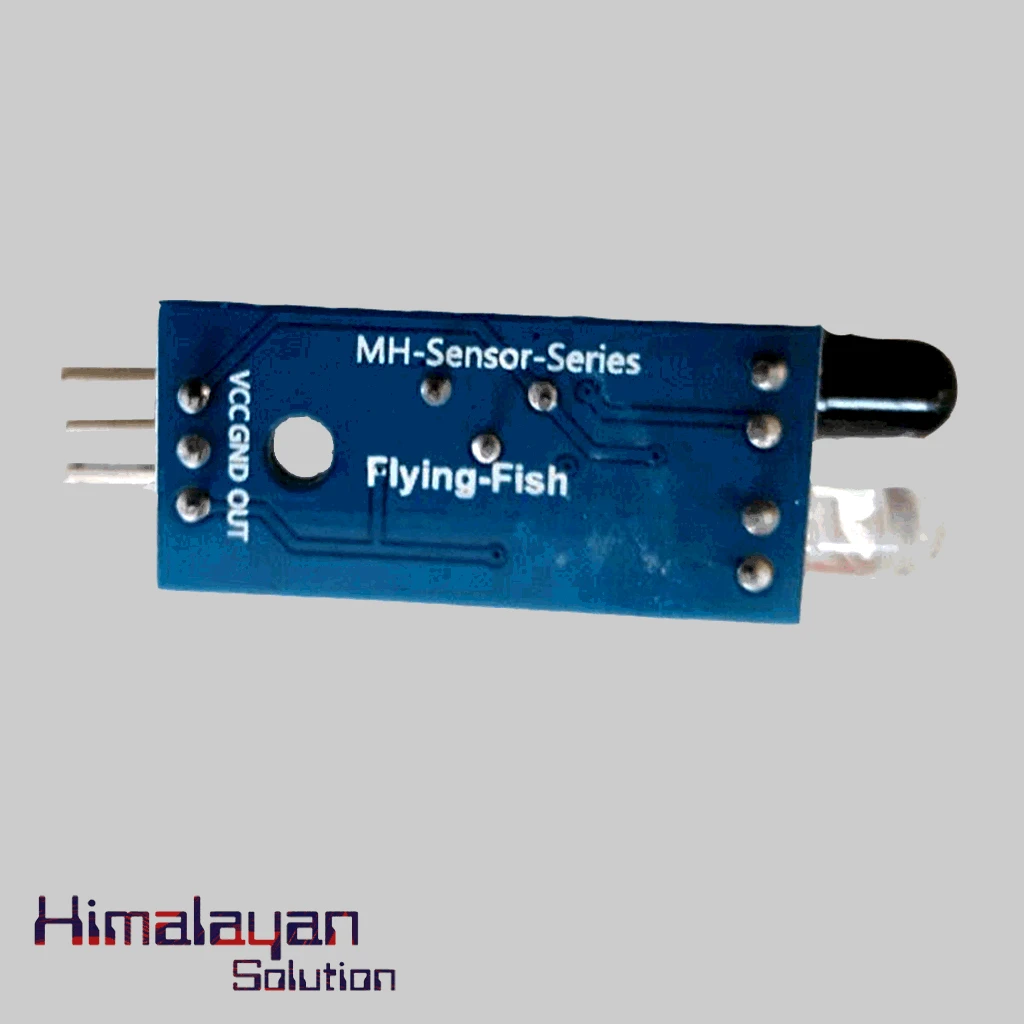

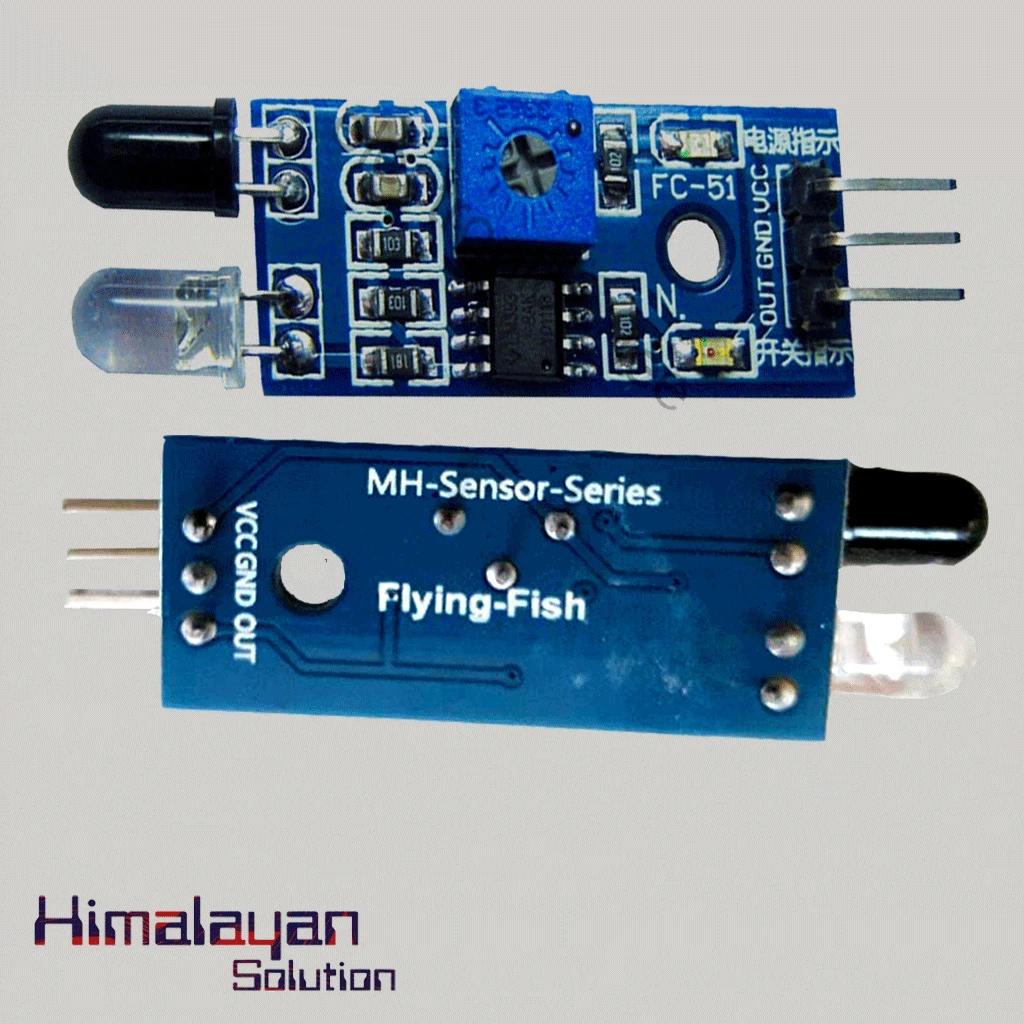

Infrared Sensor (IR ) Module

Infrared Sensors (IR) Module  is used to detect presence of any obstacle in front of the sensor module. It  has built-in IR transmitter and IR receiver , on board potentiometer .. Even in low light or in complete darkness the sensor has very good and stable response. It can be used for Obstacle avoidance in robots , Security systems and other object detection.It is stable and accurate with male header for easy connection.

In Category:
  • Sensors
  • Location
  • Proximity
  • Availability: Out Of Stock

    Detection Angle 35 °
    Operating Voltage 3.0V – 6.0V
    Detection Range 2cm – 30cm (Adjustable Using Potentiometer)
    Active Output Level Outputs Low Logic Level When Obstacle is Detected
    In-Active Output Level Outputs High Logic Level When Obstacle is Not Detected
    Current Consumption 3.3V (23 mA ) / 5.0V(43 mA)
    Size 4.5cm x 1.4 cm x 0.7cm
