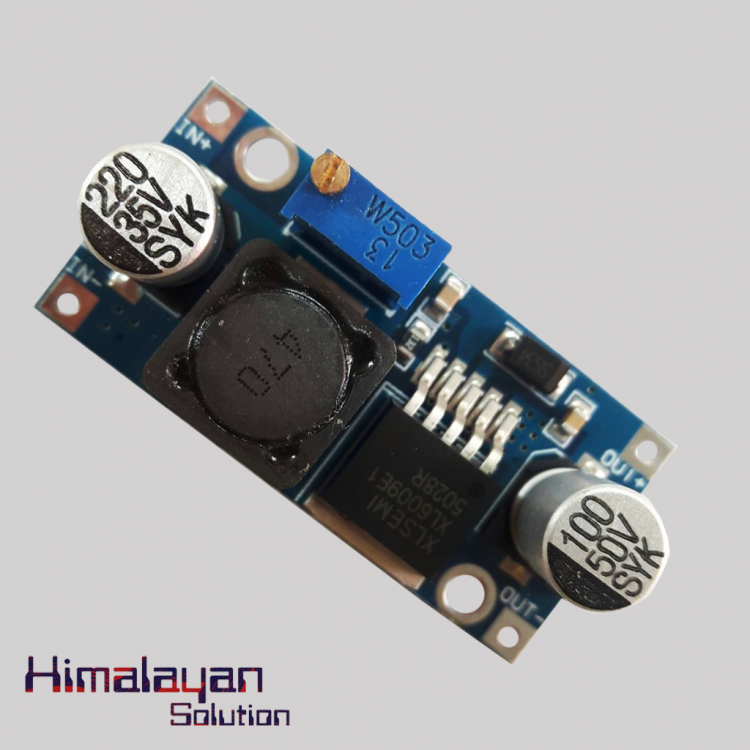

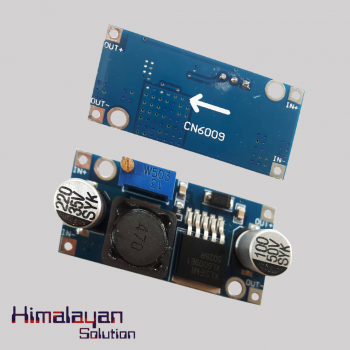

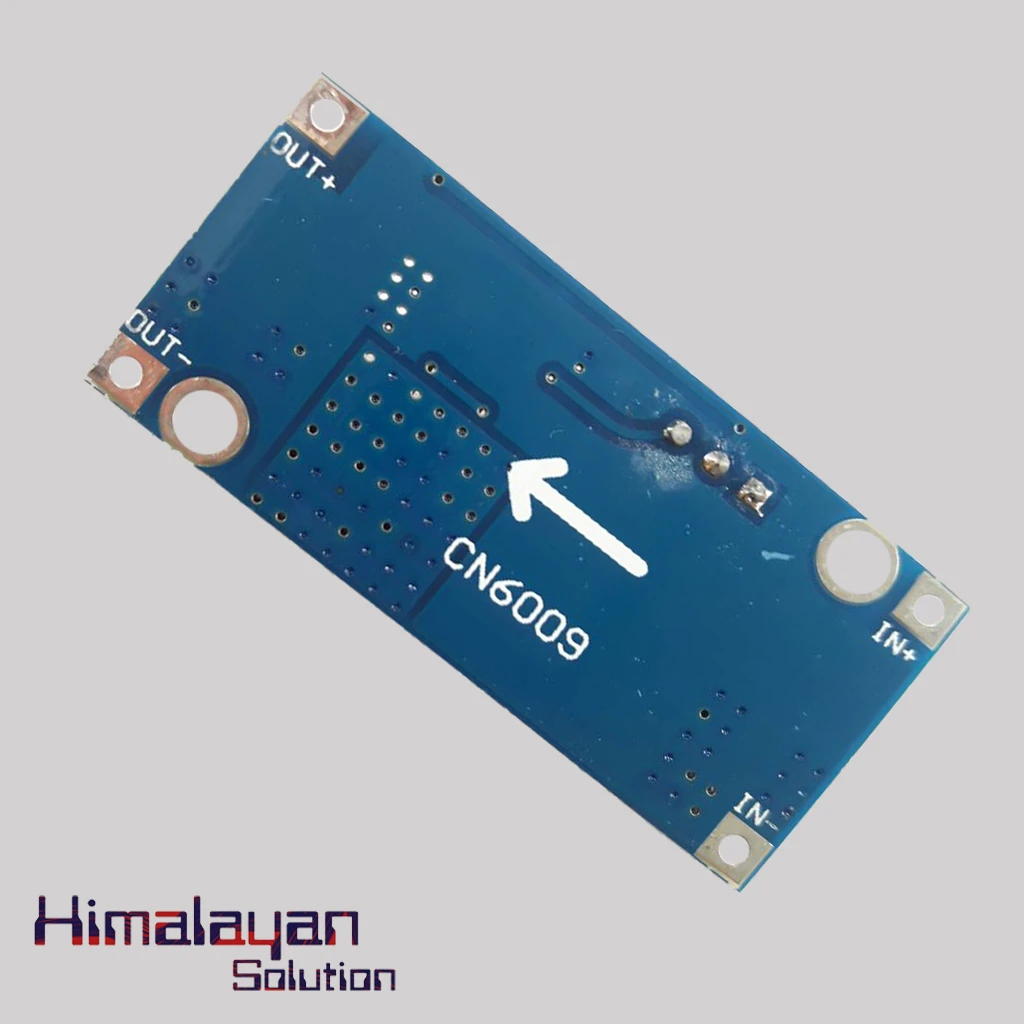

4A Boost Module
The 4Amp Boost Module is a XL6009 DC-DC Step-up module with adjustable booster power supply module. It has high frequency switching of 400MHz which can use the small capacity of the filter capacitor that can achieve very good effect, ripple smaller and smaller. It can be suitable for various applications like: - EPC/Notebook car adapter, Automotive and industrial boost/buck-boost/ inverting converters, Portable electronic equipments and many more.
Availability: In Stock
| Name | 4Amp Boost Module |
| Type | Switching Type Voltage Booster |
| Input Voltage Range | 3 to 34 V |
| Output Voltage | Continuous Adjustable (4-35 V) |
| Output Current (Max) | 4A |
| Input Current | 3A (Max) |
| Input Methods | IN + Input Is Level, IN-Input Negative |
| Output Way | OUT + Output Is Level, OUT-Output Negative |
| Operating Temperature | -40 to +85 C |
| Adjustment | 25-Turn Trimpot |
| Efficiency | up to 94% |
| Switching Frequency | 400 KHz |
| Size | 43 mm X 21 mm X 14mm |
| Weight | 11.79 g |
