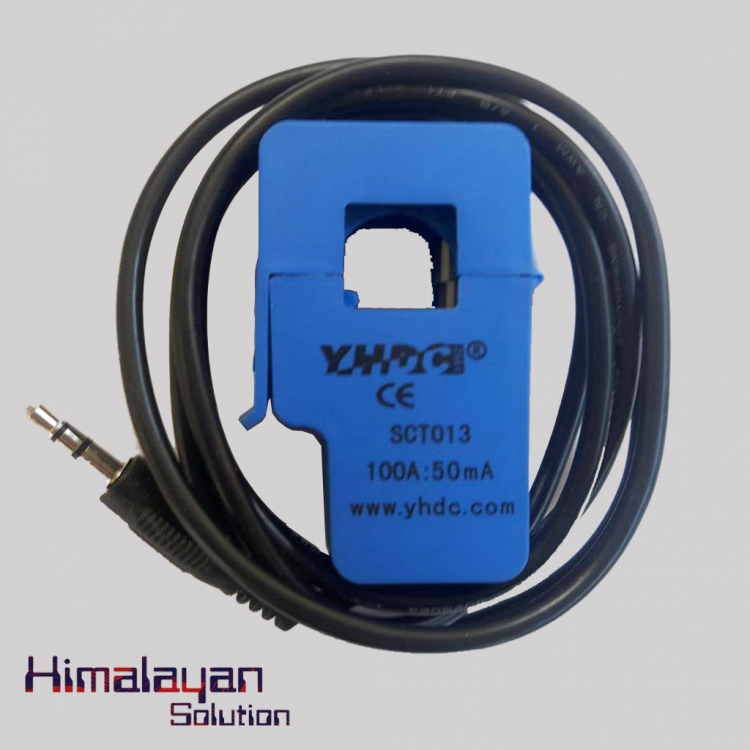

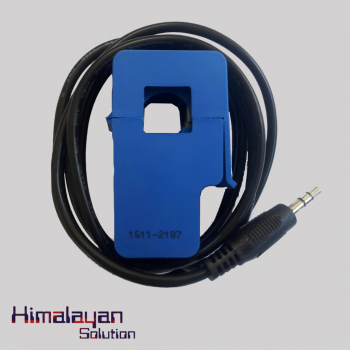

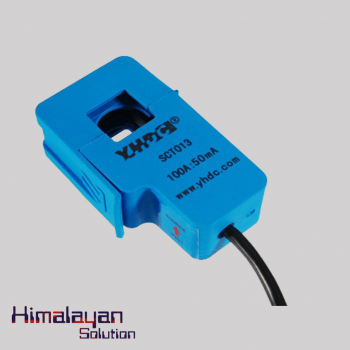

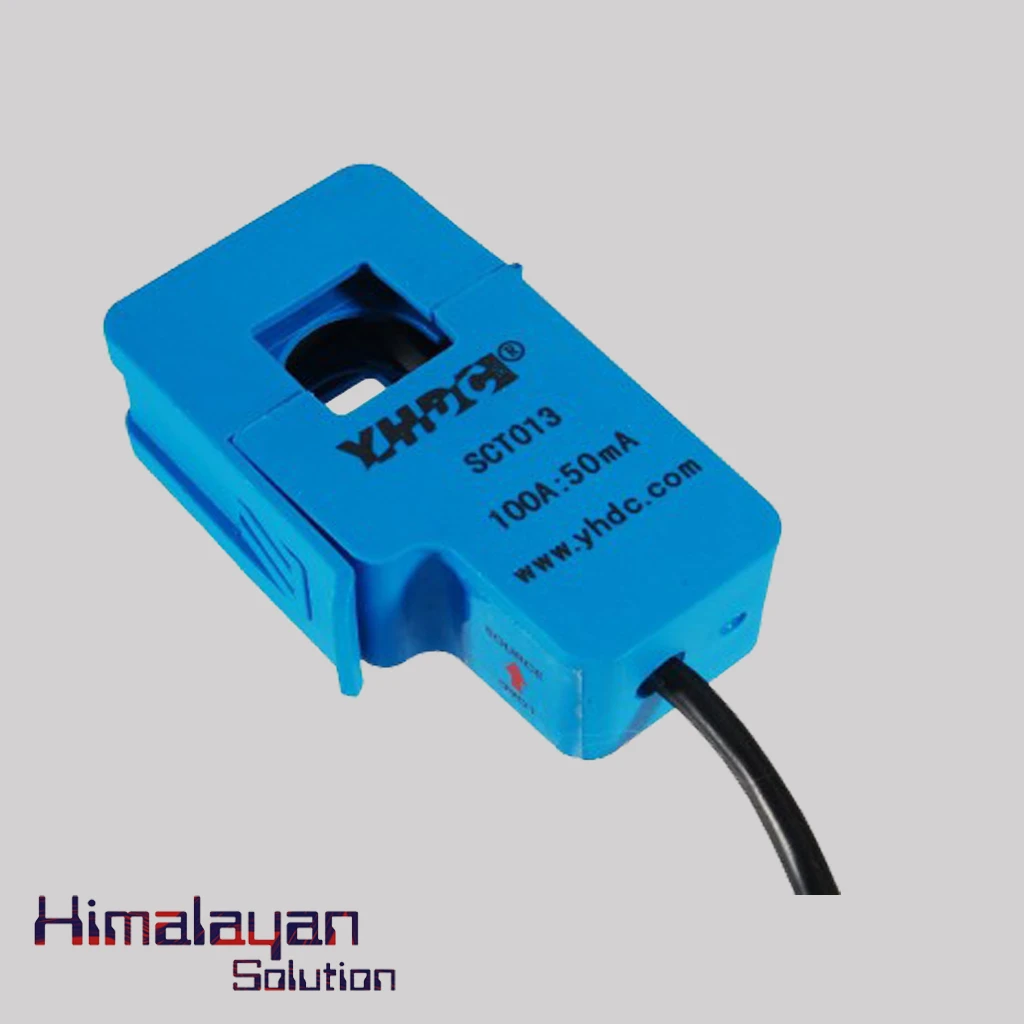

100A Split-Core Current Transformer
The 100A Split Core Current Transformer is a non-invasive current transformer. It helps to build our own personal energy monitor. It has input current rating of 100A and output current rating of 50mA. It is suitable for the current measuring monitoring and protection process. It is applicable in various fields like: - AC motors, lighting equipment, air compressors and many more.
Availability: In Stock
| Name | 100A Split Core Current Transformer |
| Core Material | Ferrit |
| Outer Material | Plastic |
| Input Current Rating | 100A |
| Output Current Rating | 50mA |
| Size | 13mm x 13mm |
| Output Connector | 3.5mm |
| Anti Flame Rate | UL94-V0 |
| Dielectric Strength | 6000V AC / 1 min |
| Operating Temperature | -25 ° C ~ 70 ° C |
