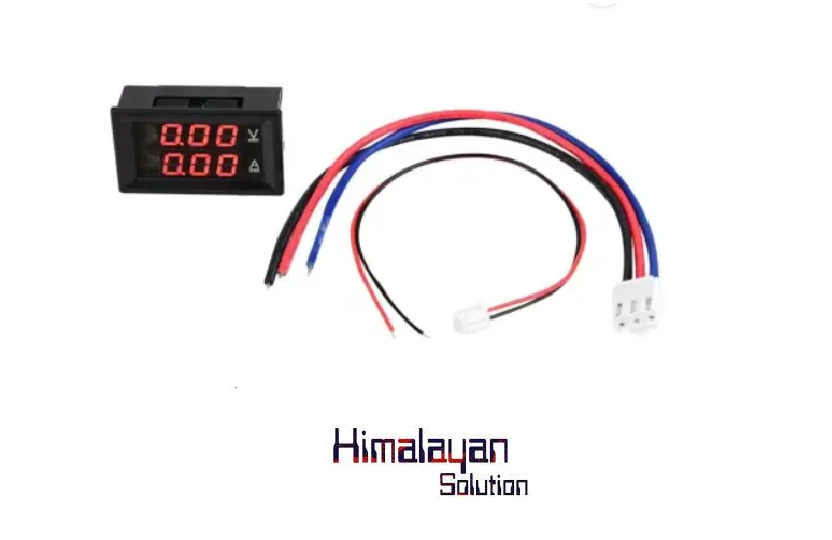

Dual display voltage and current meter
Voltage measurement range: 0.0V-100V Max.
Current test range: 0-999mA, 0-10A, 0-50A, 0-100A (4range optional)
Power supply range: 4.5V ~ 24V
Working current: < 20mA
Voltage error: ±0.1% Current error: ±1%
External shunt specifications: 75 milli volt
Refresh rate: 300mS
Display method: 2 by 3, 0.28 "7-Seg LED
Display colour: Red = V, Blue = A

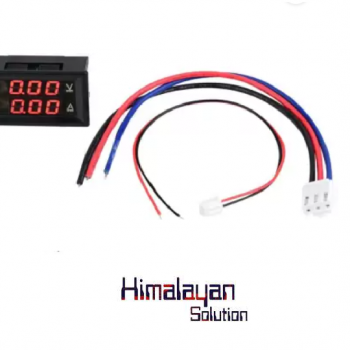

Lead length: 15cm

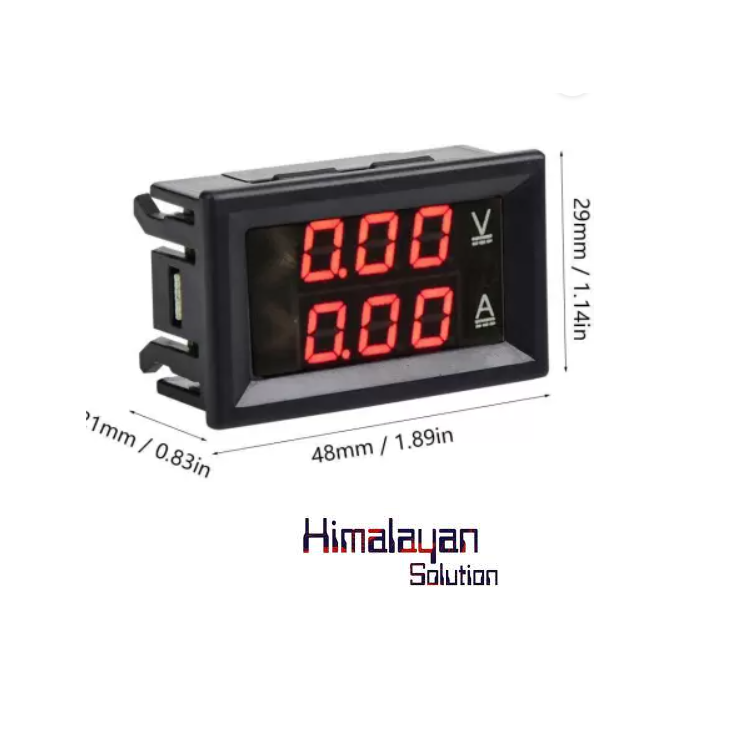

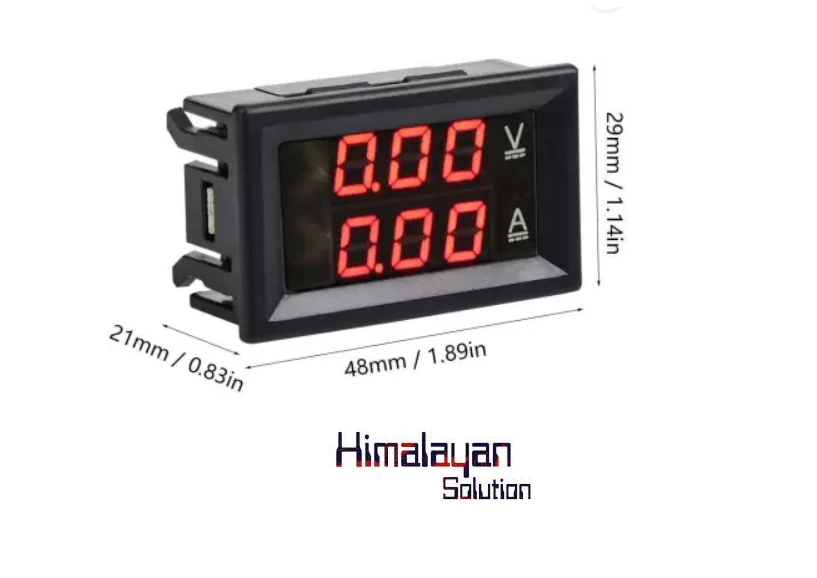

Dimensions: L=48 x H=29 x T=22 mm
Mounting holes: 46 x 27 mm
Operating temperature: -10℃~65℃
