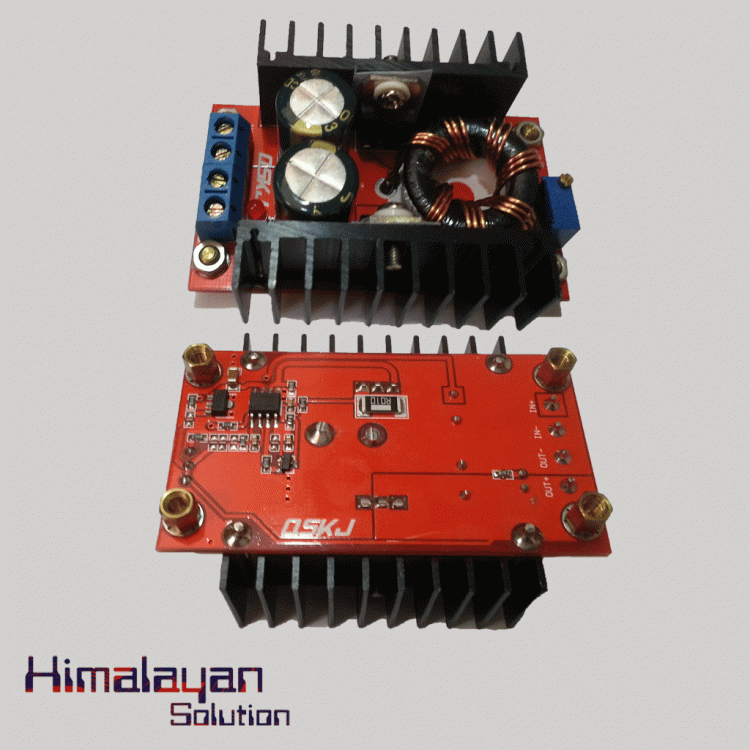

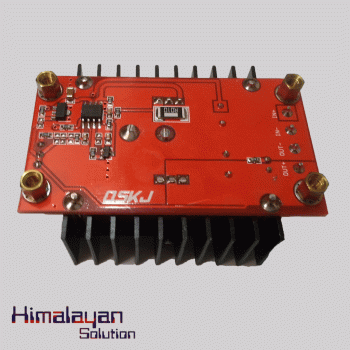

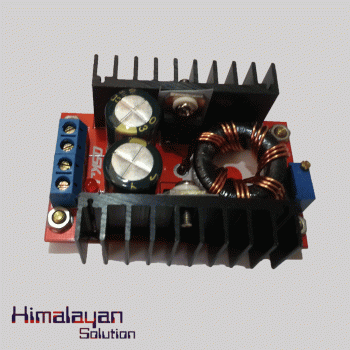

150 W Boost Module
The Boost module allows to step up the input voltage to as low as 10V and on the other hand sets the output voltage to 12V to 35V. The ouput voltage will be greater than the input voltage. The boost module also contains Constant Current as well as Under Voltage Protection circuits.
Availability: In Stock
| Name | 150W Boost Module |
| Input Voltage | 10V to 32V DC |
| Output Voltage | 12V to 35V DC (Adjustable) |
| Output Current | 10A MAX |
| Input Current | 16A MAX (Higher than 10A strengthen heatsink) |
| Output Ripple | 2% MAX |
| Output Power | Natural Cooling 100W MAX, Strengthening Cooling 150W MAX |
| Conversion Efficiency | 94% |
| Working Temperature | -40° to 85° C |
| Full-Load Temperature | 45° |
| No-Load Current | 25 mA typical |
| Dynamic Response Speed | 200 uS 5% |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Short Circuit Protection | None |
| Input Reverse Protection | None |
