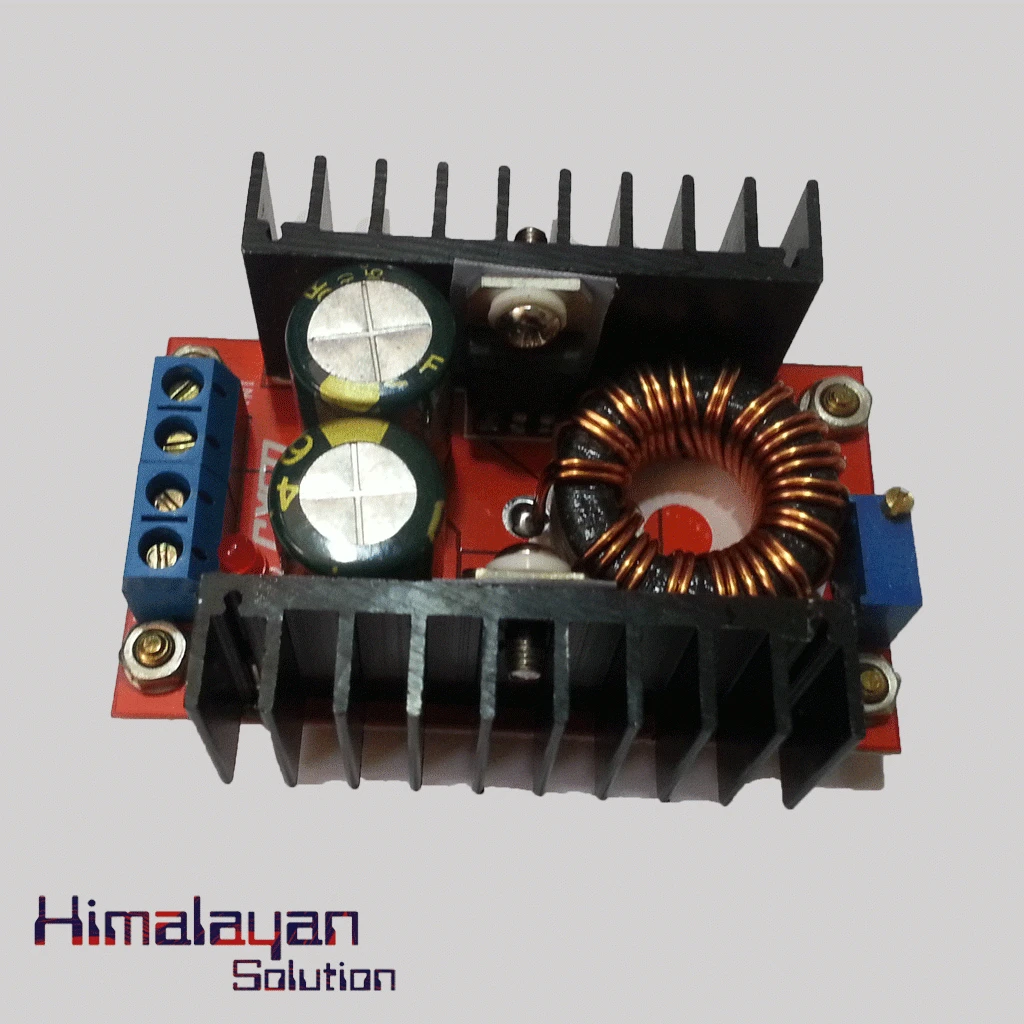

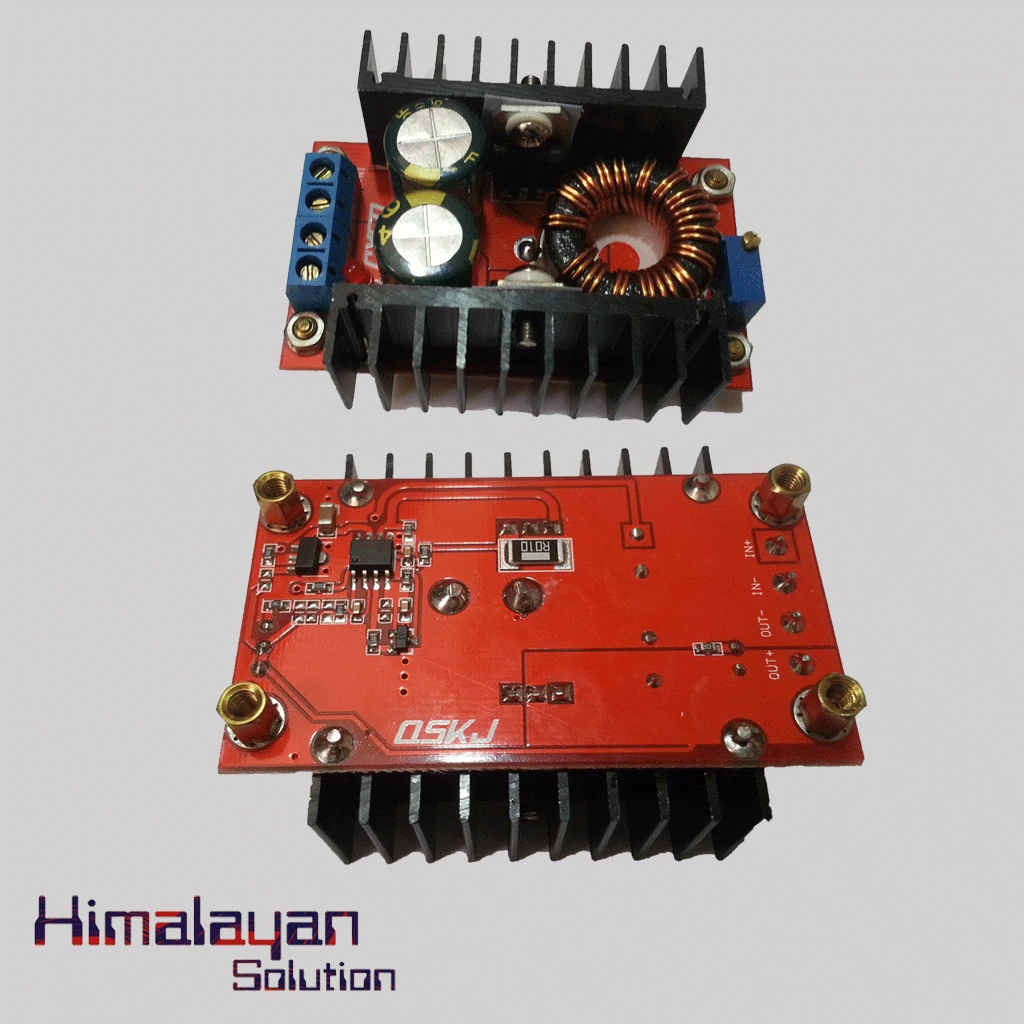

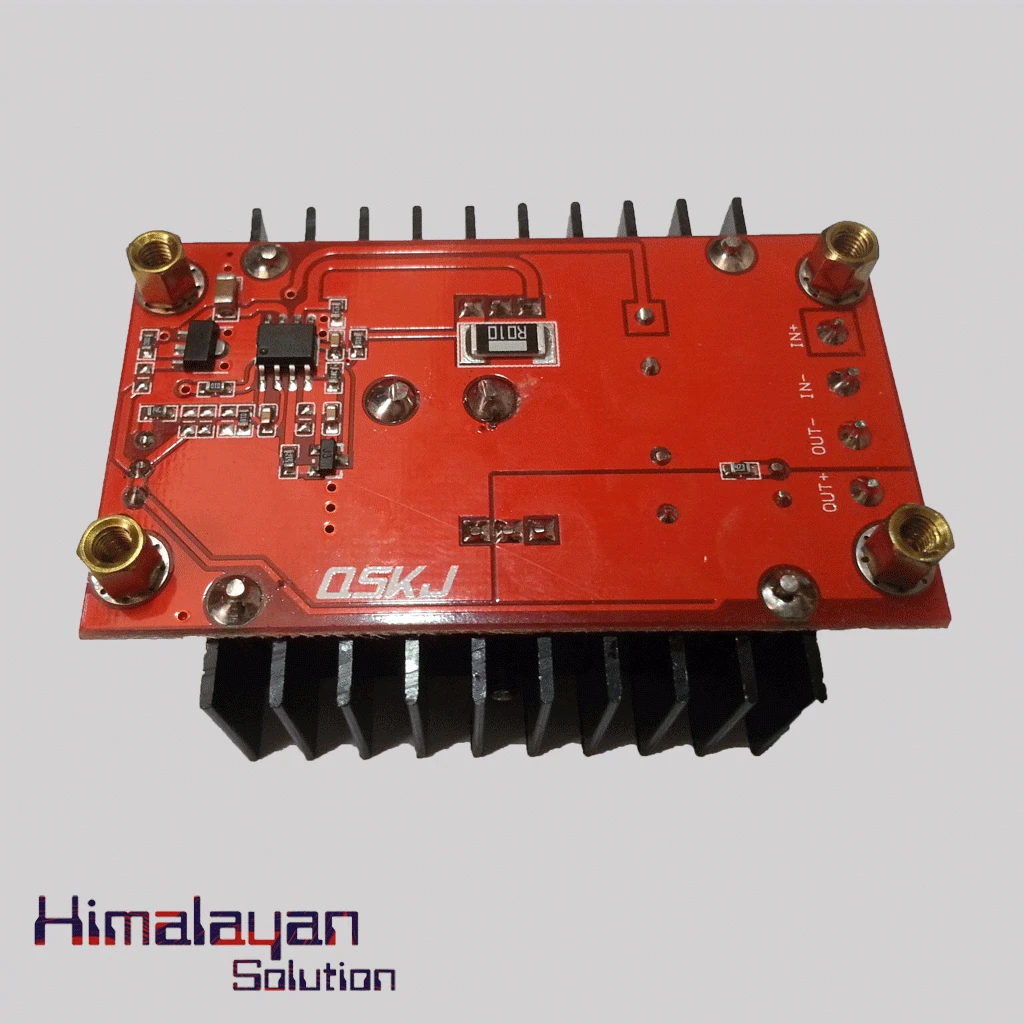

120 W Boost Module
The Boost module allows to step up the input voltage to as low as 10V and on the other hand sets the output voltage to 35V to 60V. The ouput voltage will be greater than the input voltage.
Availability: In Stock
| Name | 120 W Boost Module |
| Input Voltage | 10V to 32V DC |
| Output Voltage | 35V to 60V DC (Adjustable) |
| Output Current | 5A MAX |
| Input Current | 16A MAX (Higher than 10A need cooling) |
| Output Ripple | 2% MAX |
| Working Temperature | -40° to 85° C |
| Full-Load Temperature | 45° |
| No-Load Current | 25 mA typical |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Dynamic Response Speed | 200 uS 5% |
| Short Circuit Protection | None |
| Size | 2.60*1.85*1.1 Inch (L*W*H) |
| Weight | 66 g |
