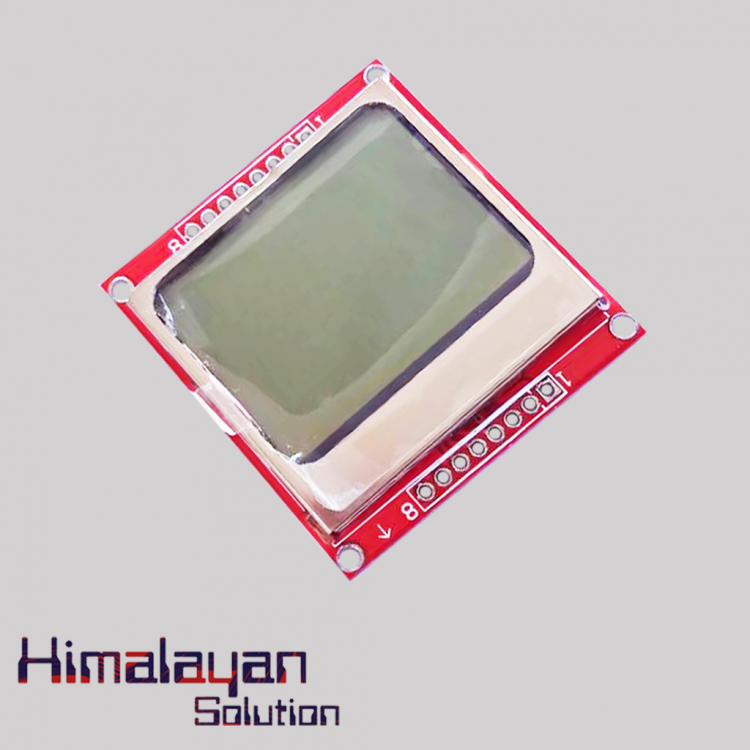

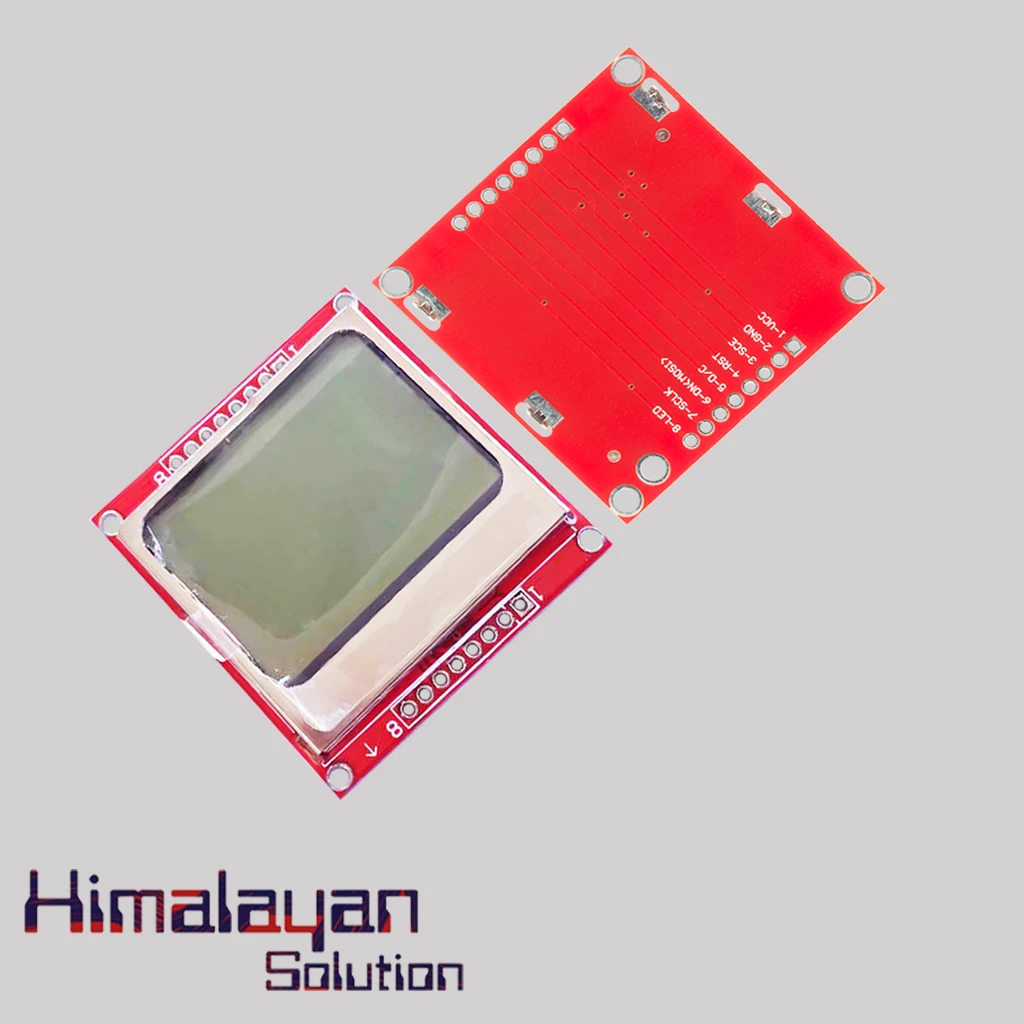

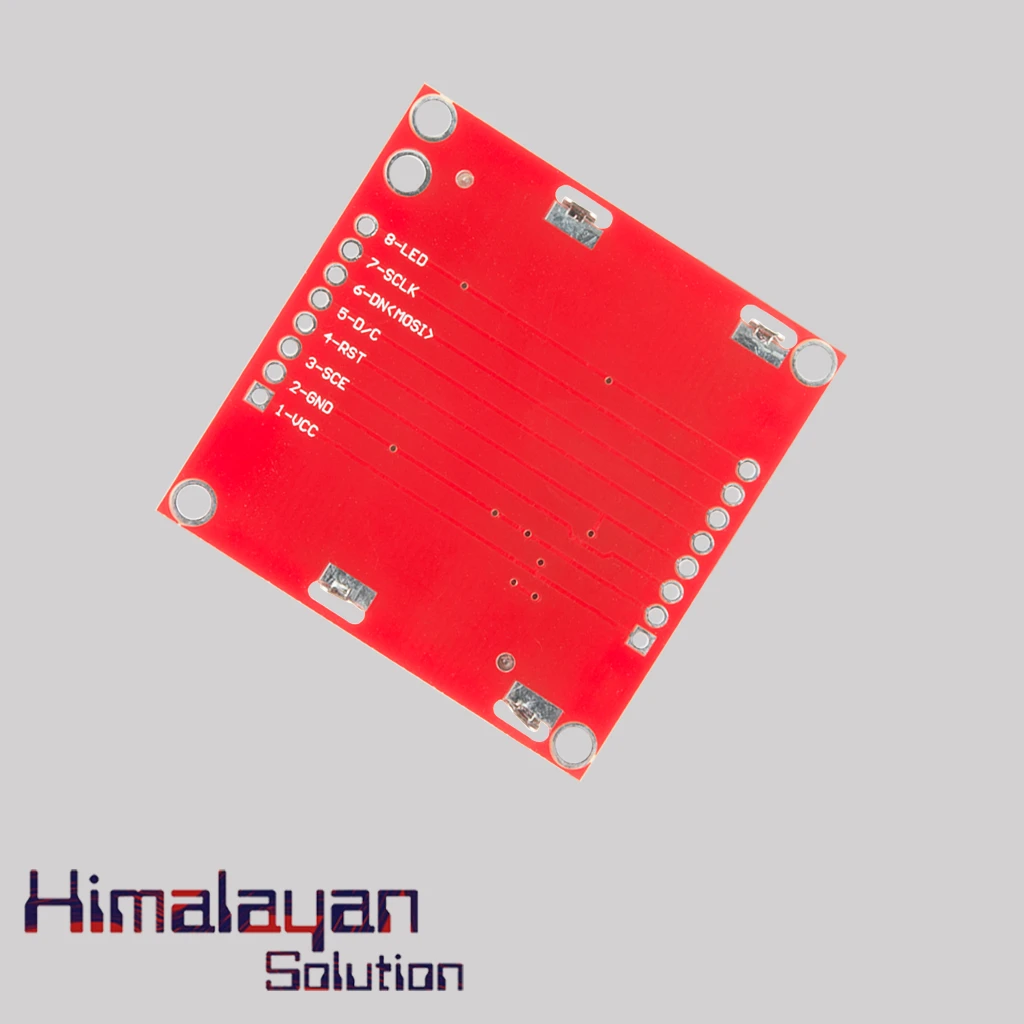

Nokia LCD

The Nokia LCD is a Basic Graphic LCD Screen Module for applications. It has various features like: - Built-in backlight, Easy communication with common MCU control, Uses Philips PCD8544 LCD controller with SPI interface, Graphic LCD module with 84 x 48 pixel resolution (i.e. 48 rows and 84 columns), Compatible to Nokia 5110, 3310 LCD and many more. It also can be great choice for DIY projects as well.

In Category:
  • LCD & Display
  • Graphic LCD
  • Availability: In Stock

    Name Nokia LCD
    Communication Interface SPI Serial Connection
    Operating Voltage Range 2.7 V To 3.3 V
    Operating Current < 5 mA (Backlight OFF), < 20 mA (Backlight ON)
    Operating Temperature Range 0°C To 50°C
    Storage Temperature -10°C To 70°C
    LCD Controller PCD8544
    Size (L x W x H) 45 X 45 X 5 mm
