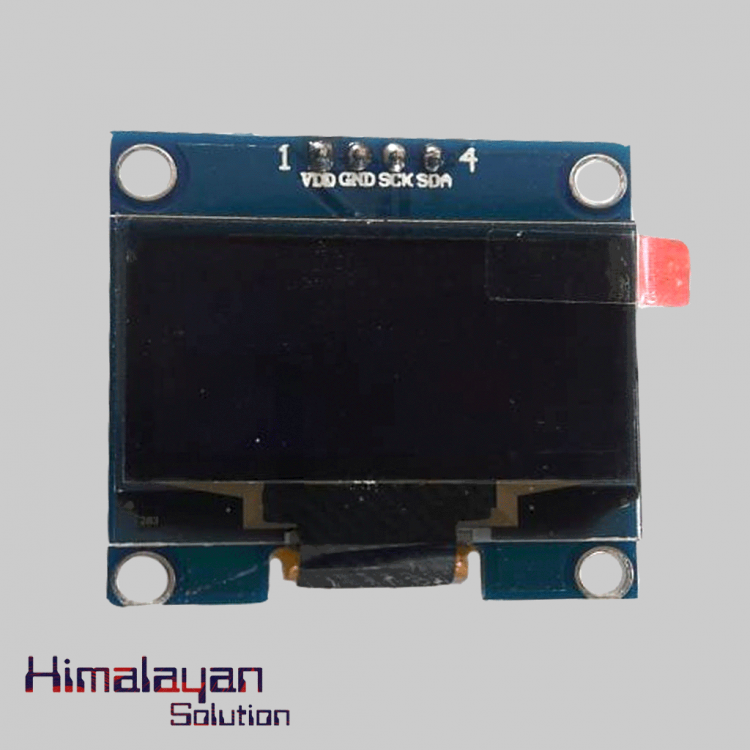

0.96 inch Oled Display
The 0.9 inch OLED display use SSD1306 driver chip with 128x64 dot matrix display module. OLED screens has high brightness, self-emission, high contrast ratio, wide temperature range, wide viewing angle, and low power consumption. This OLED can be used for smart watch, MP3, DIY projects and many more.
Specifications
- Resolution: 128 x 64
- Visual Angle: >160°
- Input Voltage: 3.3V ~ 6V
- Compatible I/O Level: 3.3V, 5V
- Mini Size: 2.7 x 2.8cm
- Only Need 2 I/O Port Control
- Full Compatible with Arduino
- Working temperature: -30°C ~ 70°C
- Module volume: 32 x 35.5 x 4mm
Package Includes:
- 1 x 128 x 64 0.96 Inch OLED Display Module I2c Interface - Arduino Compatible
| OLED Driver IC | SSD1306 |
| Screen Size | 0.96 inch |
| Resolution | 128 x 64 |
| Visual Angle | >160° |
| Input Voltage | 3.3V ~ 6V |
| Compatible I/O Level | 3.3V, 5V |
| Mini Size | 2.7 x 2.8cm |
| I2C Interface | 3.3V / 5V |
| Low Power Consumption | 0.04W During Normal Operation |
| Operating Temp | -20~70℃ |
| Storage Temp | -30~80℃ |
| Communication | I2C |
| Color | Blue |
