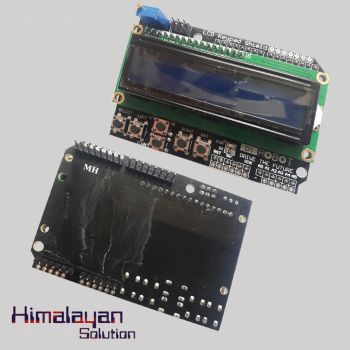

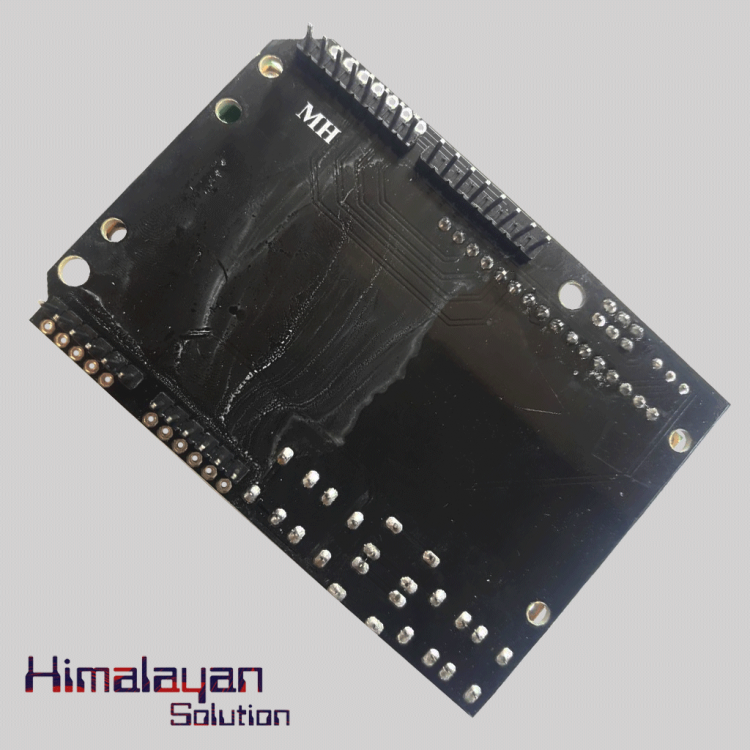

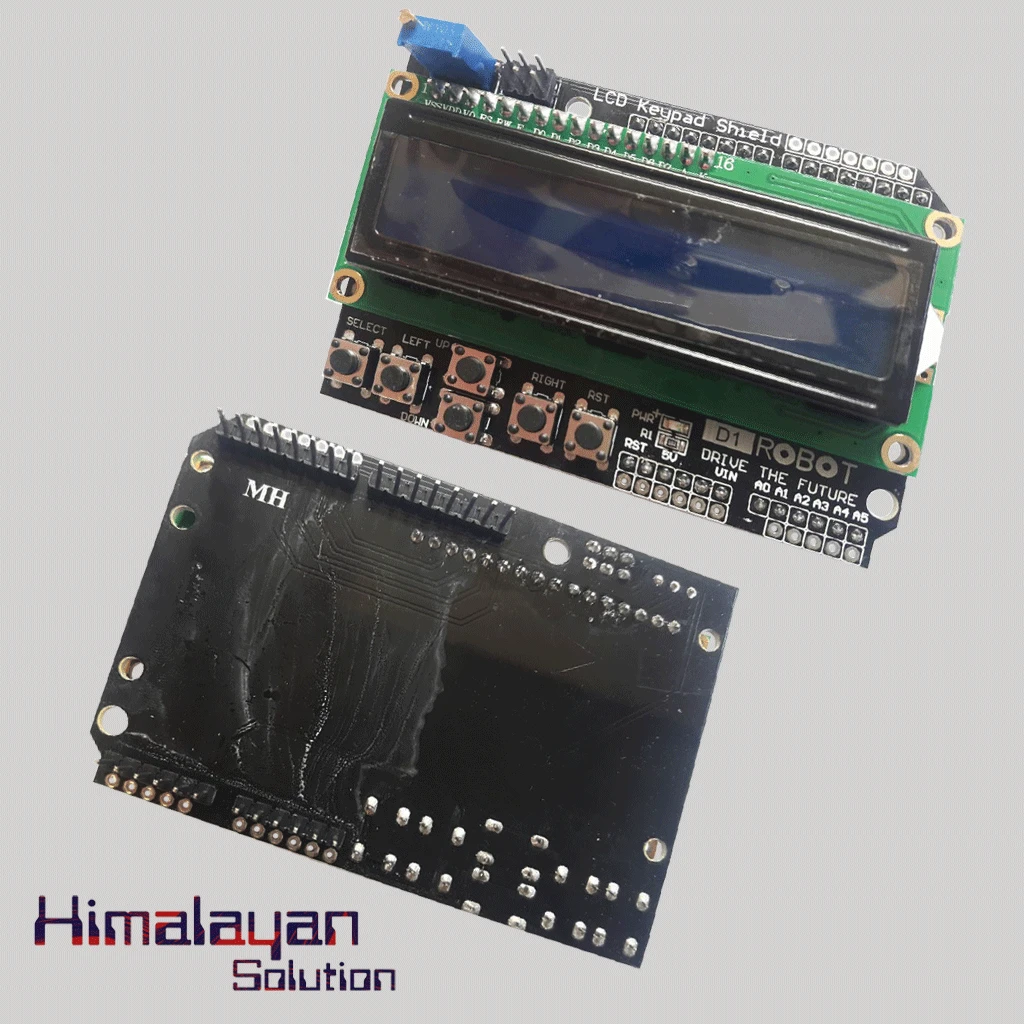

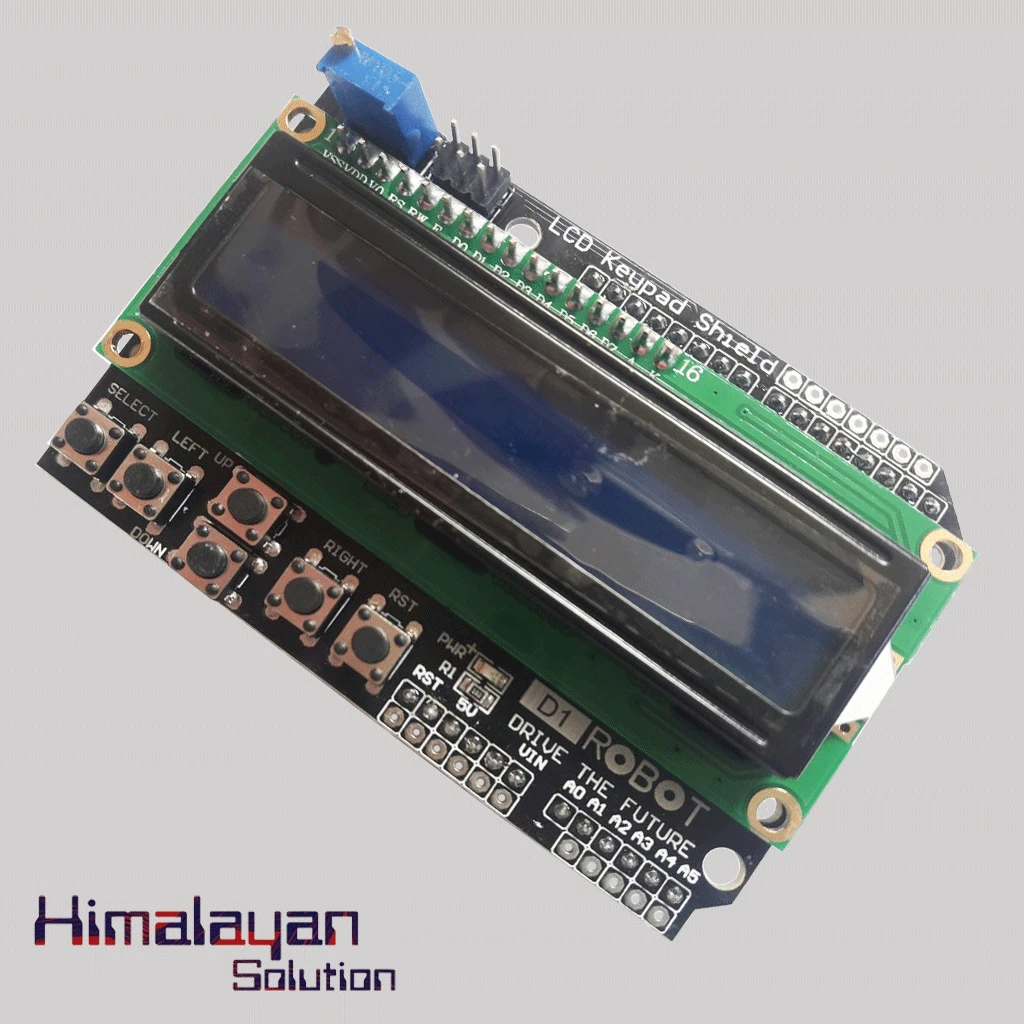

Lcd Keypad Shield

The LCD Key shield used 16 by 2 LCD display.  It is developed for arduino compatible boards. There are 5 keys and 1 reset button. The keys are used for up, down right, left and select. The backlight is adjusted with integrated the potentiometer. It use 4 bit Arduino lcd library. It can be used as display unit.

In Category:
  • LCD & Display
  • Accessories
  • Shields
  • Availability: In Stock

    Name Lcd Keypad Shield
    No Of Keys 6
    White Character 1602
    Lcd Module 16 by 2
    Operating Voltage 5V
    Size 80 x 58 mm
    Pins Used D4-D7     LCD Data Transmission
    Pins Used D8       Register Select
    Pins Used D9       Enable Pin
    Pins Used D10 Backlight Control
