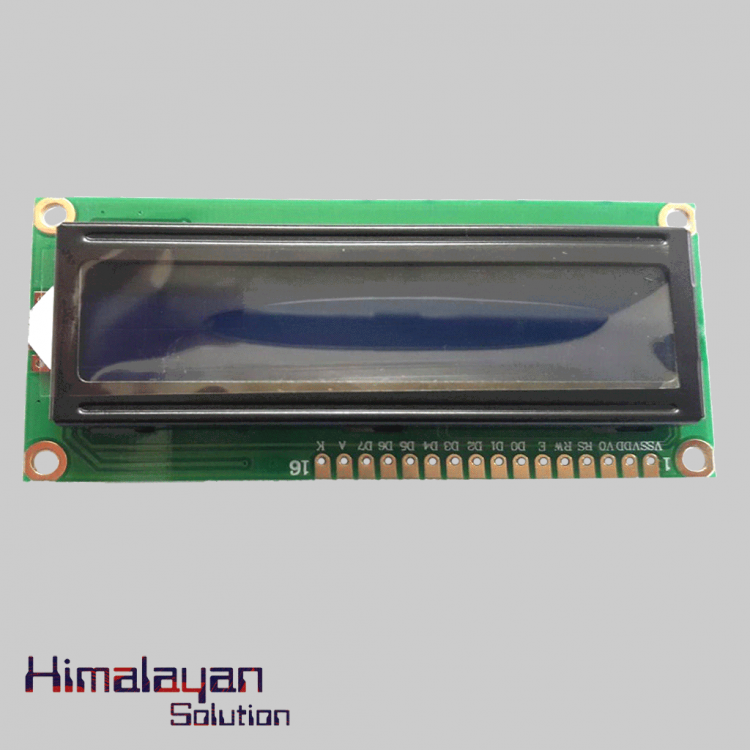

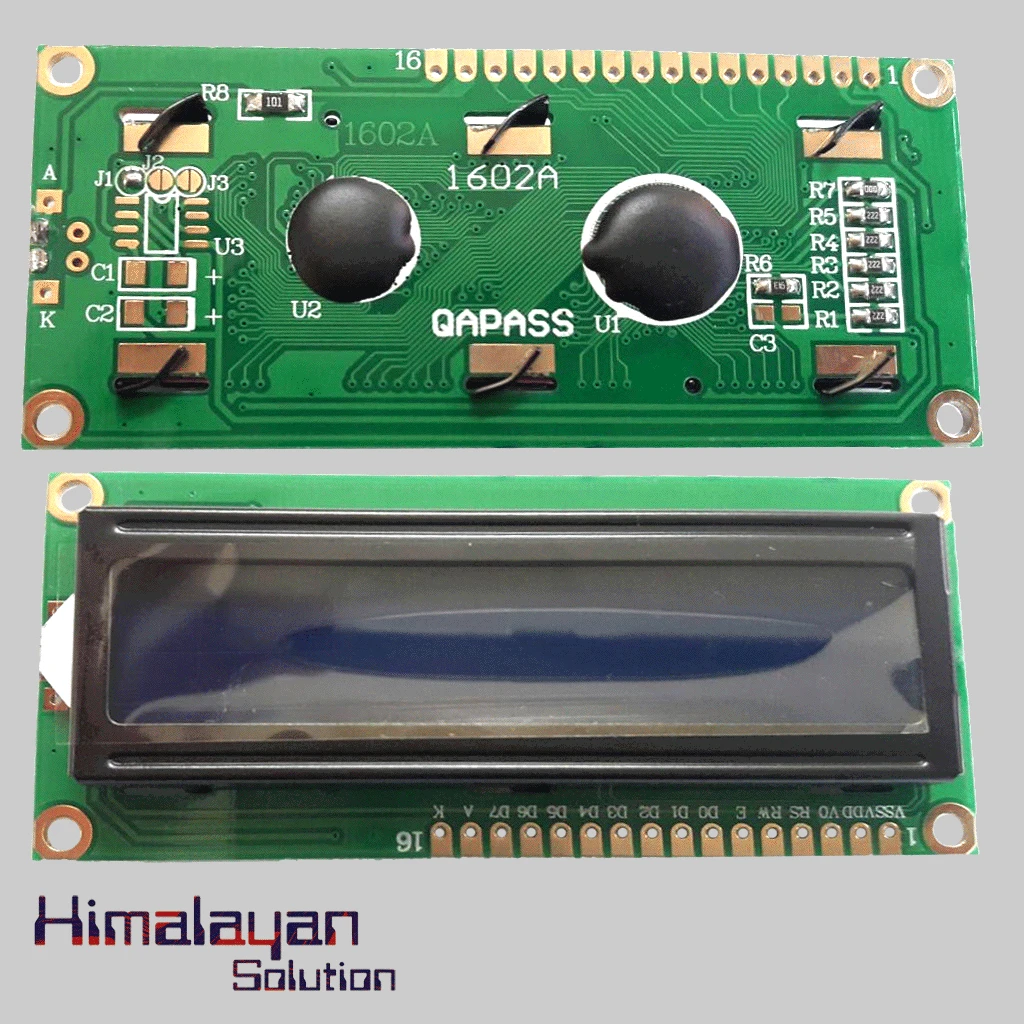

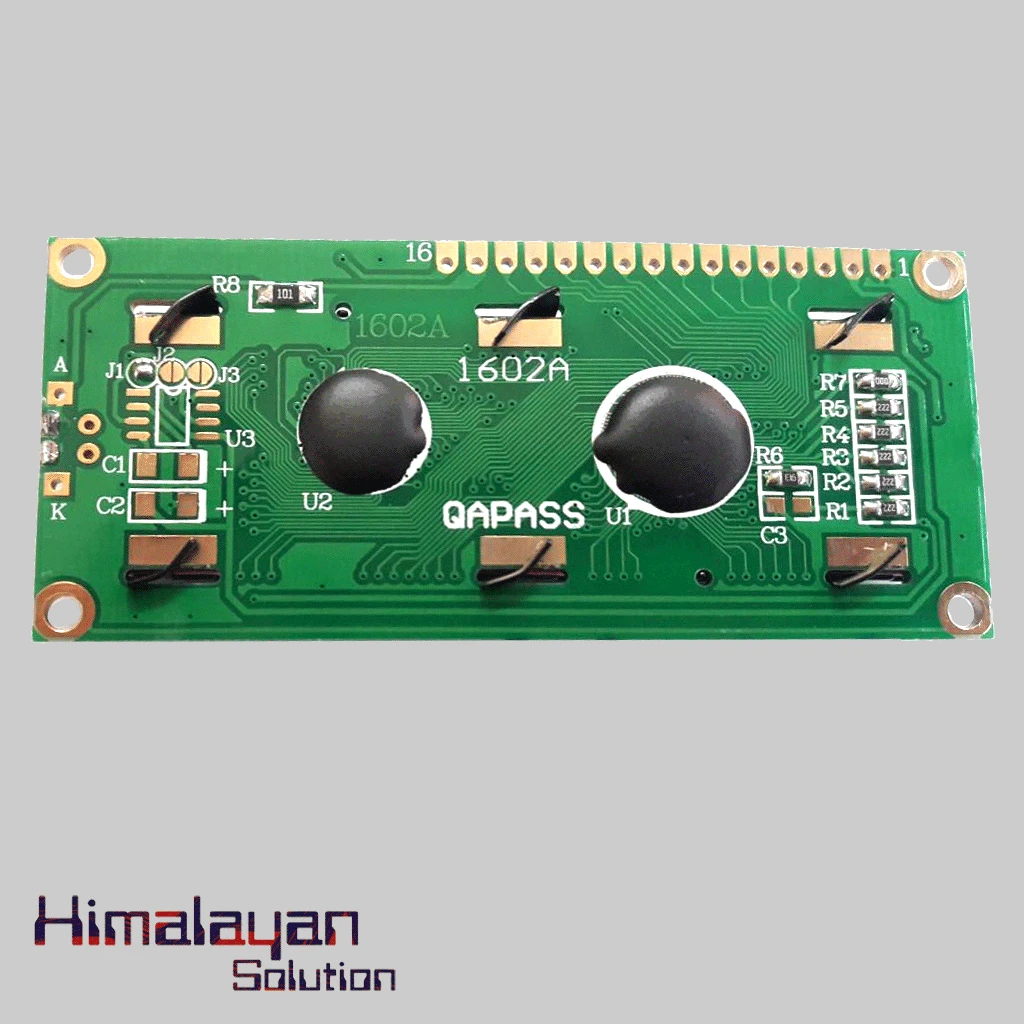

16*2 LCD Module

16 * 2 Lcd module is 16 characters wide and 2 row character Lcd module made of high quality   material. It has 16 pin connecter with blue black light. It can be easily controlled by MCU and can be used in any embedded systems, industrial device and hand held equipment’s.

In Category:
  • LCD & Display
  • Basic Electronics Components
  • LCDS
  • Availability: In Stock

    Color Black + Green
    LCD Size About 2.6inch
    Display Format 16x2 Character
    Interface 6800 4-bit Parallel , 6800 8-bit Parallel
    Connection Pin Header
    Visual Area 64.50x14.50mm
    Active Area 55.45x10.85mm
    Character Size 2.95x5.15mm
    Dot (Pixel) Size 0.55x0.50mm
    Dot (Pixel) Pitch 0.60x0.55mm
    IC Package COB
    Display Type STN-LCD Blue
    Touch Panel Optional No
    Sunlight Readable No
    Response Time(Typ) No
    Contrast Ratio(Typ) No
    Colors No
    Viewing Angle Range No
    Brightness(Typ) No
    Viewing Direction 0.25
    Backlight Current (Typ) 15mA
    Power Supply(Typ) 3.3V, 5V
    Supply Current for LCM(Max) 1500uA (Vdd = 5V ), 1250uA ( Vdd = 3.3V)
    Operating Temperature -20℃~70℃
    Storage Temperature -30℃~80℃
