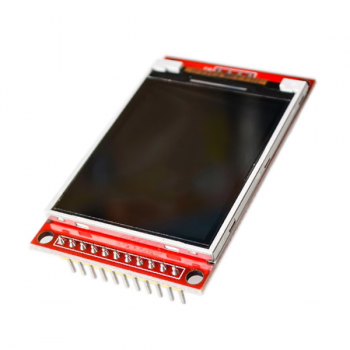

2.0 inch ILI9225 TFT LCD Display Arduino Module
2.0-inch ILI9225 TFT LCD Display Module with 220*176 resolution, 65K colors, 3.3V-5V operating voltage, and 4-wire SPI interface. Includes SD card slot for added storage, supports Arduino, STM32, and C51 with sample programs, and built to military-grade standards for reliable performance.It can also has integrated SD card expansion circuit. It can be used in many DIY arduino projects.
Availability: In Stock
| Model Number | 2.0 inch |
| Resolution | 176 * 220 |
| Driving IC | ILI9225 |
| Type LCD | TFT |
| LCD Interface | SPI |
| Power Supply | 5 V to 3.3 V |
| Size | 60mm * 38mm |
| Display | 176x220 resolution, 16-bit RGB color, 3-5V power |
| Interface | 4-wire SPI for easy microcontroller integration |
| Extras | SD card slot for added functionality |
| Build | Military-grade standards, -20℃ to 60℃ operating range |
| Compatibility | Supports Arduino, C51, STM32 with libraries and sample programs |
| Touch | No |
The 2.0-inch ILI9225 TFT LCD Display Module is a high-resolution color display with a versatile design, perfect for various projects involving Arduino, C51, STM32, and similar microcontrollers. Here are the key features and specifications:
Key Features
-
High-Quality Display:
- 16-bit RGB, 65K color depth
- Resolution of 176x220 pixels
- Active area of 31.68x39.60 mm, providing clear and vibrant visuals.
-
Efficient Interface:
- 4-wire SPI interface, simplifying connectivity while saving IO pins.
- Compact module (38.30x62.48 mm), suitable for projects with limited space.
-
Power & Temperature Durability:
- Operating voltage of 3.3V to 5V, with a low power consumption.
- Operating temperature range of -20℃ to 60℃, making it suitable for various environments.
- Backlit by 3 white LEDs, ensuring visibility.
-
Additional Features:
- SD Card Slot for easy storage expansion and function versatility.
- Military-Grade Standards: Built for long-term reliability in tough conditions.

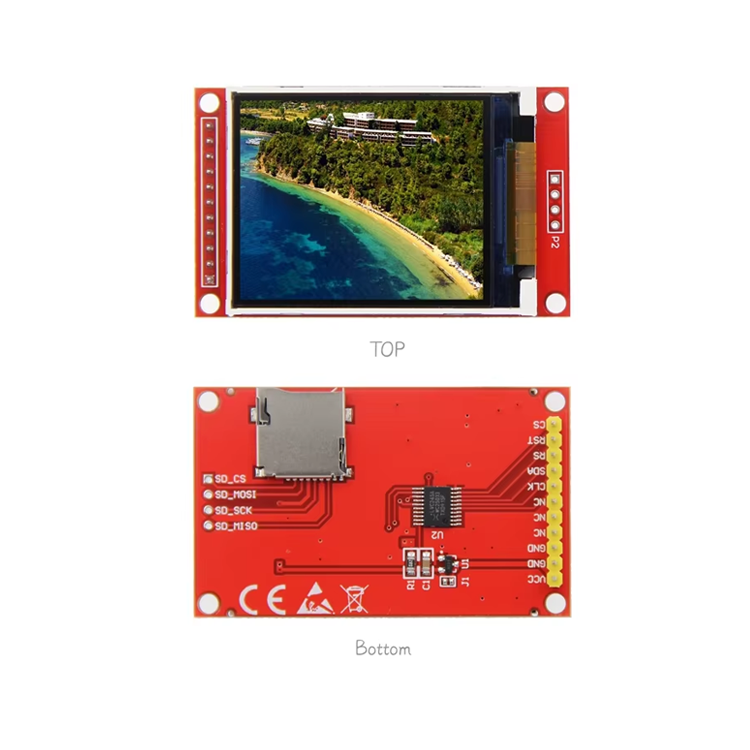

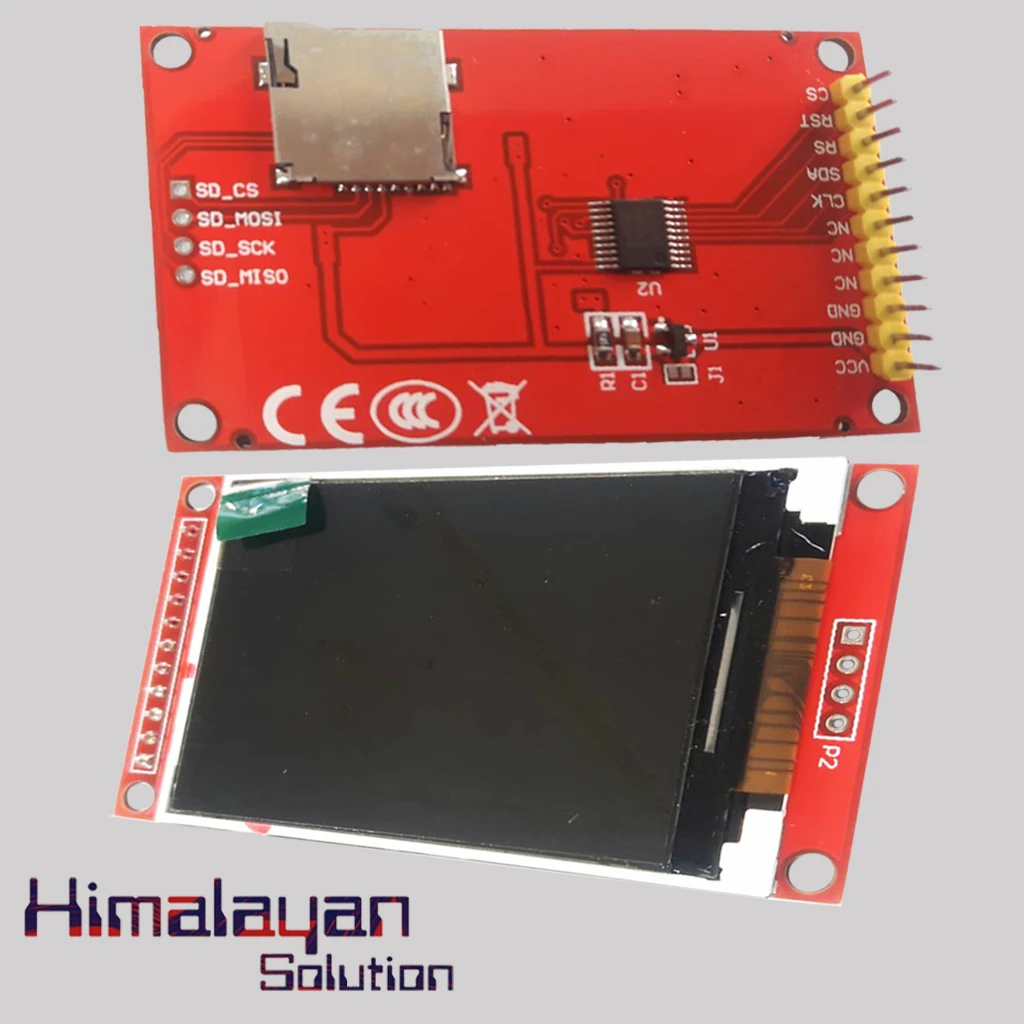

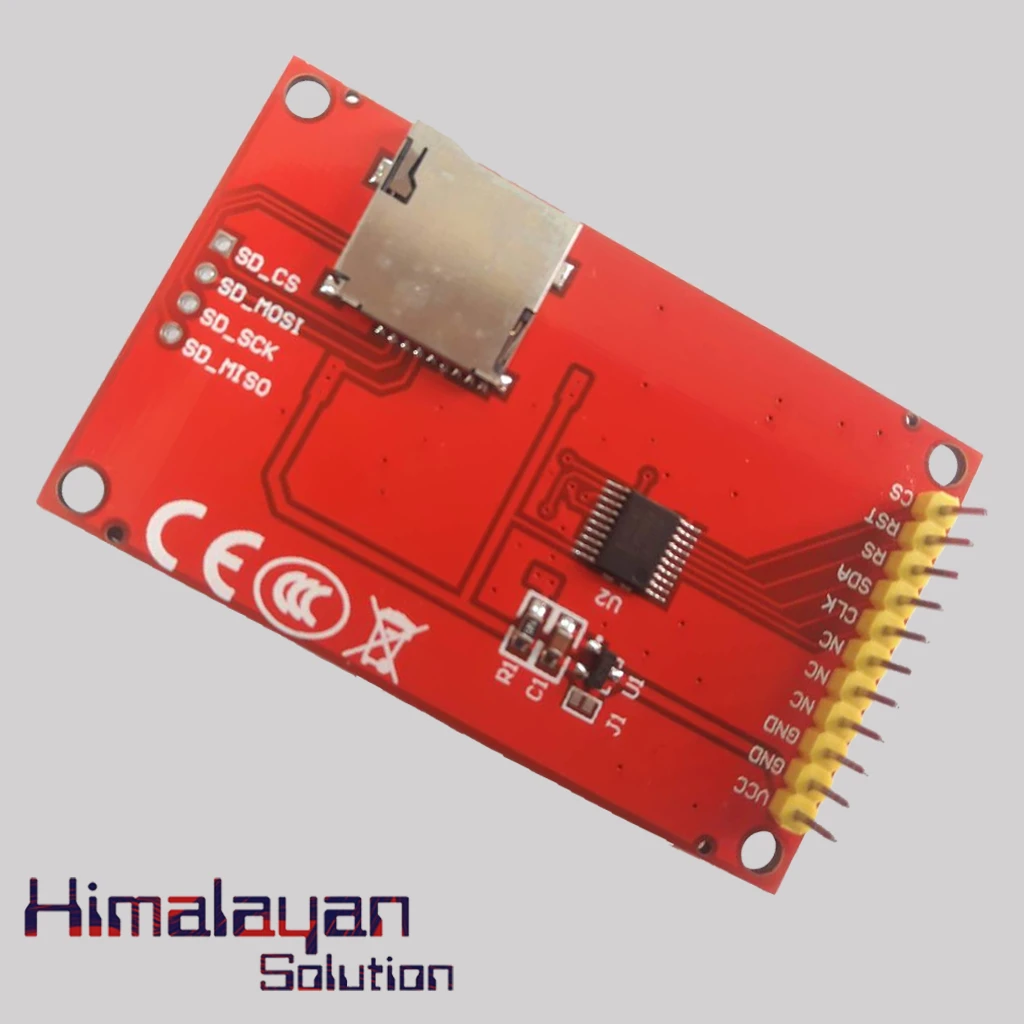

Pin Configuration
- Power Pins:
- VCC: Positive (3.3V~5V)
- GND: Ground
- Control Pins:
- CLK: SPI clock signal
- SDA: SPI data signal
- RS: Register/Data selection (High for register, Low for data)
- RST: Reset signal (Low for reset)
- CS: Chip select (Low to enable)
Additional Specifications
- Display Type: TFT LCD with ILI9225 driver IC
- Module Interface: 4-wire SPI
- Storage Temperature: -30℃ to 70℃
- Weight: Approximately 20g with packaging
Usability
This display module is especially useful for applications requiring rich color displays, such as text displays, project dashboards, and data visualizations on Arduino or Raspberry Pi. The SD card slot adds flexibility for projects that require larger storage for assets or logs. The included sample programs make integration easy, especially for hobbyists and developers working on interactive or educational projects.
This versatile, durable module can bring a professional-grade display to your electronic projects, making it an excellent choice for both DIY and professional applications.
