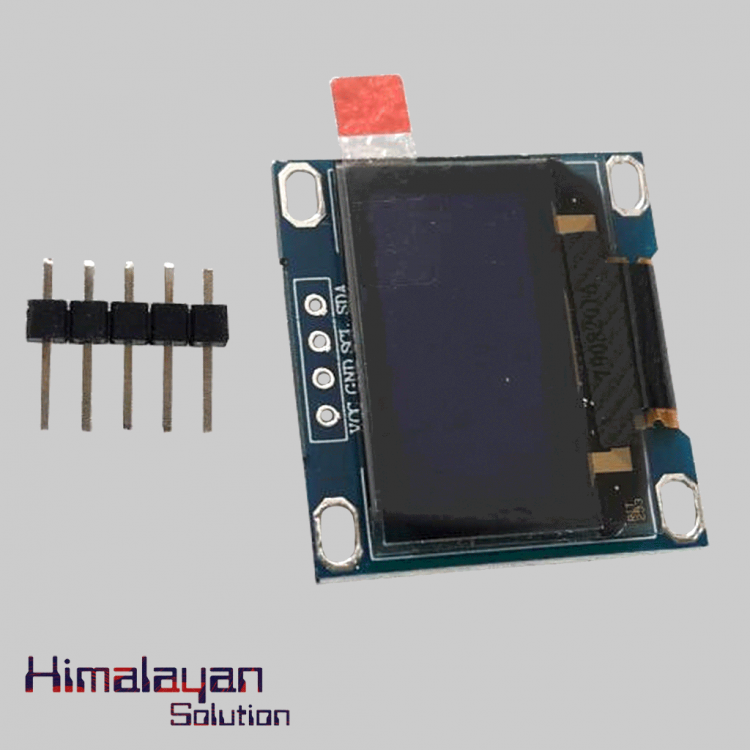

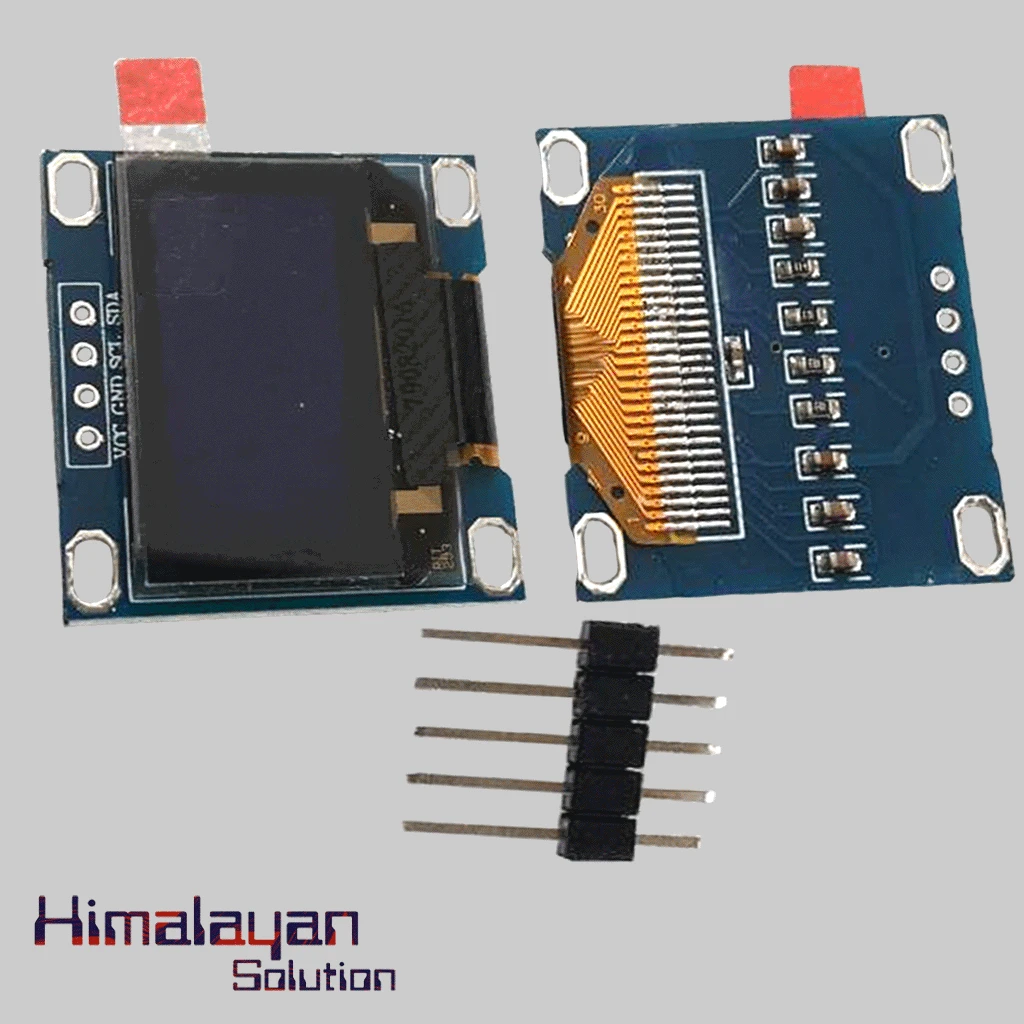

1.3 inch Oled Display

The 1.3 inch OLED (Organic Light –Emitting Diode) LCD display module use SH1106 Driver module. It is a self-light emitting technology with multi layered organic film placed between an anode and cathode. It has high application potential for virtually all types of displays with ultra-low power consumption feature.

In Category:
  • LEDS
  • LCD & Display
  • Availability: Out Of Stock

    Driver's Chip SH1106
    Resolution 128 * 64
    Visible Angle > 160
    Voltage DC 3V-5V
    Work Temp -30°C-70°C
    Storage Temp -30 ~ 80°C
    Interface 3-wire SPI, 4-wire SPI, I2C
    Screen Size 1.3 inches
    Module Construction COG
    Module Size (mm) 34.50 x 35.00
    Panel Size (mm) 34.50 x 23.00 x 1.45
    Active Area (mm) 29.420 x 14.70
    Pixel Pitch (mm) 0.23 x 0.23
    Pixel Size (mm) 0.21 x 0.21
    Colors Blue
    Weight 8.5g
