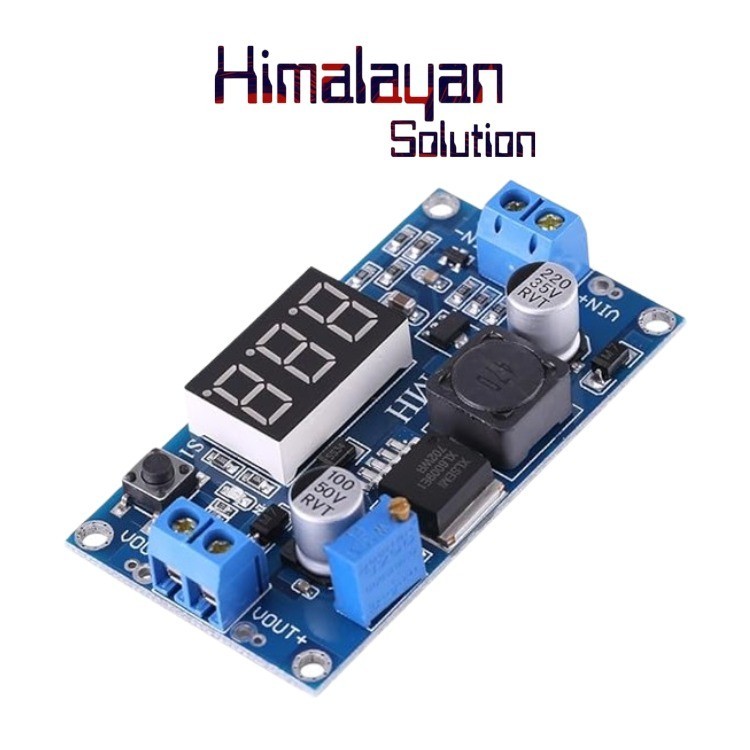

DC To DC Boost Module Step Up Digital Display Regulator Circuit Board XL6009 3A Output 5~32V
- SMALL CAPACITY FILTER : DC to DC boost module made of PCB material with high precision ,small ripple and small size(LM2577 frequency is only 50КНZ),the high switching frequency is 400KHz,and a small capacity filter capacitor can be used to achieve good results
- PRODUCT FEATURE:DC Boost module with terminal blocks, easy to use without a soldering iron, and the soldering wire connection points are preserved,canbe turned off voltmeter and can be easily achieved by pressing the left button when the display is not needed
- SPECIFICATION SIZE:Material: PCB,operating voltage range: 5~32V,input current: 4A, no load 18MA,switching frequency: 400KHZ, output ripple: 50MV,voltage regulation Rate: ±0.5%,working temperature: -40℃ ~ +85℃
- WIDELY APPLICATION::The nature of the module is non isolated boost, and the rectification method is asynchronous rectification,suitable for various electronic projects,very practical
- GUARANTEE: All products sold by our brand, we will give the strict assurance of the quality. If you have any quality question about our product, please feel free to contact u
Availability: In Stock
Product description
Feature:
1. 5~32V WORKING VOLTAGE: Wide input voltage is 3V~32V(the boost below 5V works normally, but the digital tube does not work), the working voltage range is 5~32V
2. The high switching frequency is 400KHz, and a small capacity filter capacitor can be used to achieve good results, with small ripple and small size(LM2577 frequency is only 50КНZ)
3. The voltmeter can be turned off, and can be easily achieved by pressing the left button when the display is not needed
4. With terminal blocks, easy to use without a soldering iron, and the soldering wire connection points are preserved
5. The nature of the module is non isolated boost, and the rectification method is asynchronous rectification
Specification:
Item Type: DC to DC Boost Module
Material: PCB
Operating Voltage Range: 5~32V
Module Nature: Non isolated boost
Rectification Method: Asynchronous rectification
Input Current: 4A, no load 18MA (5V input, 8V output, no load less than 18MA, the higher the voltage, the greater the no load current)
Conversion Efficiency: <94% (the greater the pressure difference, the lower the efficiency)
Switching Frequency: 400KHZ, Output Ripple: 50MV (the higher the voltage, the greater the current, the greater the ripple)
Load Regulation: ±0.5%
Voltage Regulation Rate: ±0.5%
Working Temperature: -40℃ ~ +85℃
IN+: Input positive
IN-: Input negative
OUT+: Output positive
OUT-: Output negative
Package List:
1 x DC to DC Boost Module
