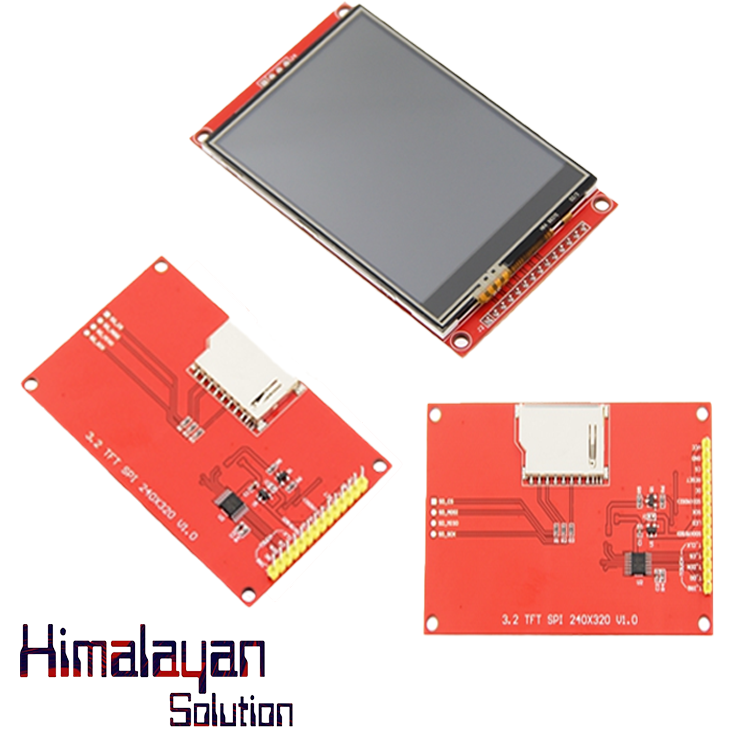

3.2 inch SPI Touch Screen Module TFT Interface 240*320 without Touch
3.2 inch SPI Touch Screen Module TFT Interface 240*320 without Touch is a compact, high-quality display module that can be used in various electronic projects. It is an excellent choice for projects that require a small, high-quality display without touch. It is ideal for use in applications such as portable devices, embedded systems, and other electronic projects that require a clear and easy-to-use display.
The module is designed to communicate with a microcontroller or other host device through a Serial Peripheral Interface (SPI), which makes it easy to integrate into a variety of projects.
Features:
- 3.2-inch color screen, support 65K color display, display rich colors
- 320X240 resolution, non touch function
- Using the SPI serial bus, it only takes a few IOs to illuminate the display

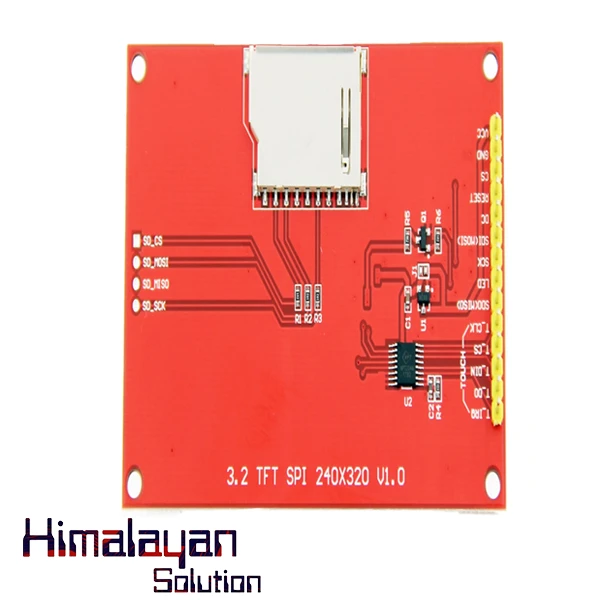

- Easy to expand the experiment with SD card slot
- Provide a rich sample program
- Provide underlying driver technical support
Availability: In Stock
Display Color | RGB |
Screen Size | 3.2(inch) |
Type | TFT |
Driver IC | ILI9341 |
Touch | No |
Resolution | 320*240 (Pixel) |
Module Interface | 4-wire SPI interface |
Operating Temperature | -20℃~60℃ |
VCC power voltage | 3.3V~5V |
Logic IO port voltage | 3.3V(TTL) |
