Wireless Charging Module 5V,1A

Wireless Charging Module 2A

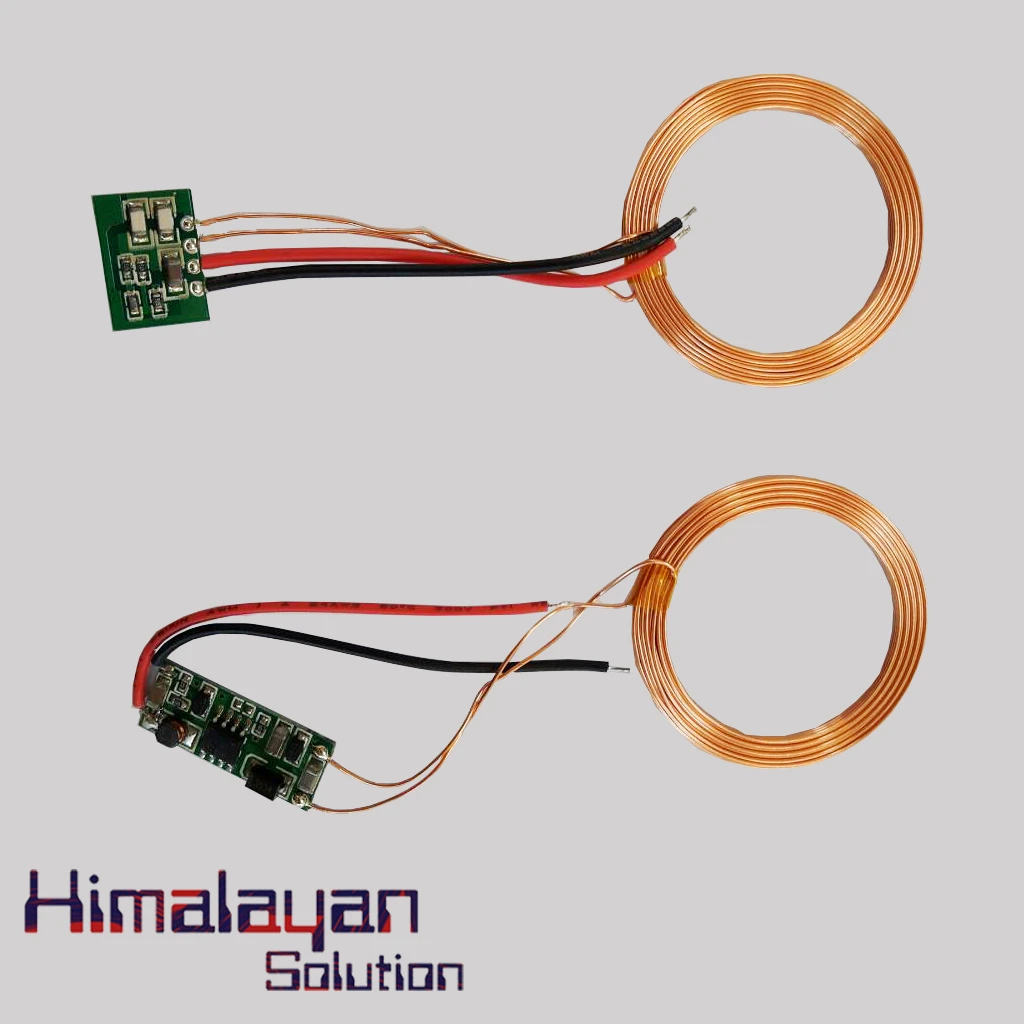

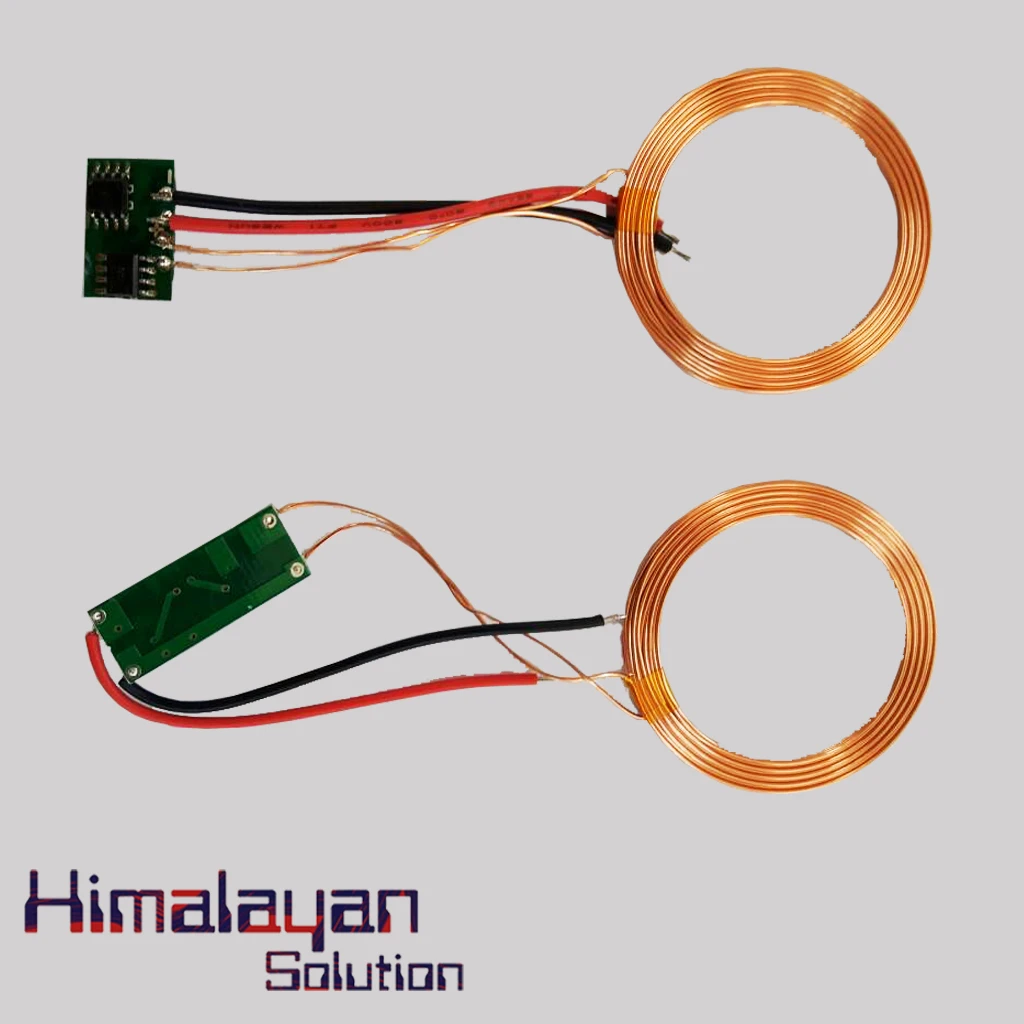

The Wireless Charging Module is an inductive wireless charging module suitable for any electronic projects for close wireless charging or power supply. It comes with two coils, a transmitter coil and a receiver coil. The trasmitter coil needs to be connected to a 12V DC power supply. The receiver coil would provide 5V DC @ 2000mA when transmitter is held close to it. Its small size and insulation coil is more suitable for using in wireless projects.

In Category:
  • Wireless and IOT
  • inductive chargers
  • Basic Electronics Components
  • component
  • Availability: In Stock

    Name Wireless Charging Module
    Input Voltage DC 12 V
    Input Voltage (limit) DC 13.5 V
    Output Voltage DC 5 V
    Output Current (Maximum) 600 mA
    Transmitter Coil Inductance 30 uH
    Transmit To Receive Distance 1 To 20 mm
    Transmitter Dimension 17*12*4 mm
    Receiver Dimension 24*10*3 mm
    Coil Diameter 38 mm
    Coil Height 2 mm
