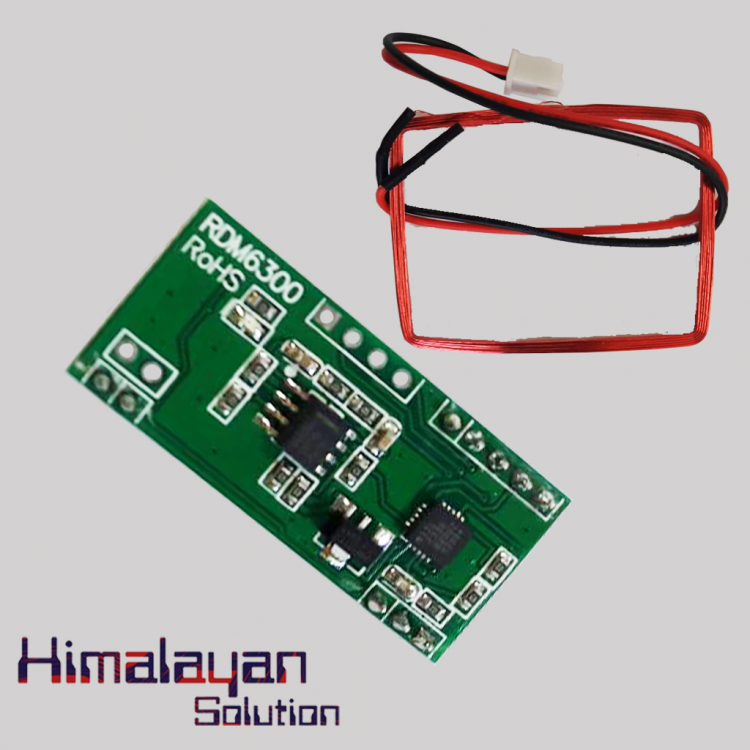

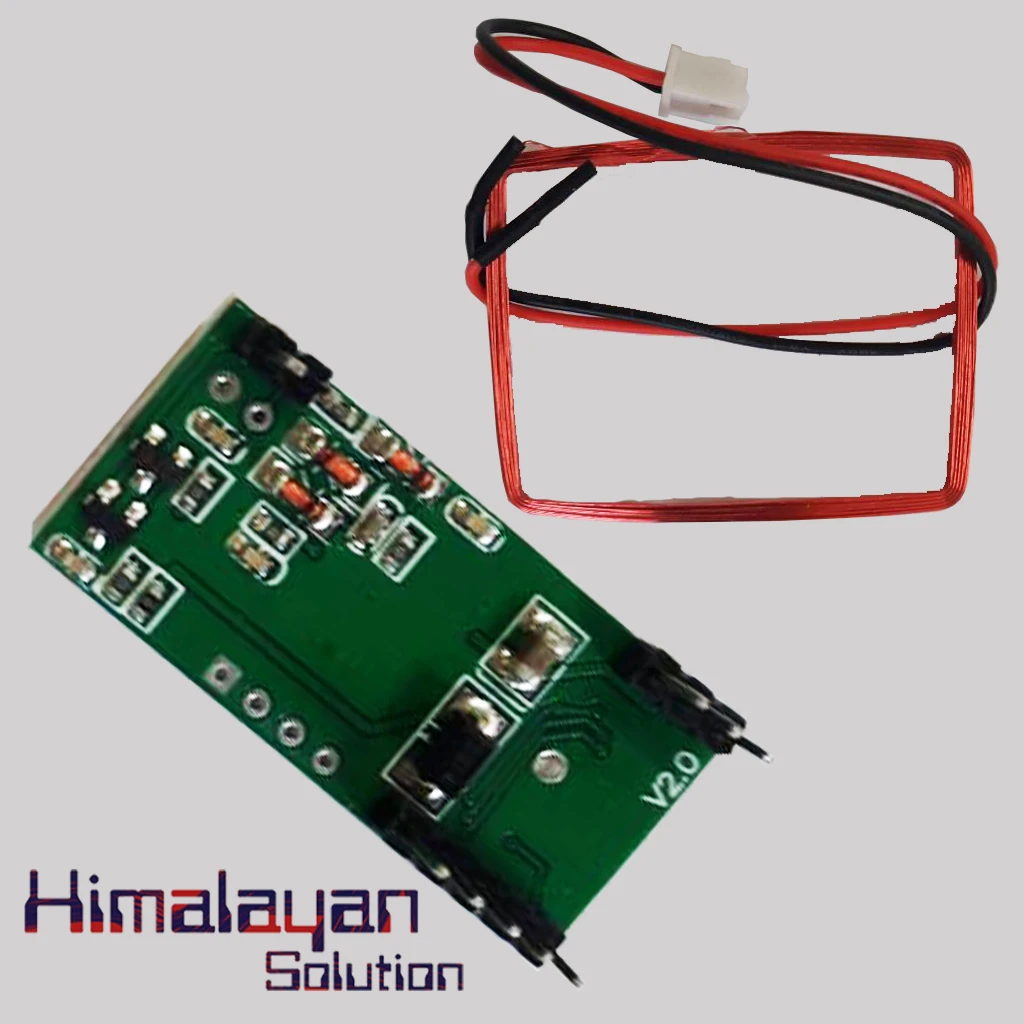

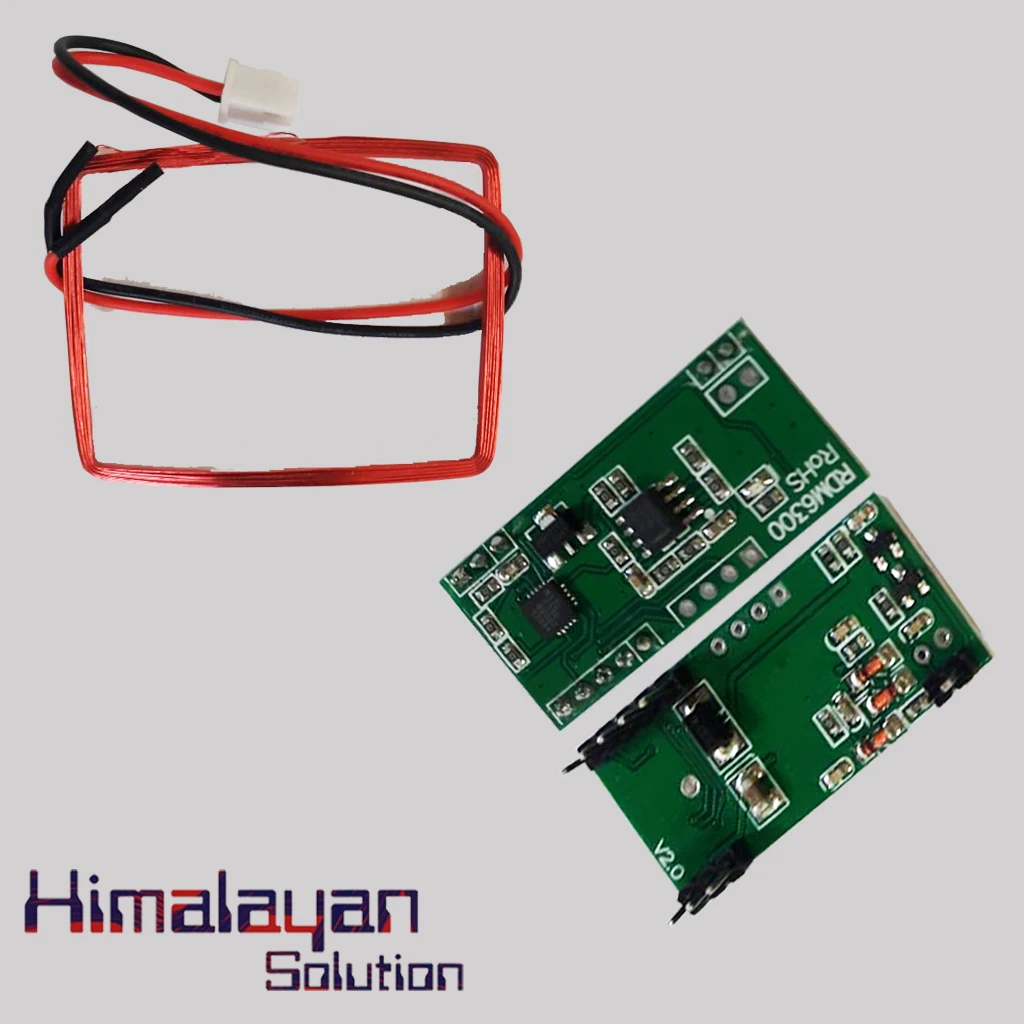

Rfid Reader Module RDM6300
The RFID Reader Module is a RFID Card Reader Module. It is specially designed for reading code from 125 KHz card compatible read-only tags and read/write card. This module is a very popular for arduino users as I can read 125 KHz EM4100 series RFID card. It has various features like: - Easy to use, Support external antenna, Small outline design, Less than 100ms decoding time, UART interface and many more. It can be suitable for various applications like: - Office/home security, Personal identification, Access control, Anti-forgery, Interactive toy and production control systems etc.
Availability: In Stock
| Name | RFID Reader Module |
| Frequency | 125 KHz |
| Baud Rate | 9600 |
| Interface | TTL RS232 Format |
| Working Voltage | DC 5 V (+/- 5%) |
| Operating Current | <50 mA |
| Receiving Distance Range | 20 to 50 mm |
| Working Temperature | -10°C to + 70°C |
| Storage Temperature | -20°C to + 80°C |
| Humidity | 0 ~ 95% |
| Wiring Size | 46 * 32 * 3 mm |
| PCB Size | 38.5x19x9 mm |
