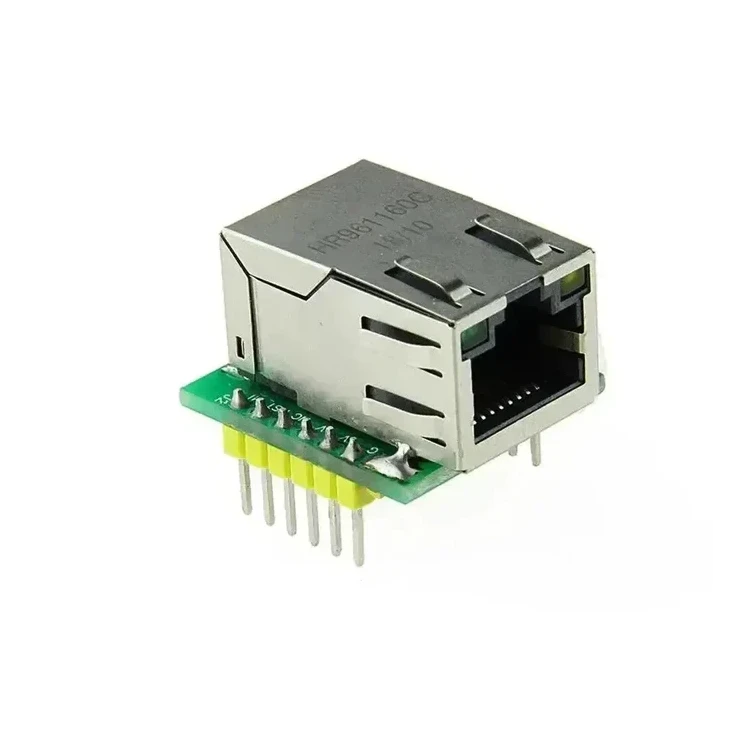

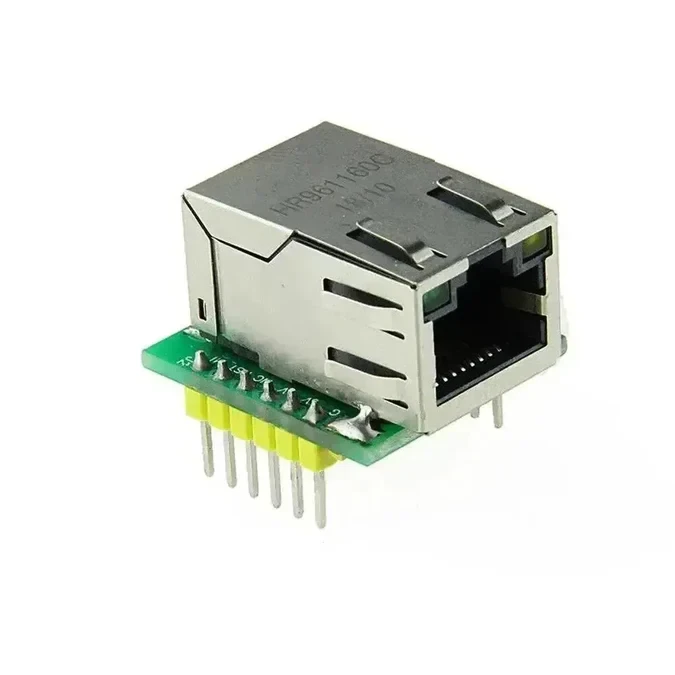

USR-ES1 W5500 SPI to LAN Ethernet Module
Unlock the full potential of your embedded projects with the USR-ES1 W5500 SPI to LAN Ethernet Module, a cutting-edge solution designed to provide seamless and efficient Ethernet connectivity. Whether you're building advanced IoT devices, robust industrial automation systems, or innovative smart home applications, this Ethernet converter module integrates effortlessly, ensuring reliable and high-speed network communication tailored to your specific needs.
Why Choose the USR-ES1 Ethernet Module?
The USR-ES1 module stands out in the realm of embedded networking solutions due to its impressive blend of performance, versatility, and compact design. Leveraging the powerful W5500 chip, it offers a fully hardware-based TCP/IP stack, significantly reducing the processing load on your microcontroller and enabling smoother, more responsive applications.
Availability: In Stock
- Power Supply: Designed to operate efficiently on a 3.3V power supply with a minimum current requirement of 200mA, the USR-ES1 ensures stable performance across various embedded systems, making it compatible with a wide range of microcontrollers and development boards.
- High-Speed Interface: Featuring an 80MHz SPI interface, this module facilitates rapid data transfer rates essential for applications demanding quick and efficient communication. The high-speed SPI ensures minimal latency, permitting real-time data processing and reliable network interactions.
- Built-In Protocol Stack: The USR-ES1 incorporates a comprehensive hardware-based TCP/IP protocol stack, simplifying the networking process. This integration minimizes the need for extensive software development, allowing you to focus more on your application's core functionality rather than network management.
- Multi-Socket Support: Capable of handling up to 8 simultaneous sockets, the USR-ES1 offers extensive protocol support including HTTP, FTP, DHCP, DNS, and more. This flexibility enables the module to adapt to a variety of networking tasks, from simple data exchange to complex client-server architectures.
- Large Receive Buffer: Equipped with a generous 32K bytes receive buffer, the module efficiently manages substantial data flows. This large buffer size ensures smooth and uninterrupted communication, even during high traffic periods, enhancing the reliability of your networked applications.
- Ethernet PHY Support: The USR-ES1 supports both 10BaseT and 100BaseTX Ethernet PHY standards with automatic negotiation capabilities. This dual support ensures compatibility with a broad spectrum of network environments, providing flexibility and ease of integration into existing infrastructures.

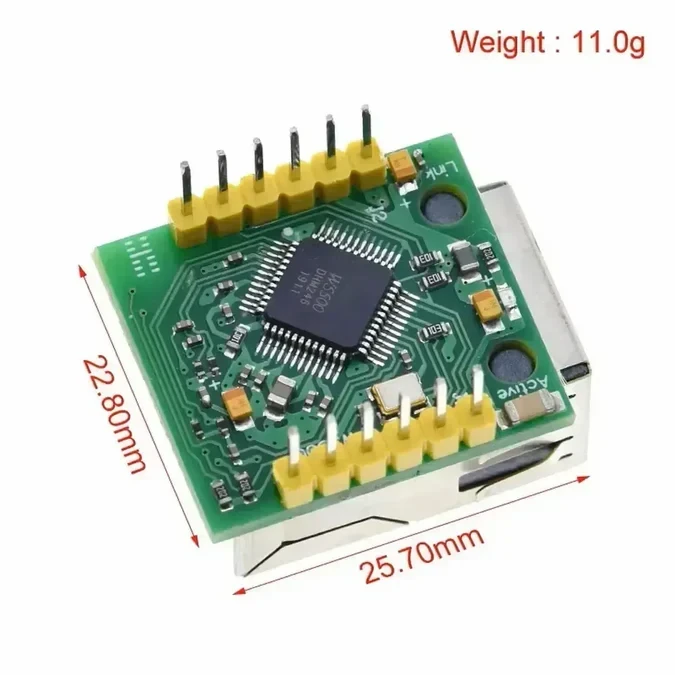

- Compact Design: Measuring just 28.5mm x 23mm x 24mm, the module boasts a compact footprint ideal for space-constrained embedded projects. Its small size allows for easy incorporation into a variety of device form factors without compromising on performance or functionality.
- LED Indicators: Integrated LED indicators offer visual feedback on key statuses such as duplex mode, connection status, network speed, and activity. These indicators facilitate quick diagnostics and monitoring, helping you maintain optimal network performance and swiftly address any connectivity issues
