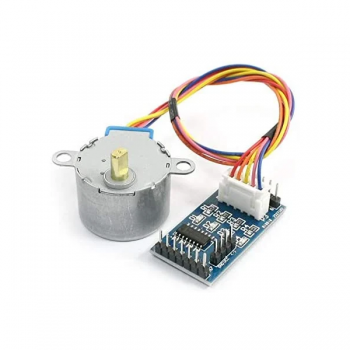

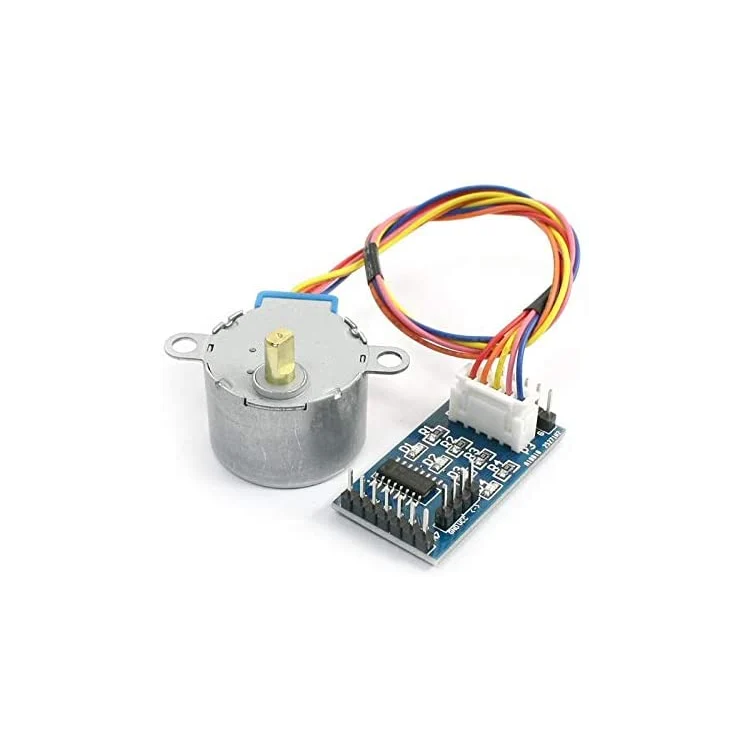

Stepper Motor with ULN2003 Driver board (Blue)

This 5V DC stepper motor combined with the ULN2003 driver breakout board offers a reliable and easy-to-use solution for controlling stepper motors in your electronics projects. The stepper motor provides precise control over rotation, making it ideal for applications that require accurate positioning and movement. Paired with the ULN2003 driver, this kit simplifies the process of interfacing the motor with microcontrollers, enabling smooth and efficient operation.

In Category:

Stepper Motors

Availability: In Stock

Email to a Friend

Enquiry

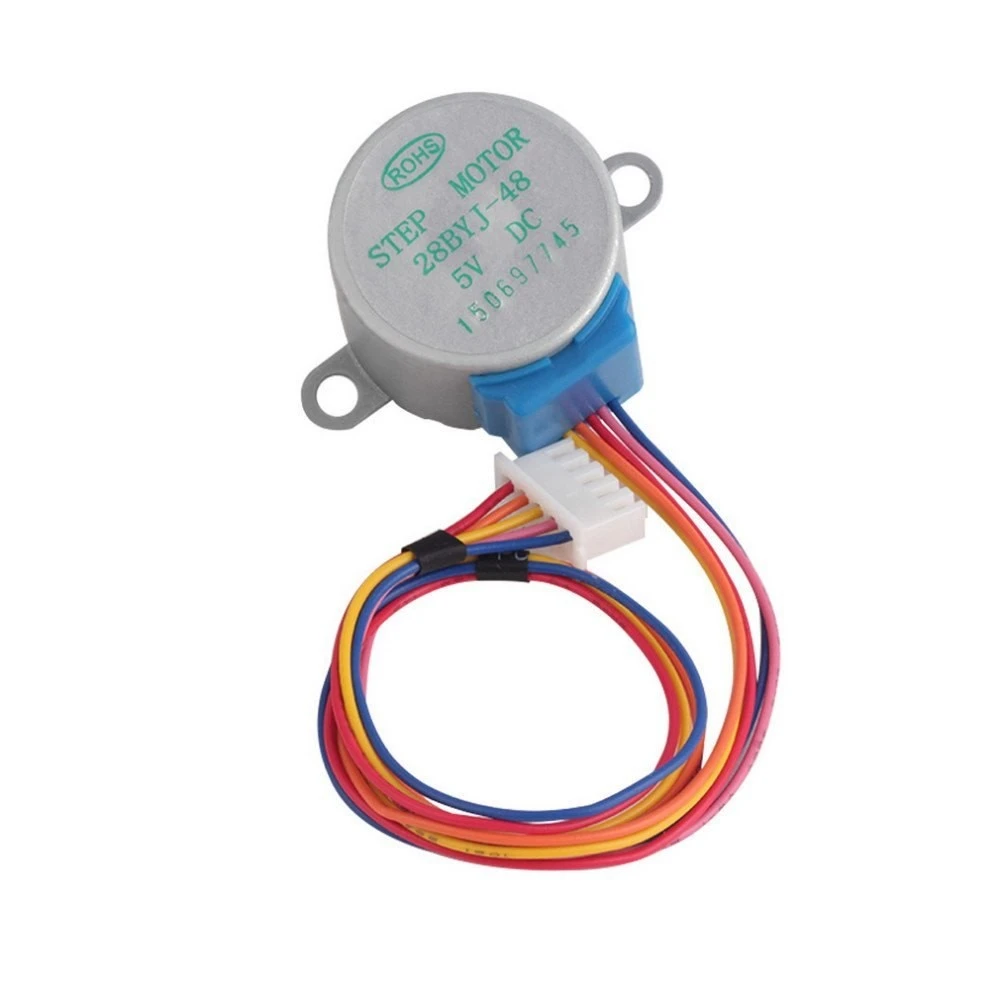

Stepper Voltage	5V DC
Step Angle	5.625°/64 (approximately 0.088° per step)
Reduction Ratio	1/64
Operating Temperature Range	-20°C to +85°C

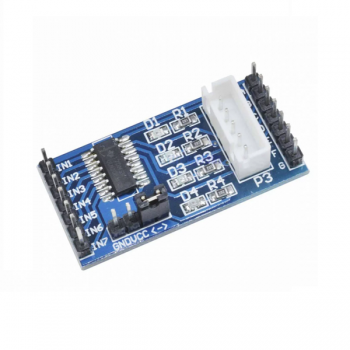

Driver IC	ULN2003A

Features

Multiple Output Channels: The ULN2003 driver controller board typically features 7 output channels, corresponding to the 7 output pins of the ULN2003 chip. This allows users to control multiple loads simultaneously, providing greater flexibility and expandability.
High Current Output Capability: The built-in ULN2003 chip in the 4-phase driver board offers a maximum output current of up to 500mA per channel. This capability enables it to drive higher current loads such as relays, stepper motors, and more.
Low Voltage Operation: The DC 5V stepper motor can operate at lower voltages, providing convenience in power supply. Compared to other high-voltage stepper motors, the 5V variant has lower power requirements, making it more suitable for small electronic devices.
Easy to Use: The ULN2003 4-phase driver board features clear pin labeling and interface layout, ensuring ease of use and connectivity. It requires no complex external components or circuits; simply connect the appropriate power source and control signals to drive the load.
Wide Compatibility: The 5V stepper motor is a common specification, making it highly compatible with the ULN2003 driver board. Whether used in DIY projects or industrial applications, this combination offers broad compatibility and versatility.
