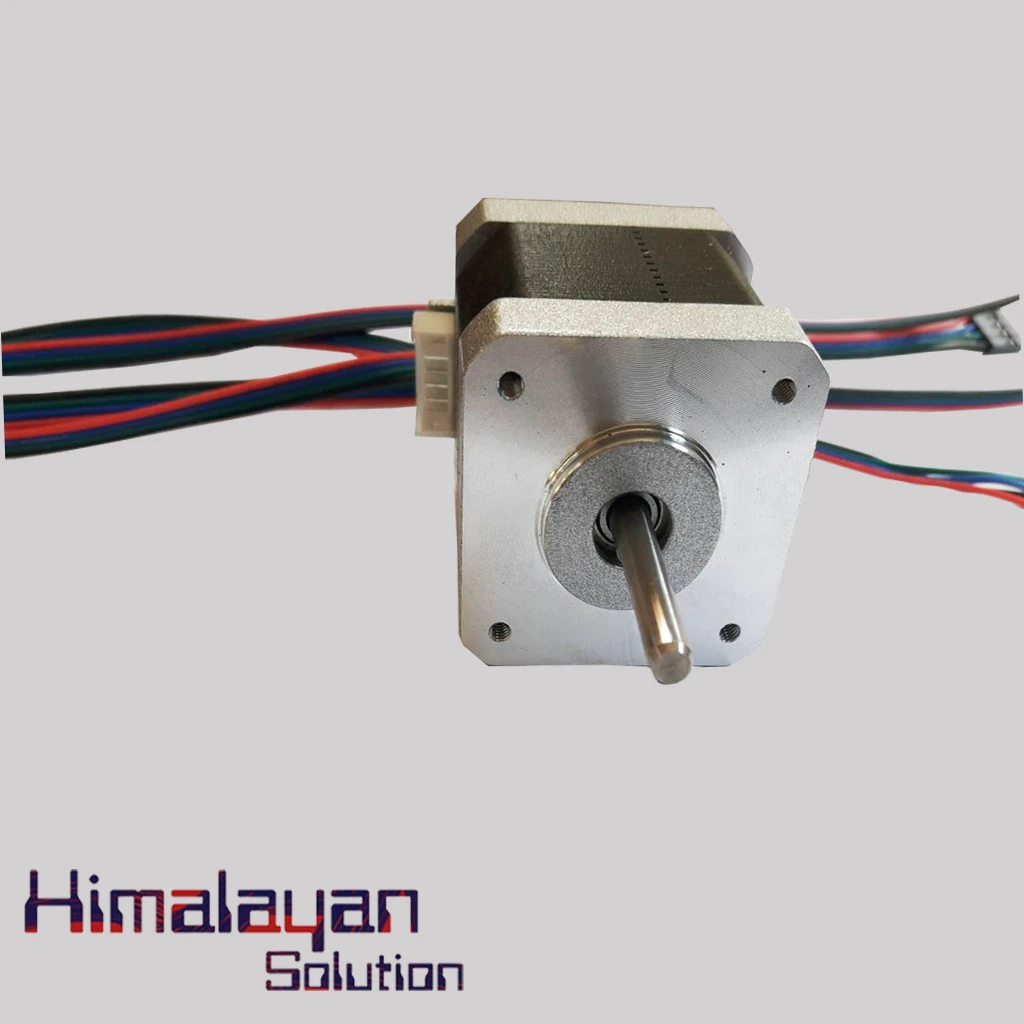

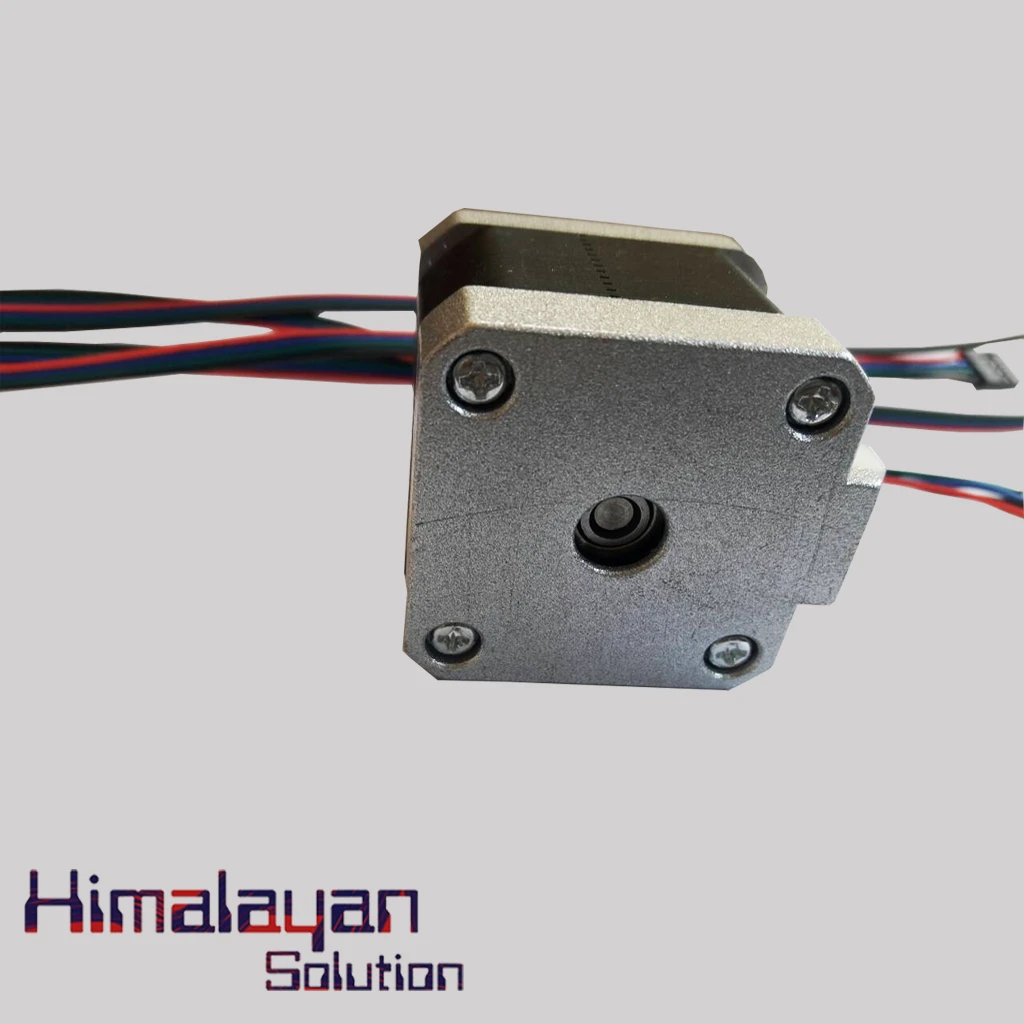

NEMA17 HIGH TORQUE STEPPER MOTOR SMALL

Name: NEMA17 HIGH TORQUE STEPPER MOTOR SMALL
Brand: Himalayan Solution
SKU: nema17-high-torque-stepper-motor-small
Price: 1200.00 NPR
Availability: InStock

Ask about this product

0 /5.0 (0 reviews)

SKU 20.40(Stepper motor nema 17 85011000)

Small Stepper motor (High torque) for applications like Micromouse. Features: Tapped Holes on 4 corners. 12V 0.3Amp in bipolar mode. Weight : 220 gm Dimensions :42 x 42 x 34 mm 5 mm Standard Shaft 24 mm length Torque 3.1kgcm Ideal for micromouse due to its low weight to torque ratio. Usage: Connect +ve to 2 Common wire...

Need More Information?

Message Us Now

Cash on delivery available

Small Stepper motor (High torque) for applications like Micromouse.

Features:

Tapped Holes on 4 corners.
12V 0.3Amp in bipolar mode.
Weight : 220 gm
Dimensions :42 x 42 x 34 mm
5 mm Standard Shaft 24 mm length
Torque 3.1kgcm
Ideal for micromouse due to its low weight to torque ratio.

Usage:

Connect +ve to 2 Common wire and drive 4 coils with drivers such as ULN2003/ULN2803 for driving in Unipolar mode. This ic's will not work directly with this motor since current capacity is less. However 2 in parallel can drive this motors.
Connect H-bridge / Chopper Drive to 4 wires to use in Bipolar mode.

Wiring Details:
