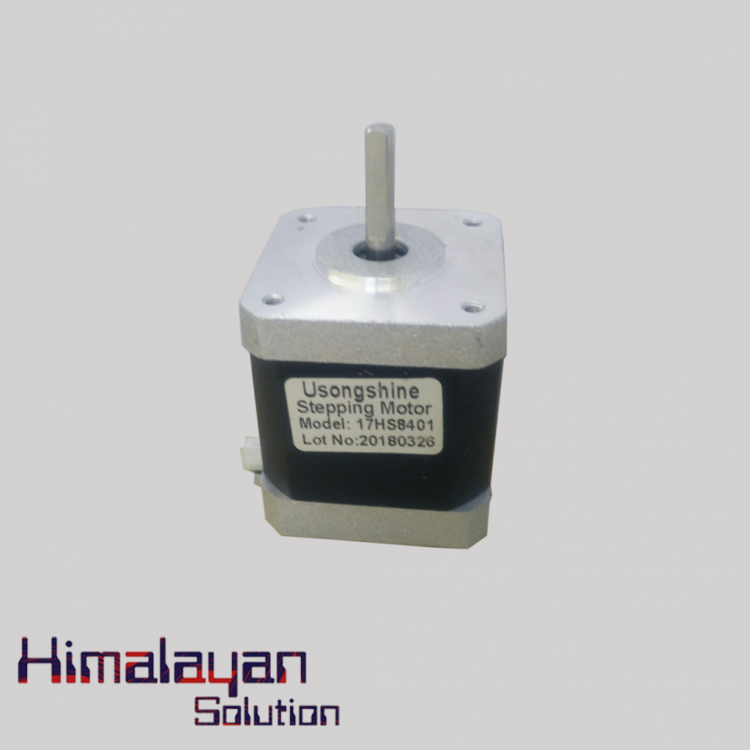

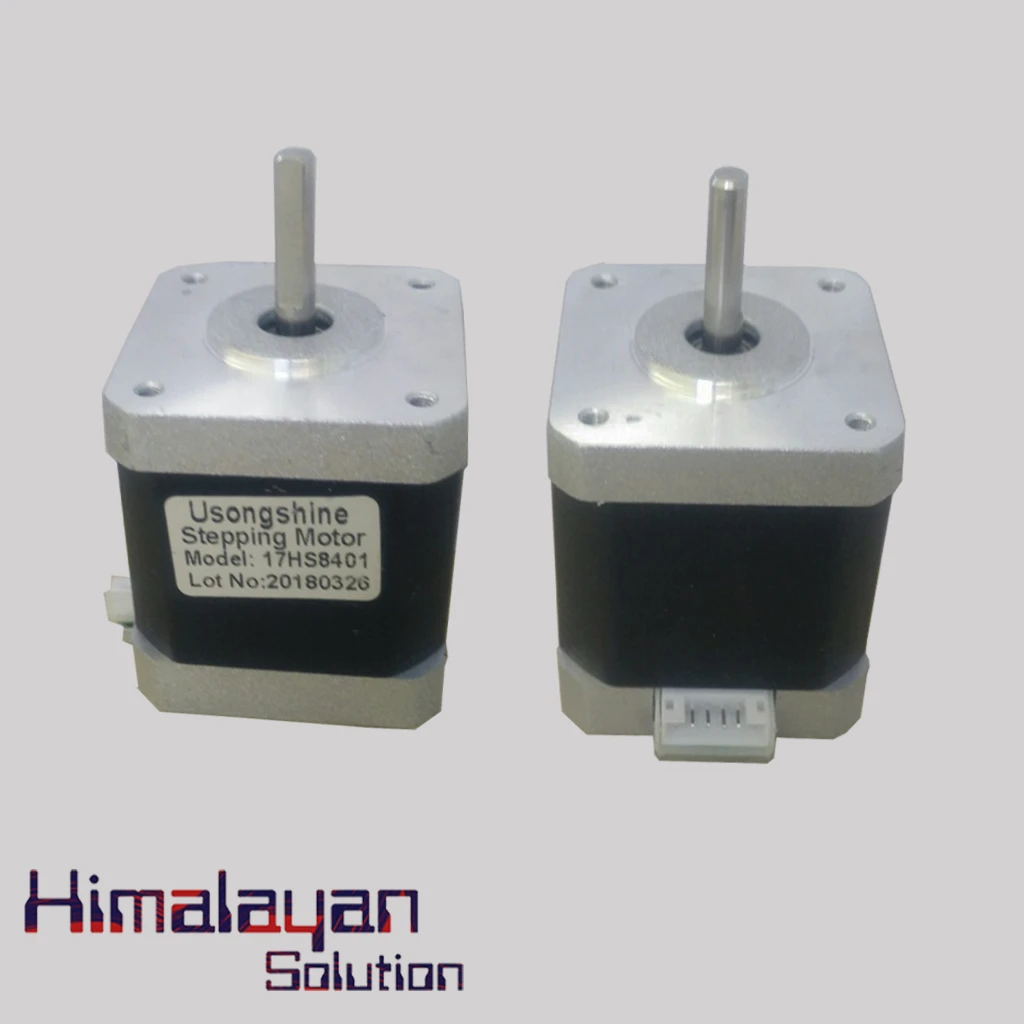

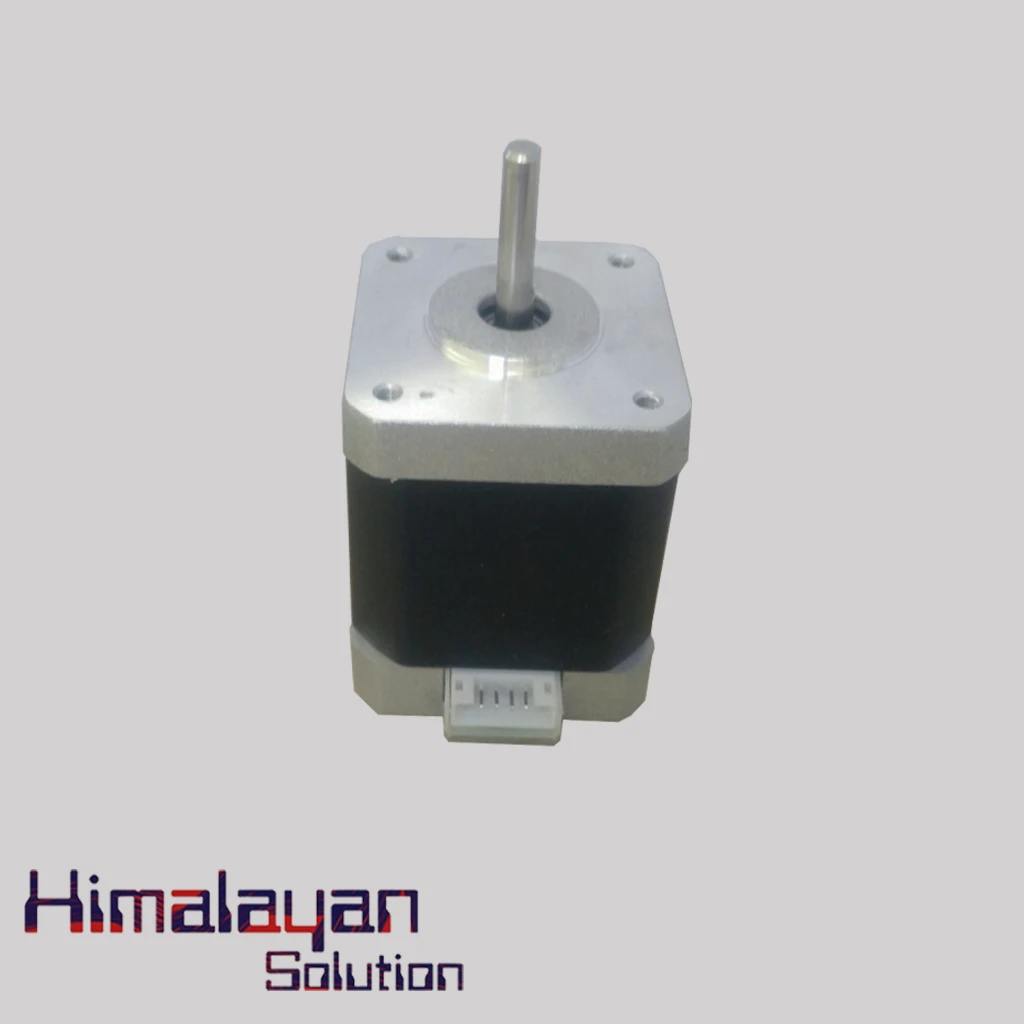

Nema 17 Stepper Motor BIG

NEMA 17  Stepper Motor BIG is for 3D printer applications and CNC applications and other various applications too. This device demands low speed with high precision. It is used in many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc. Nema17 4 wire Bipolar Stepper Motor is High precision 4–wire bipolar stepper motor, size in Nema 17, 1.8 deg. step angle (200 … It is one of most parameters for the stepper motor. Users can use the A4988 or drv8825 driver to run this motor.

In Category:
  • Motors & Wheels
  • Stepper Motors
  • Robotics and CNC
  • CNC
  • 3D Printing
  • Availability: In Stock

    Shaft Diameter 5mm
    Step Angle 1.8°
    Phase Current 1A
    Phase Resistance 1.5Ohm
    Phase Inductance: 2.8mH
    Holding Torque
    Braking Torque
    Rotor Inertia⊃2;
    Wire 4(Blue, green, black, red)
    Max. Temperature Rise 80℃ (rated current, 2 phase on)
    Operating Temperature -20℃~+70℃
    Insulation Resistance 100 MΩ Min. , 500VDC
    Radial Clearance 0.02Max. (450g-Load)

    It is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position. It is basically a high-quality motor that can be used for a long time without stuck. This mini electronic device has a quite stable performance during work and will not lose a step. It has low noise and big torque, this is a great choice if you need a stepper motor. Stepper motor can be widely used for a 3D printer, CNC engraving machine, etc.
