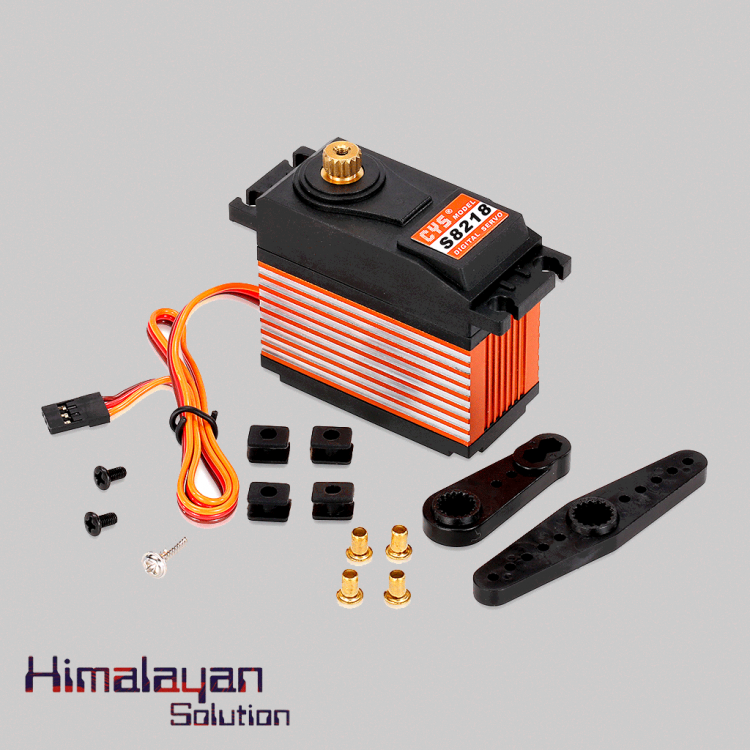

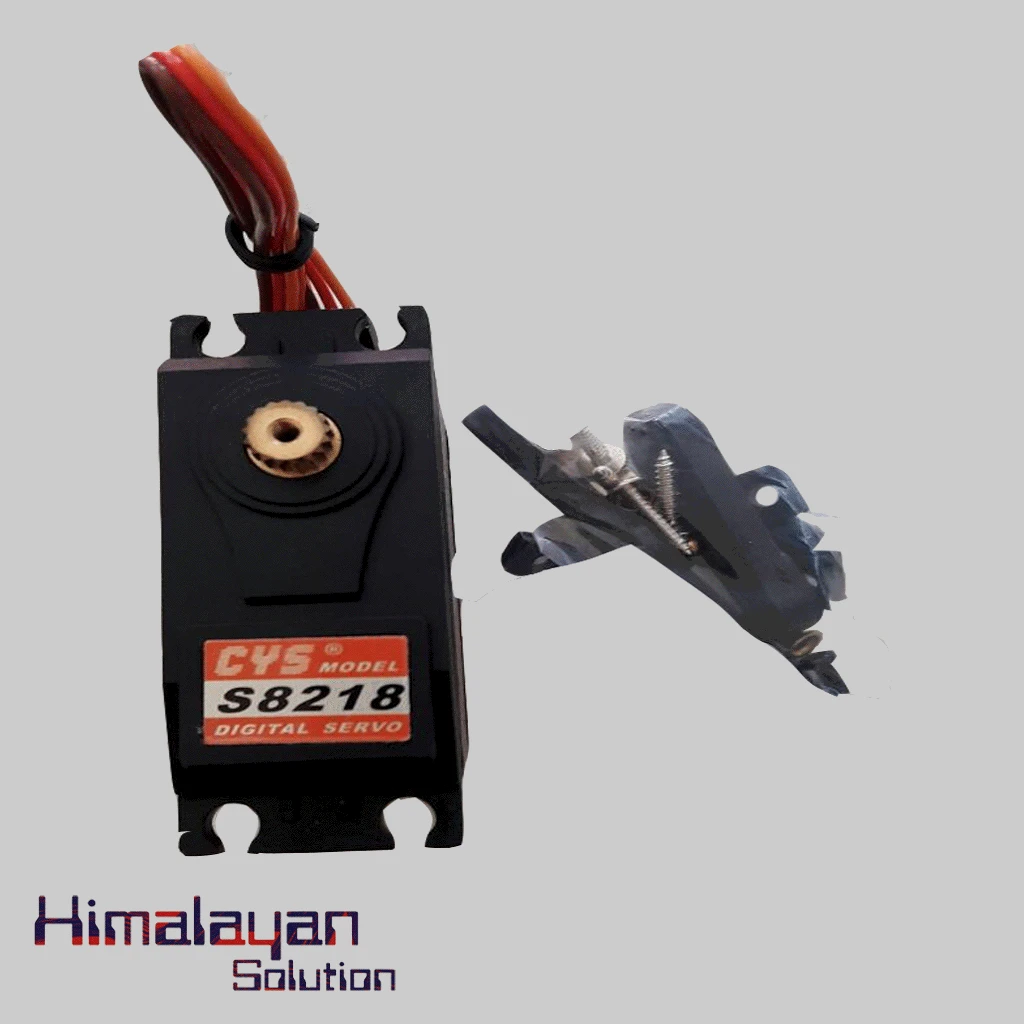

S8218 Digital Servo Motor 40kg
40kg S8218 digital servo motor is a High Torque Servo Motor that is Compatible with Futaba, JR, Sanwa, Hitee series. The servo should be kept clean and free of dust, corrosive gas and humid air and also from Torque over charged as these may damage the servo. It has metal gear inside with voltage of 6-7.4 v. It is Compatible with Futaba, JR, Sanwa, Hitee series.
Availability: In Stock
| Modulation | Digital |
| Model | S8218 Digital Servo Motor |
| Gear Type | Metal |
| Operating Voltage | 6.0~7.4Volts |
| Stall Torque (6.0V) | 36kg.cm |
| Stall Torque (7.4V) | 38kg.cm |
| Temperature Range | -10℃～50℃ |
| Dead Band Width | 5 µs |
| Servo Wire Length | 30cm |
| Operating Speed (6V) | 0.2 sec/60° |
| Operating Speed (7.4V) | 0.18 sec/60° |
| Wire Info | Brown/Black = Negative |
| Wire Info | Red = Positive |
| Wire Info | Orange/White = Signal |
| Weight | 164g |
| Size | 59.5*29*55.2mm |
