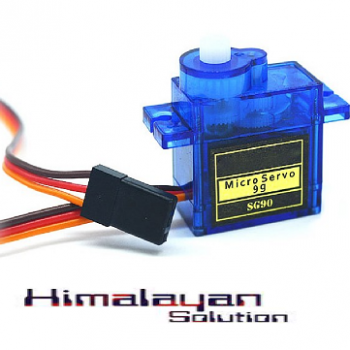

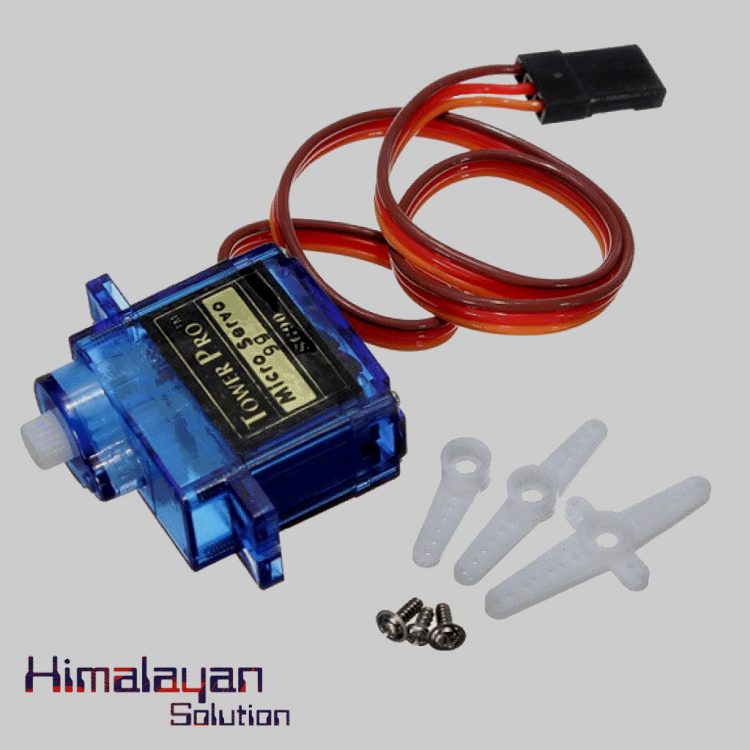

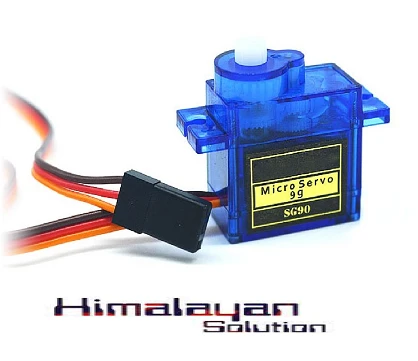

SG90 Servo Motor Plastic Gear SG90 180 Degree

The SG90 servo motor is a lightweight, compact, and versatile motor widely used in robotics, remote-controlled vehicles, and hobby projects. It is a 9g micro servo, making it ideal for small and precise movements.

Key Features

• Type: Analog servo motor
• Operating Voltage: 4.8V–6V
• Torque:
  • 1.8 kg·cm (4.8V)
  • 2.2 kg·cm (6V)
• Speed:
  • 0.12 seconds/60° (4.8V)
  • 0.10 seconds/60° (6V)
• Weight: 9 grams
• Rotation Angle: 180° (±90° from center)
• Control Signal: Pulse Width Modulation (PWM)
  • Pulse range: 500µs–2500µs
  • Neutral position: 1500µs
• Connector: 3-pin (PWM signal, power, and ground)

Features:

• High resolution.
• Accurate positioning
• Fast control response.
• Constant torque throughout the servo travel range.
• Excellent holding power.
• Weight: 9gm.
• Dimension 23*12.2*29mm.
• Stall torque 1.8kg/cm (4.8V)
• Operating speed: 0.1sec/60degree (4.8v).
• Operating voltage: 4.8V.

Wire Description:

• RED – Vcc (Positive)
• Brown – GND (Negative)
• Orange – PWM (Signal)
