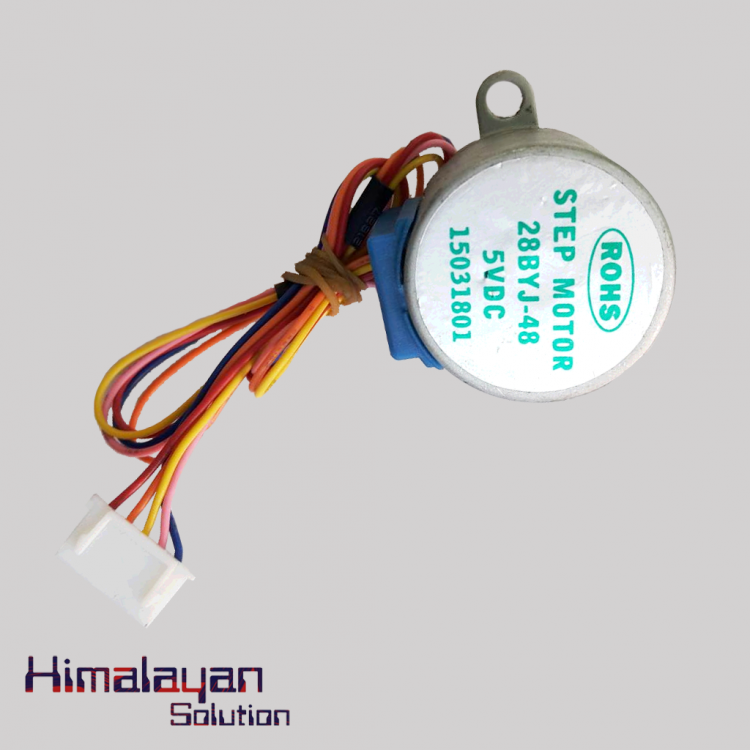

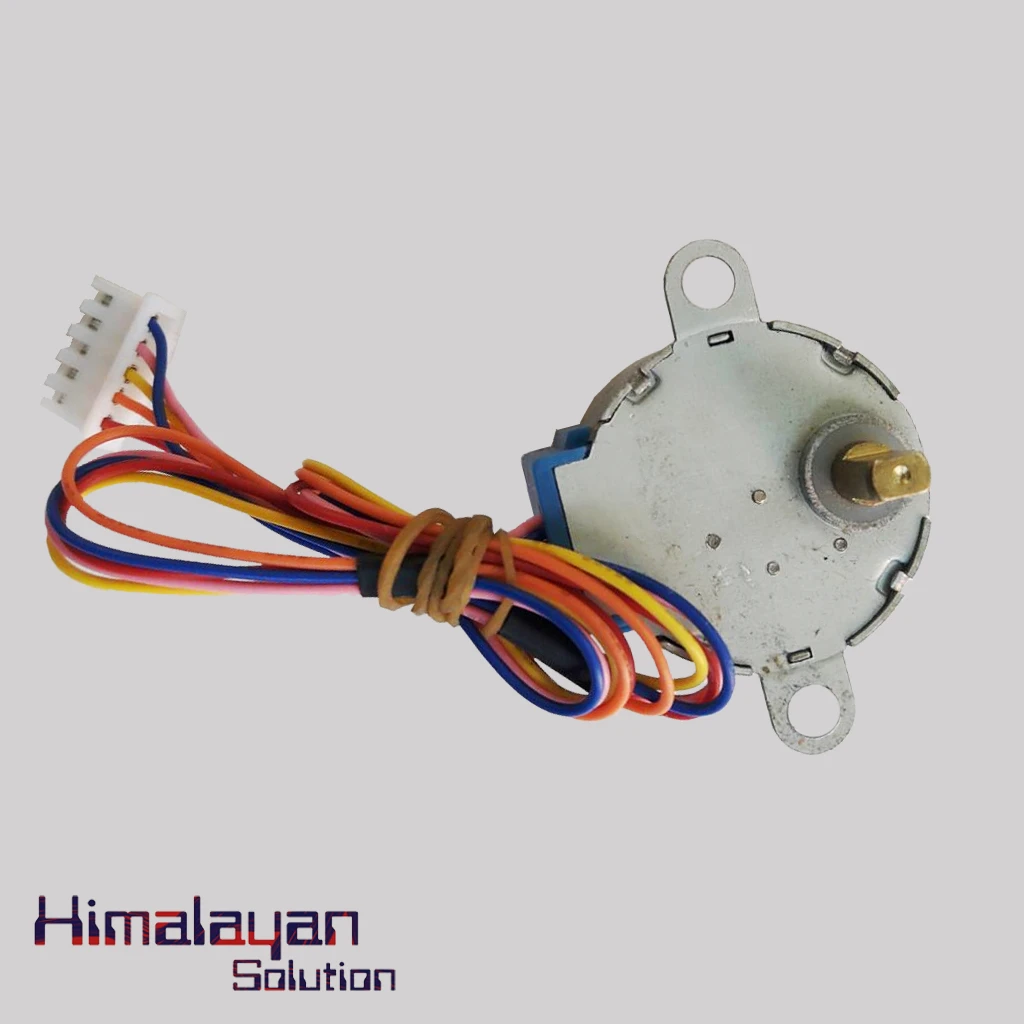

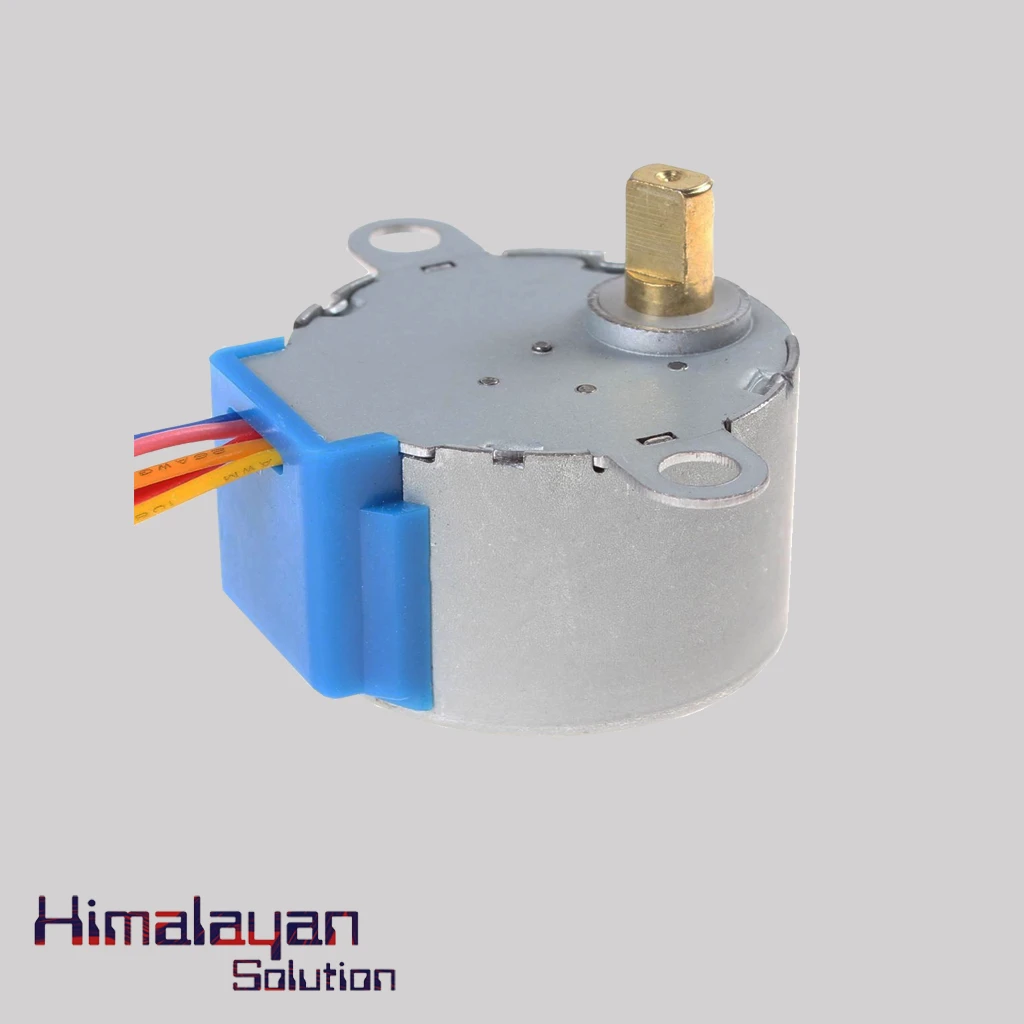

5V Stepper Motor
The 5V Stepper Motor 28BYJ-48 With Stepper Motor Driver Board based on ULN2003 driver board. It is high quality stepper motor. It is suitable for large range of applications requiring precise motion control. It can be applicable in normal printers, 3D printers, CNS, robotic arms and many more.
Availability: In Stock
| Name | 5V Stepper Motor |
| Model | 28BYJ-48 |
| Driver Board | ULN2003 |
| Number Of Phase | 4 |
| Speed Variation Ratio | 1/64 |
| Power Supply | DC 5V |
| Stride Angle | 5.625° /64 |
| Frequency | 100Hz |
| DC Resistance | 50Ω±7%(25℃) |
| Idle In-traction Frequency | > 600Hz |
| Idle Out-traction Frequency | > 1000Hz |
| In-traction Torque | >34.3mN.m(120Hz) |
| Self-Positioning Torque | >34.3mN.m |
| Friction Torque | 600-1200 gf.cm |
| Pull In Torque | 300 gf.cm |
| Insulated Resistance | >10MΩ(500V) |
| Insulated Electricity Power | 600VAC/1mA/1s |
| Insulation Grade | A |
| Rise In Temperature | <40K(120Hz) |
| Noise | <35dB(120Hz,No load,10cm) |
