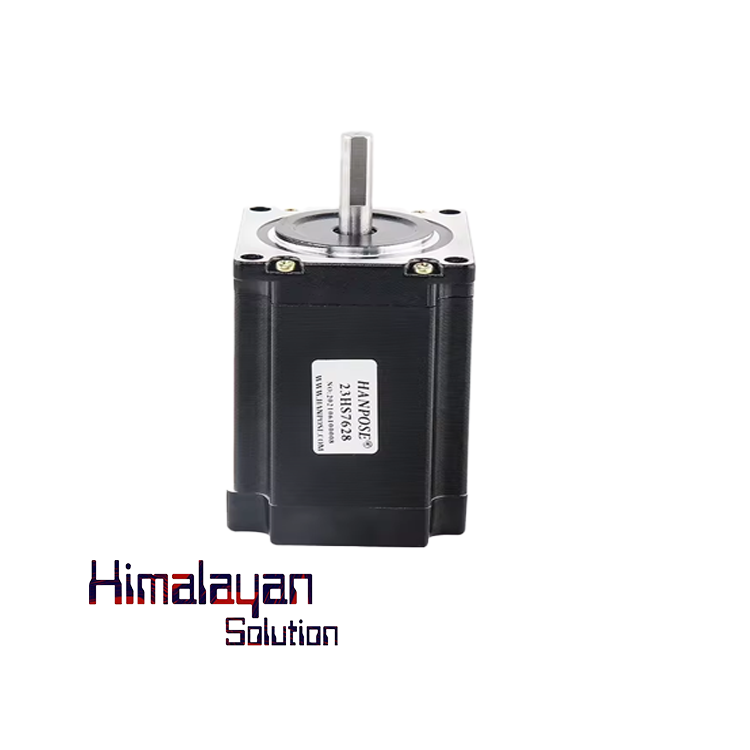

NEMA23 24V 57 Stepper Motor 76mm Height & Shaft Diameter 8mm

A 57 stepper motor is a type of NEMA 23 stepper motor, widely used in applications requiring precise motion control. The 24V rating and 8mm shaft diameter make this motor suitable for a range of industrial and DIY projects, including CNC machines, 3D printers, robotics, and automation systems.

Key Features

NEMA 23 Frame Size: The motor has a NEMA 23 frame size, which means it fits standard 23-series motor mounts. This size is often used in larger or more powerful stepper motor applications.
Voltage Rating: 24V operating voltage allows for higher torque and performance compared to lower voltage stepper motors, especially in systems requiring higher speeds or torque.
Shaft Diameter: 8mm diameter shaft, which is typical for motors of this size, providing a secure fit for pulleys, gears, or couplings.
High Torque: This stepper motor is designed to provide a high torque output, making it ideal for demanding applications like CNC machines or robotic arms.
Precision Movement: As with all stepper motors, it provides precise control of movement, dividing a full rotation into multiple steps for fine, repeatable positioning.

In Category:

Stepper Motors

Availability: Out Of Stock

Email to a Friend

Enquiry

Item	Stepper Motor
Frame Size	NEMA 23 (57mm x 57mm)
Voltage	24V
Current Rating	2.8A
Torque	1.89 Nm
Step Angle	Standard 1.8° step angle

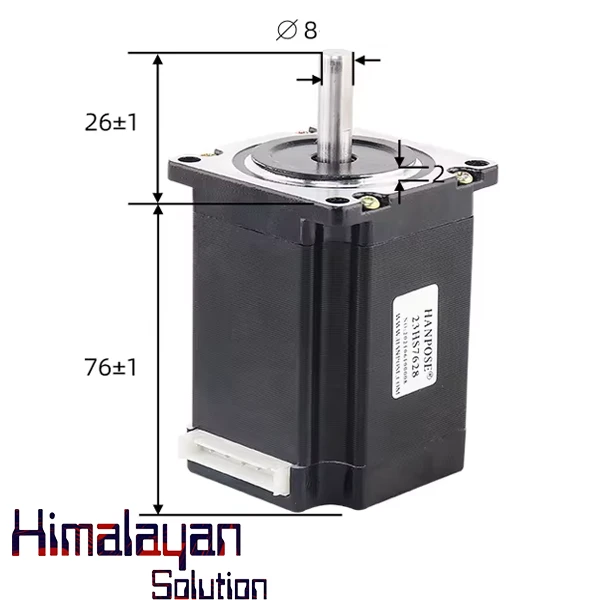

Shaft Diameter	8mm
Motor Height	76mm

Applications

CNC Machines: Ideal for use in CNC machines, especially for tasks like milling, routing, and 3D printing.
Robotics: Used in robotic arms and automation systems requiring precise, repeatable movement.
3D Printers: Common in 3D printers for controlling the extruder and movement of the print bed.
Positioning Systems: Useful in automated equipment that needs precise positioning, such as camera systems, actuators, and more.
Conveyor Systems: Can be used in automated conveyor systems for accurate control over speed and position.
