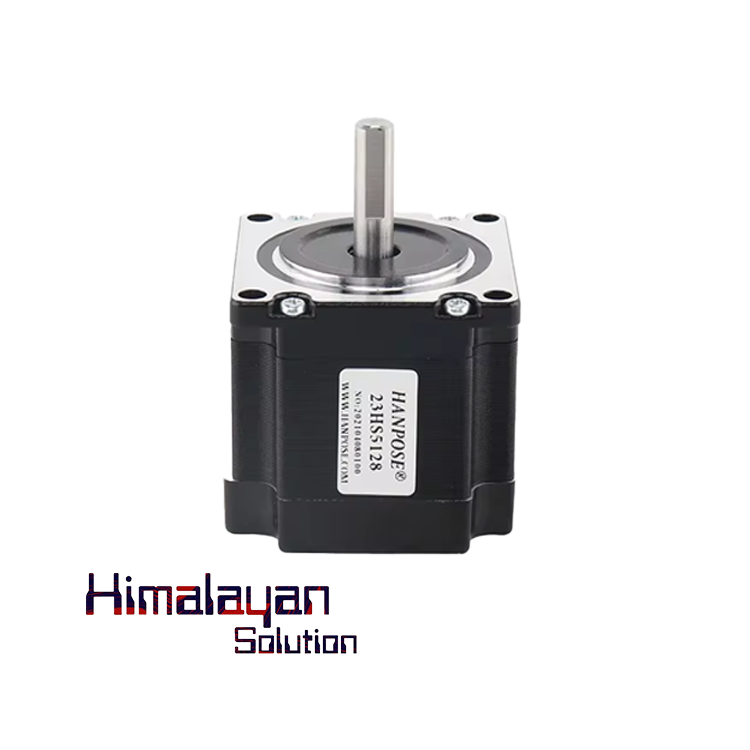

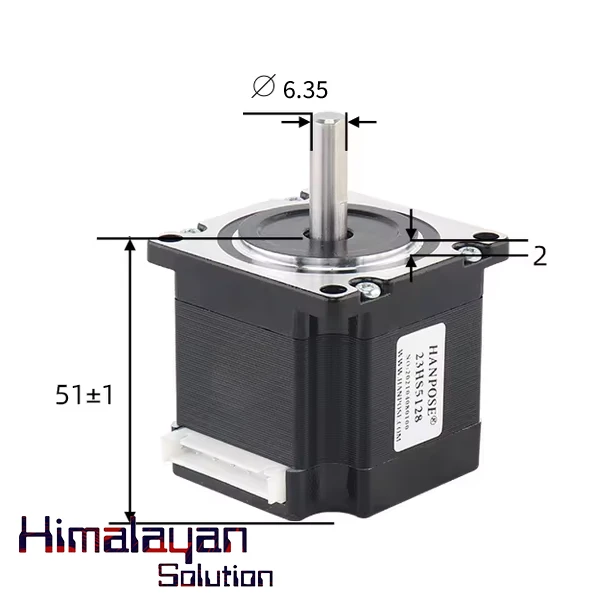

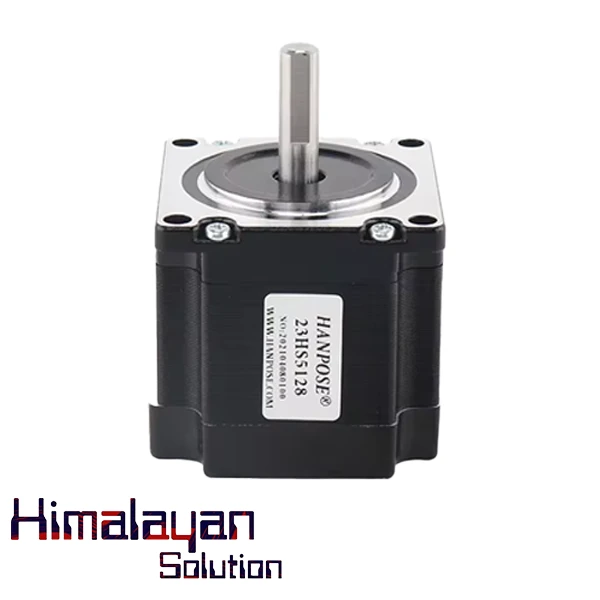

NEMA23 24V 57 Stepper Motor 51mm Height & Shaft Diameter 6.35mm
This NEMA 23 stepper motor is a hybrid stepper motor widely used in CNC machines, 3D printers, automation systems, and robotics. It operates at 24V and has a shaft diameter of 6.35mm (1/4 inch), making it compatible with standard couplings and pulleys.
Key Features
- Frame Size: NEMA 23 (57mm × 57mm)
- Voltage Rating: 24V
- Motor Height: 51mm
- Shaft Diameter: 6.35mm (1/4 inch)
- High Torque Output: Ideal for precise positioning and load handling.
- 1.8° Step Angle: Standard for high accuracy and smooth movement.
- Durable and Reliable: Designed for industrial and high-performance applications.
Availability: Out Of Stock
| Item | Stepper Motor (23HS5128S) |
| Frame Size | NEMA 23 (57mm x 57mm) |
| Voltage | 24V |
| Current Rating | 2.8A |
| Torque | 1.01 Nm |
| Step Angle | Standard 1.8° step angle |
| Shaft Diameter | 6.35mm |
| Motor Height | 51mm |
Applications
- CNC Machines: Ideal for use in CNC machines, especially for tasks like milling, routing, and 3D printing.
- Robotics: Used in robotic arms and automation systems requiring precise, repeatable movement.
- 3D Printers: Common in 3D printers for controlling the extruder and movement of the print bed.
- Positioning Systems: Useful in automated equipment that needs precise positioning, such as camera systems, actuators, and more.
- Conveyor Systems: Can be used in automated conveyor systems for accurate control over speed and positio
