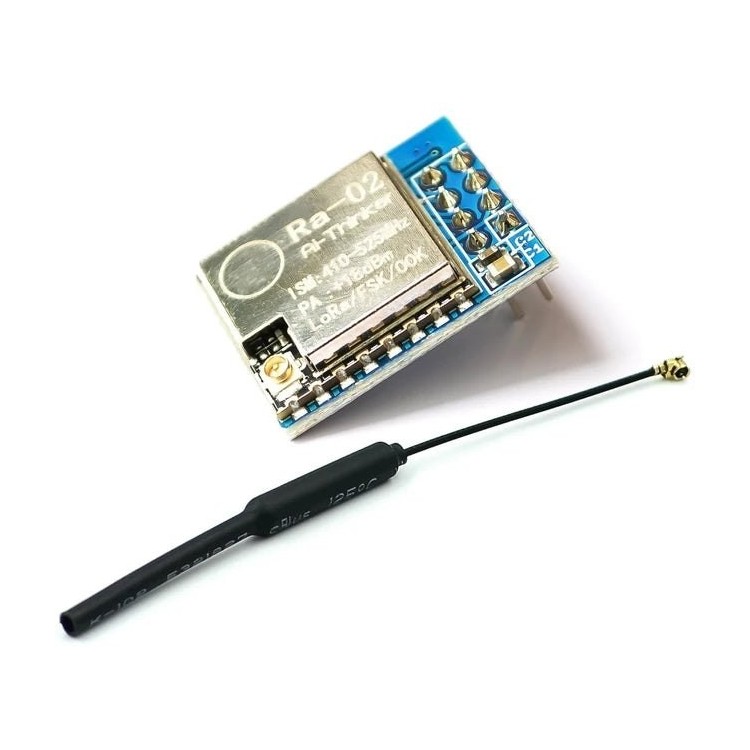

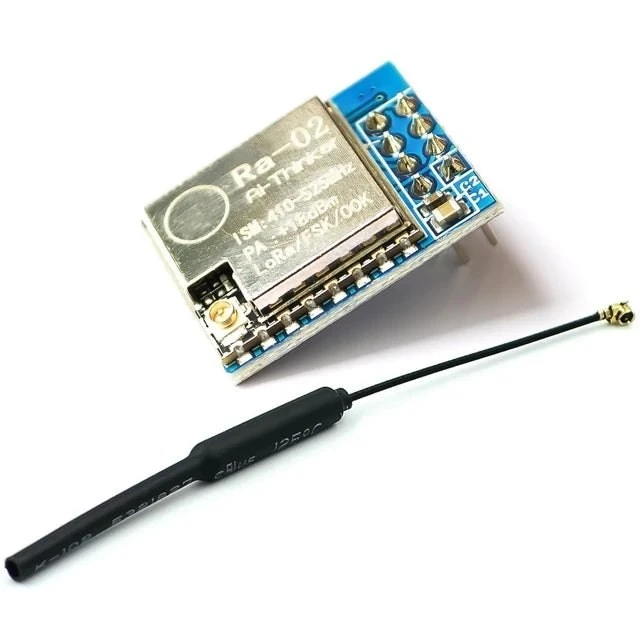

LoRa Ra-02 SX1278 433MHz Wireless Spread Spectrum Transmission Module ( With External Antenna)
Module Model: LoRa-RA-02, Input Supply Range: 2.5 ~ 3.7VDC, Interface: SPI, Programmable bit Rate: UP to 300Kbps
- Antenna Type: IPEX, Frequency Range: 410-525 MHz, Transmit Power: 18±1 dBm (Max), Operating Temperature: -10 to 85°C, LoRa Spread Spectrum modulation technology
- Constant RF power output at + 20dBm-100mW voltage change, High sensitivity: down to -148dBm, Half-duplex SPI communication, Programmable bit rates up to 300kbps, Supports FSK, GFSK, MSK, GMSK, LoRa, and OOK modulation modes
- 127dB RSSI dynamic range, Automatic RF signal detection, CAD model, and very high-speed AFC, Packet engine with CRC up to 256 bytes, Small footprint dual-row stamp-hole patch package; Dimension: Length-28mm, Width-20mm, Height-5mm, Weight-7gm
Availability: In Stock
| Communication distance: | 15KM |
| Sensitivity | down to -148dBm |
| Programmable bit rates | up to 300kbps |
| RSSI dynamic range | 127dB |
| Working voltage | 1.8-3.7v |
LoRa Ra-02 SX1278 433MHz Wireless Spread Spectrum Transmission Module Ra-02 is a wireless transmission module based on SEMTECH’s SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has a strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment. Featured by Sharvi Electronics The LoRa series module Ra-01 is designed and developed by AI-THINKER Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH’s patented LoRa modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance, and high reliability. At the same time, compared with the traditional modulation technology, LoRa modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not consider the distance, interference, and power consumption at the same time.
Package list
- LoRa Ra-02 SX1278 433M Wireless Module x 1
