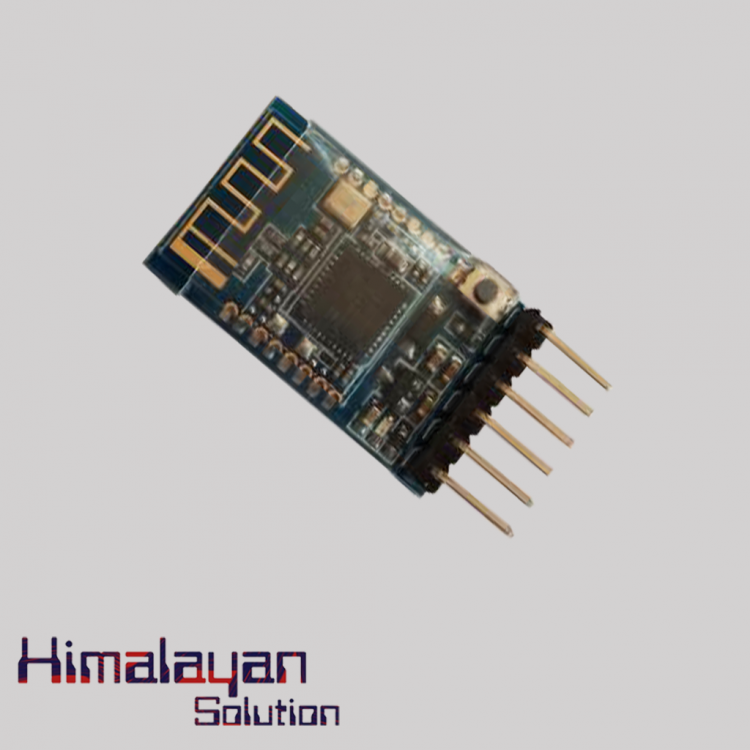

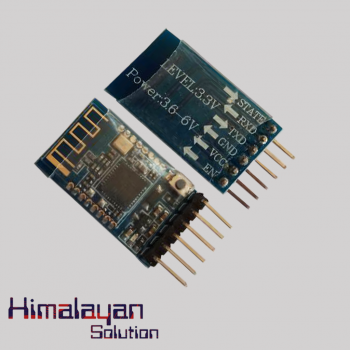

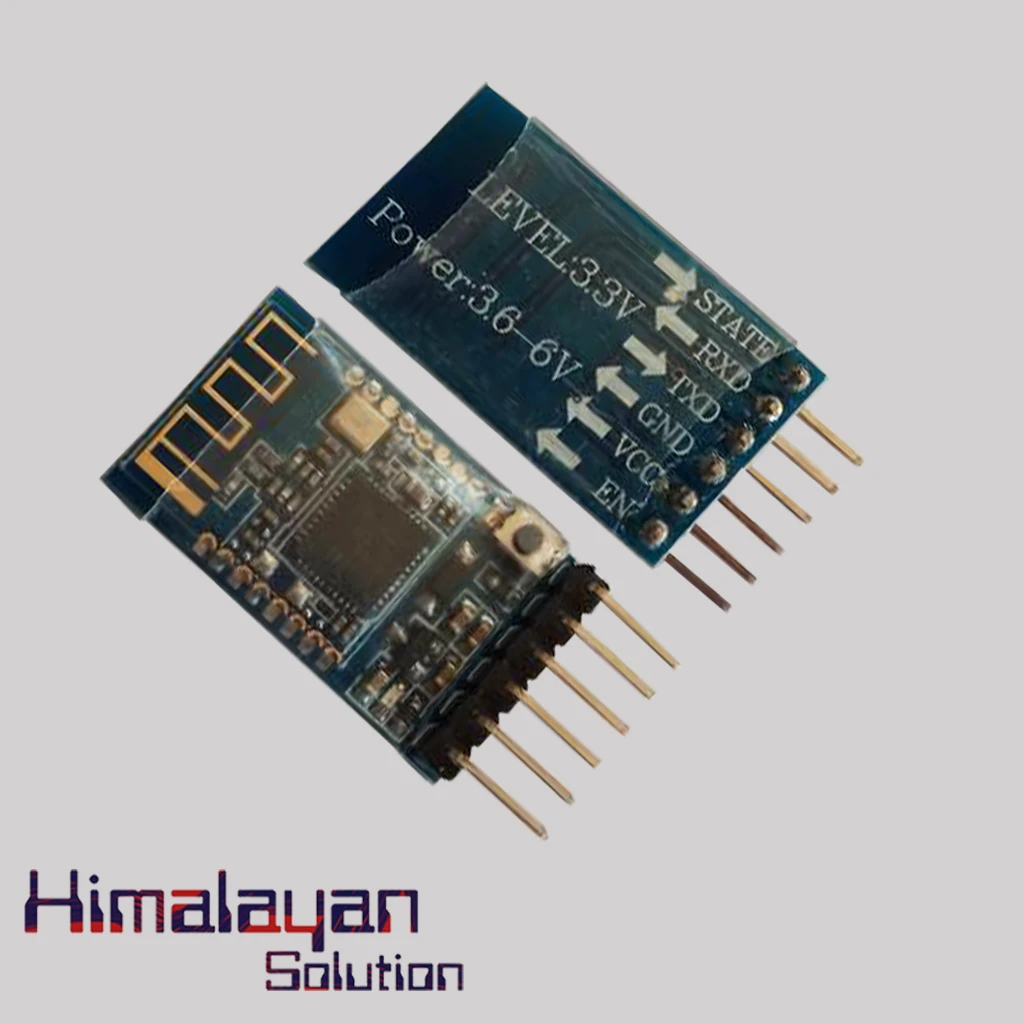

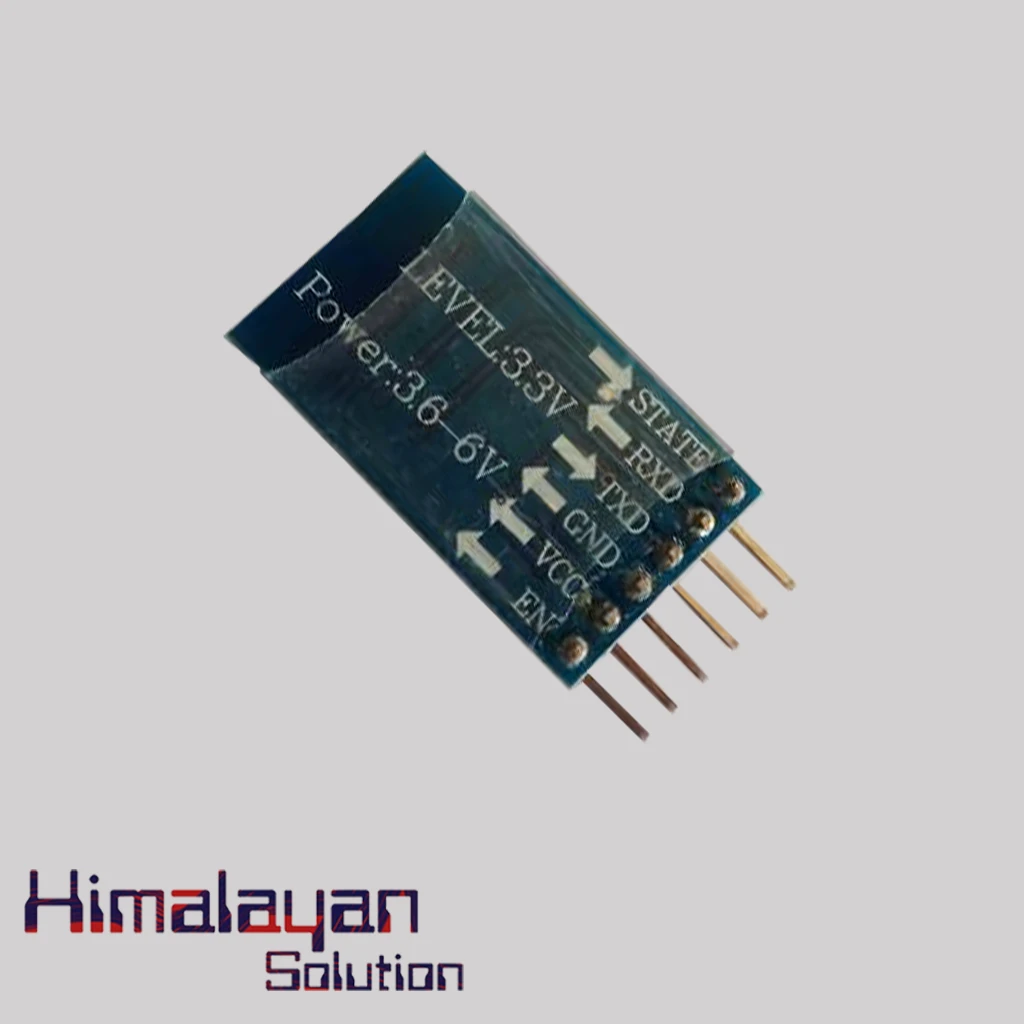

BLE Small Module
The BLE Small Module is a BLE (Bluetooth Low Energy) Version 4.0 Wireless Module. This Module is based on CC2541 chipset. It has various features like: - Fully qualified Bluetooth V4.0 BLE, Full speed Bluetooth operation, incredible small size, UART interface and with baud rate setup function and many more. It has headers for easy connection and prototyping needs. It can be suitable for various applications like: - Consumers Electronics, Mobile phone accessories, Human- interface devices (Keyboard, Mouse, Remote control), Bluetooth related projects and many more.
Availability: In Stock
| Name | BLE Small Module |
| Chipset | CC2541 |
| Operating Voltage | 3.6 V To 6 V |
| IO Voltage Level | 3.3 V |
| Bluetooth Standard | V4.0 BLE (Bluetooth Low Energy) |
| Working Frequency | 2.4 GHz ISM Band |
| Security | Authentication and Encryption |
| Size | 37.6 mm x 16.6 mm x 4.2 mm (Without Headers) |
| Header Pin Pitch | Standard 0.1 inch (2.54 mm) |
| Compliant | RoHS |
