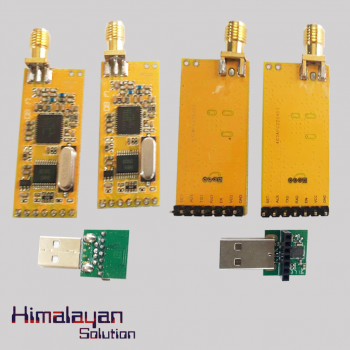

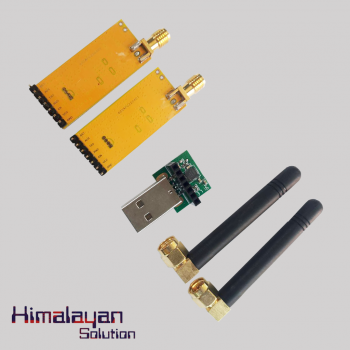

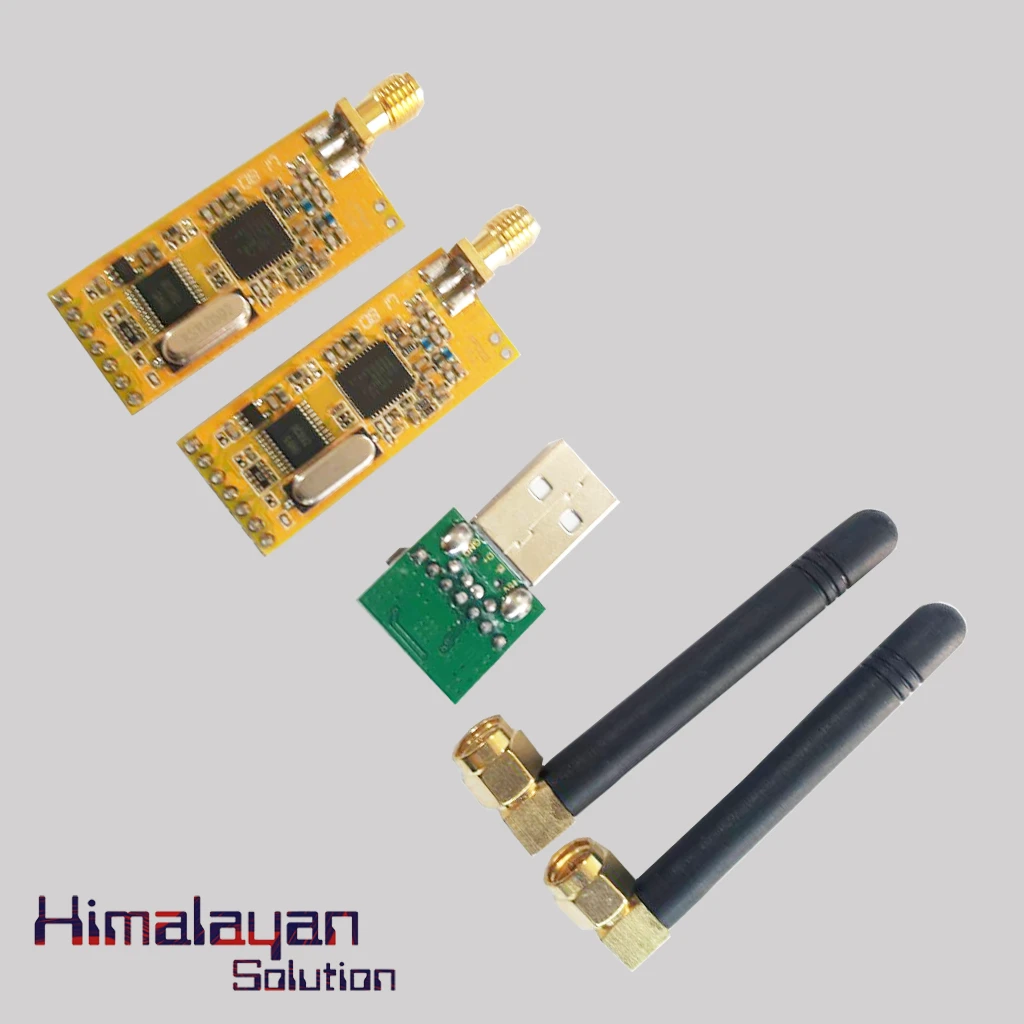

Apc 220 Wireless Serial Port Module
The APC220 Wireless Serial Port Module is a Radio Communication Module. It is a simple and economical solution to wireless data communications. It is a highly versatile, low power radio solution that is easy to setup. It also can be integrated into any project requiring a wireless RF link. It is embedded of high speed microprocessor and high performance IC chip. It creates a transparent UART/TTL interface communication. It can be suitable for various applications like: - Wireless sensor, Home automation, Wireless reading clock, Robot control, Car control, Arduino board extended, Robot model and many more.
Availability: Out Of Stock
| Name | APC220 Wireless Serial Port Module |
| Operating Frequency | 431MHz to 478MHz (Stepping) |
| Modulation System | GFSK |
| Frequency Interval | 200KHz |
| Transmitting Power | 20mw (10 Level Adjustable) |
| Receiving Sensitivity | -117dBm@1200bps |
| Air Transmission Rate | 1200 — 19200bps |
| Interface Rate | 1200-57600bps |
| Interface Efficiency Way | 8E1/8N1/8O1 |
| Interface Cushion Space | 512bytes |
| Operating Humidity | 10%~90%(Non-Condensing) |
| Operating Temperature | -20°C — 70°C |
| Power Supply | 3.3 — 5.5V (±50mV Ripple Wave) |
| Emission Current | ≤35mA@10mW |
| Receiving Current | ≤30mA |
| Dormancy Current | ≤5uA |
| Transmission Range | 1000m |
| Product Size | 39mm x 19mm x 2.8mm |
| Default Frequency Point | 475MHz |
| Default Baud Rate | 9600bps |
| Default air Baud Rate | 19200bps |
| Weight | 30g |
