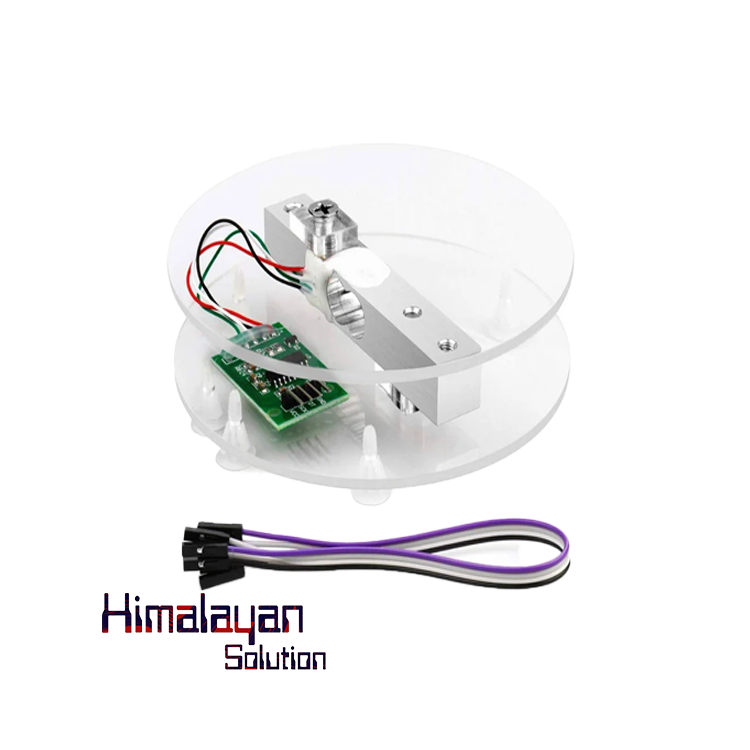

Weight Sensor Kit 5 Kg Load Cell With Hx711 Module Shell And 4pcs Dupont Wire Kit

The 5kg Weight Sensor Kit with HX711 Module, Shell, and Dupont Wires is ideal for building small-scale digital weighing systems like kitchen scales, parcel weighing, and force measurement devices. Here's a detailed overview of the kit, its wiring, and setup.

Kit Components

1⃣ 5kg Load Cell (Strain Gauge)

• Maximum capacity: 5kg (11 lbs)
• Aluminum alloy body with 4 strain gauges forming a Wheatstone bridge
• Wires:
  • Red (E+) – Excitation Positive
  • Black (E-) – Excitation Negative
  • White (A-) – Signal Negative
  • Green (A+) – Signal Positive

2⃣ HX711 Module (24-bit ADC)

• High-precision analog-to-digital converter
• Used to amplify and convert load cell signals
• Works with Arduino, ESP32, Raspberry Pi

3⃣ Protective Shell

• Helps securely mount the load cell for better stability.

4⃣ 4pcs Dupont Wires

• Used for connecting the HX711 to a microcontroller.
