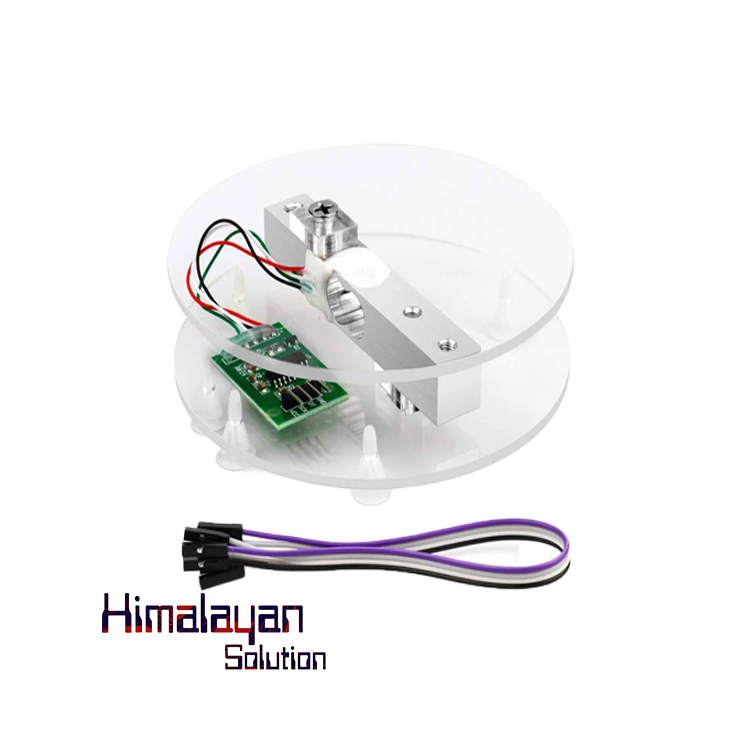

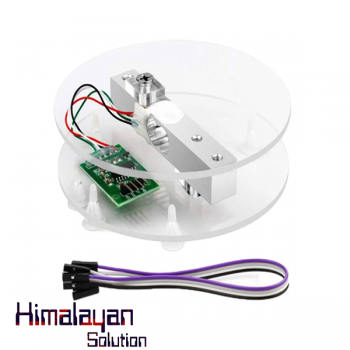

Weight Sensor Kit 20 Kg Load Cell With Hx711 Module Shell And 4pcs Dupont Wire Kit

The 20kg Weight Sensor Kit with HX711 Module, Shell, and Dupont Wires is perfect for building high-precision digital weighing systems, such as kitchen scales, parcel weighing, industrial force measurement, and smart weighing applications.

🔹 Kit Components

1️⃣ 20kg Load Cell (Strain Gauge)

• Maximum capacity: 20kg (44 lbs)
• Material: Aluminum alloy
• Configuration: Wheatstone bridge with four strain gauges
• Wire connections:
  • Red (E+) → Excitation Positive
  • Black (E-) → Excitation Negative
  • White (A-) → Signal Negative
  • Green (A+) → Signal Positive

2️⃣ HX711 Module (24-bit ADC)

• Converts and amplifies the weak signal from the load cell.
• Provides high accuracy for weight measurements.
• Compatible with Arduino, ESP32, Raspberry Pi.

3️⃣ Protective Shell

• Stabilizes the load cell for more precise measurements.

4️⃣ 4pcs Dupont Wires

• Used for easy connection between HX711 and microcontrollers.
