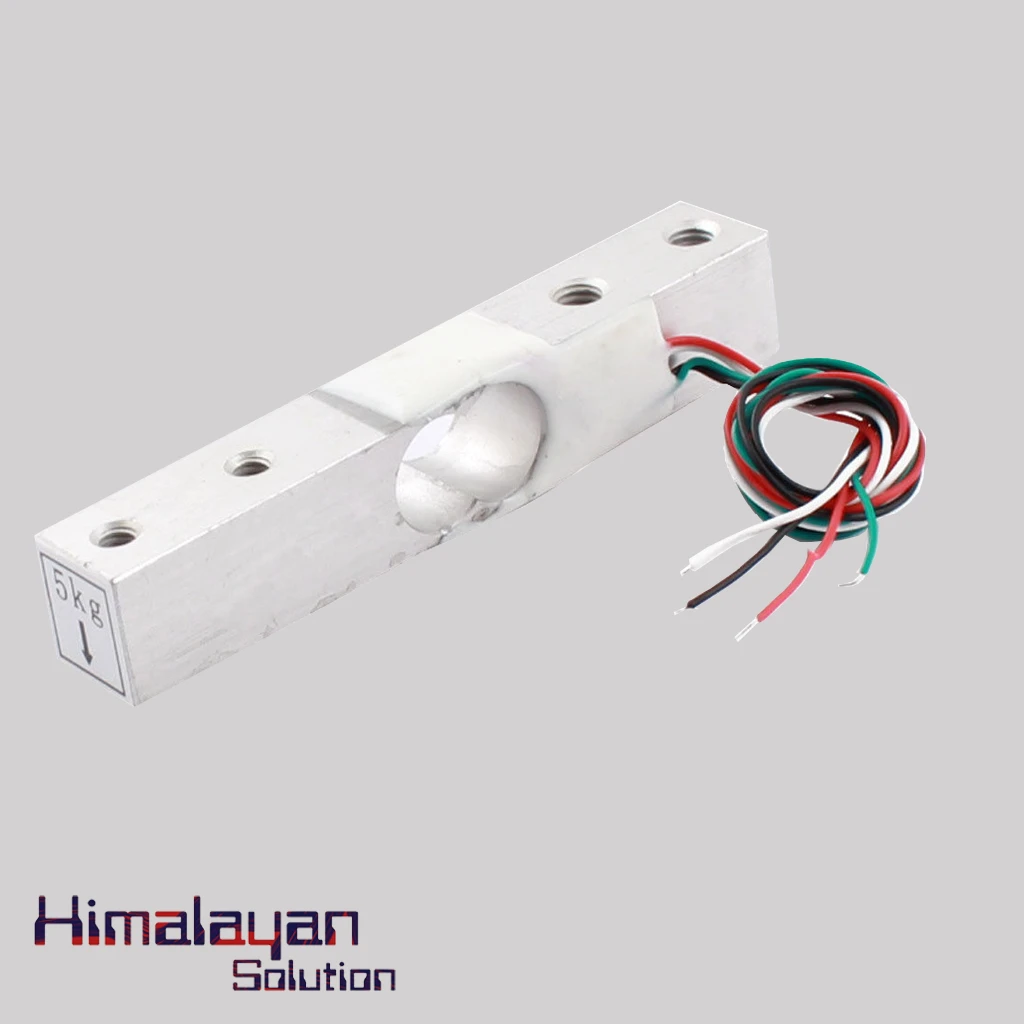

Weight Sensor 5kg

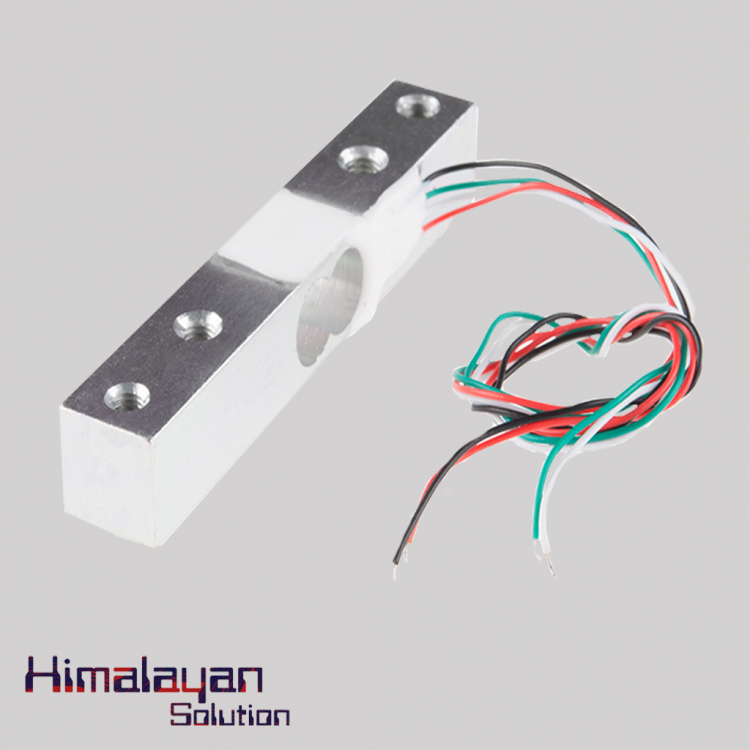

The 5Kgs Weight Sensor also known as load cell or strain gauge is made up of aluminum – alloy designed to measure force in one direction. It has maximum capacity of 5KG reading. It ignores other force applied while is measure the specific force. It is applicable in small jewelry scales, kitchen scales, electronic scales and many more. It required a load cell amplifier such as a HX711 load cell amplifier, or spark fun open scale or 1046 PhidgetBridge for electrical signal output.

In Category:
  • Sensors
  • Else/force
  • Availability: In Stock

    Load Cell Material Aluminium
    Load Cell Type Strain Gauge
    Capacity 5KG
    Rated Output(MV/V) 1 mV/V
    Accuracy Class C2
    Maximum Number Of Load Cell Verification Intervals(N Max) 2000
    Minimum Number Of Load Cell Verification Intervals(V Min) EMax/5000
    Rated Output Error Max ± 150 μV/V
    Output Impedance 1 kΩ
    Supply Voltage Max 5 V DC
    Insulation Resistance(MΩ<50V>) 5000
    Recommended Excitation Voltage(V) 10~15
    Compensated Temperature Range(°C) -10~+40
    Operating Temperature Range(°C) -20°C to +55°C
    Safe Overload(%RO) 150
    Ultimate Overload(%RO) 200
    Cable Length 550mm
    Cable Size 30 AWG (0.2mm)
    Cable - No. Of Leads 4
    Method Of Connecting Wire Red(+) , Black(-) , Green(+) , White(-)
    Size 55.25mm x 12.7mm x 12.7mm
    Precision 0.05%F.S
    Non-Linearity 0.05%F.S
    Repeatability 0.05%F.S
    Temp. Effect On Zero 0.1%F.S/10°C
    Creep 0.05%F.S/30min.
    Temp. Effect On Span 0.05%F.S/10°C
    Zero Balance ±1.5%F.S
