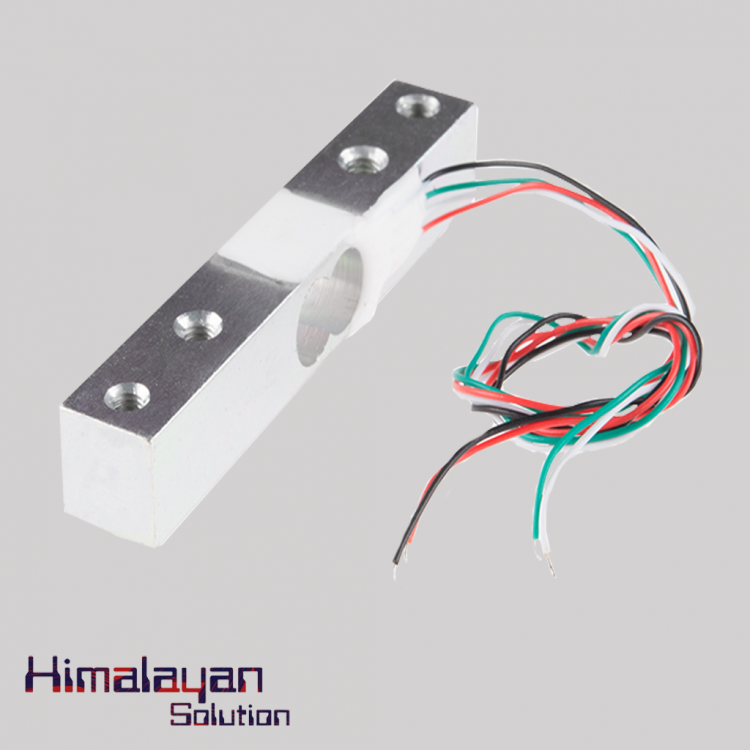

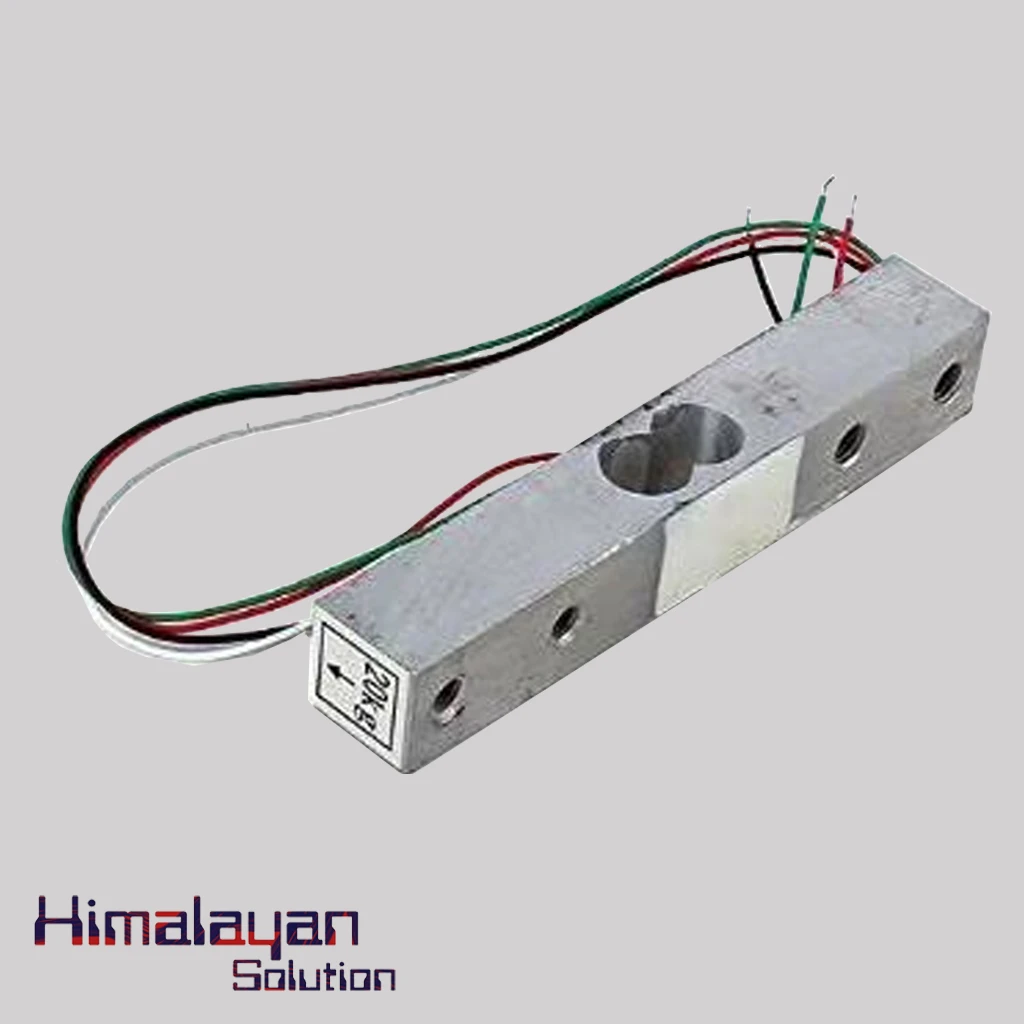

Weight Sensor 20kg
The 20 Kg Weight sensor also known as load cell or strain gauge is made up of aluminum – alloy designed to measure force in one direction. It has maximum capacity of 20 KG reading. It ignores other force applied while is measure the specific force. It is applicable in small jewelry scales, kitchen scales, electronic scales and many more. It required a load cell amplifier such as a HX711 load cell amplifier , or spark fun open scale or 1046 Phidget Bridge for electrical signal output.
Availability: In Stock
| Controlled By | Bridge Input |
| Sensor Type | Shear Load Cell |
| Weight Capacity Max | 20 kg |
| Maximum Overload | 24 kg |
| Creep | 20 g/hr |
| Zero Balance | ± 300 g |
| Cell Repeatability Error Max | ± 10 g |
| Cell Non-Linearity Max | 10 g |
| Cell Hysteresis Max | 10 g |
| Temperature Effect on Span | 1 g/°C |
| Temperature Effect on Zero | 2 g/°C |
| Rated Output | 1 mV/V |
| Rated Output Error Max | ± 150 μV/V |
| Output Impedance | 1 kΩ |
| Supply Voltage Max | 5 V DC |
| Compensated Temperature Range(°C) | -10~+40 |
| Operating Temperature Range(°C) | -20°C to +55°C |
| Cable Length | 550 mm |
| Cable Gauge | 30 AWG |
| Method Of Connecting Wire | Red(+) , Black(-) , Green (+) , White(-) |
| Small Size | 55.25mm x 12.7mm x 12.7mm |
