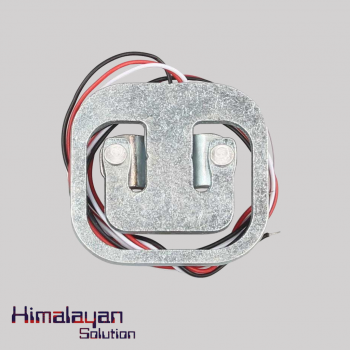

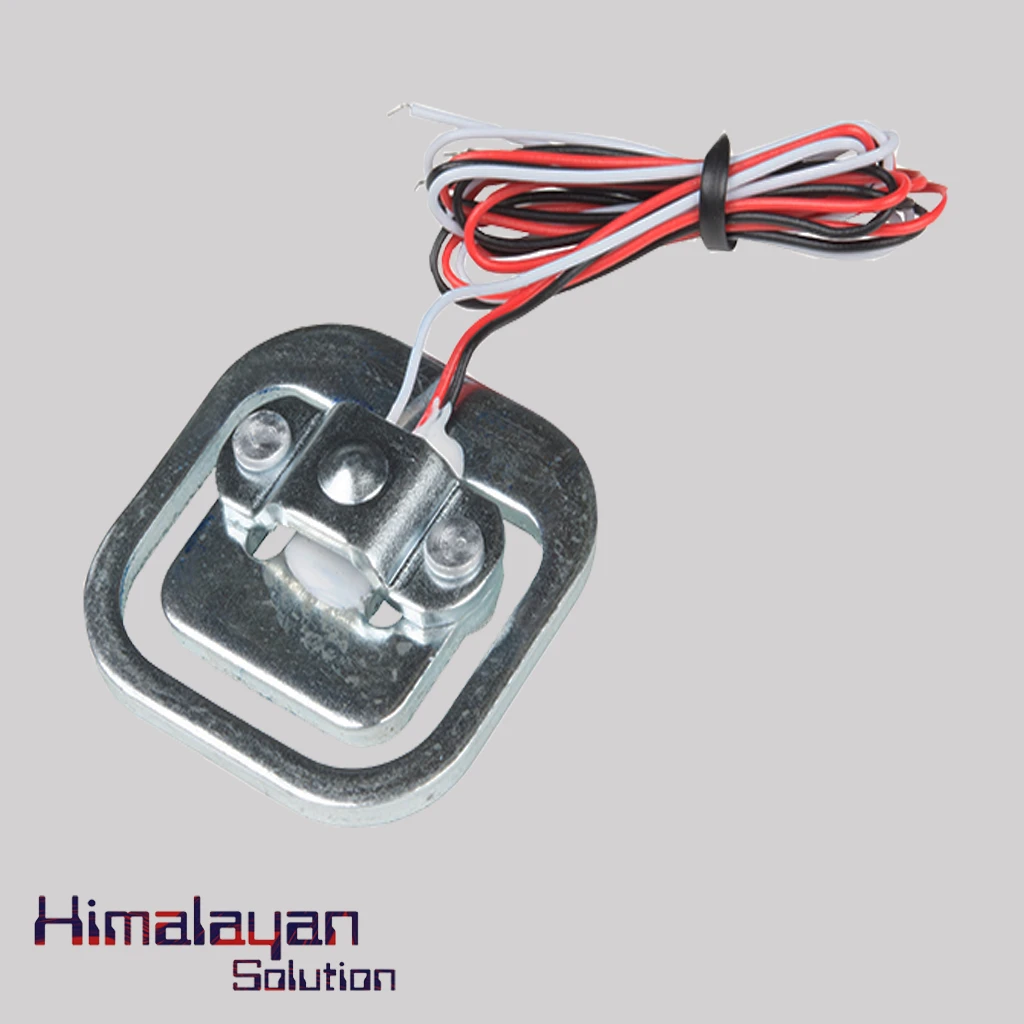

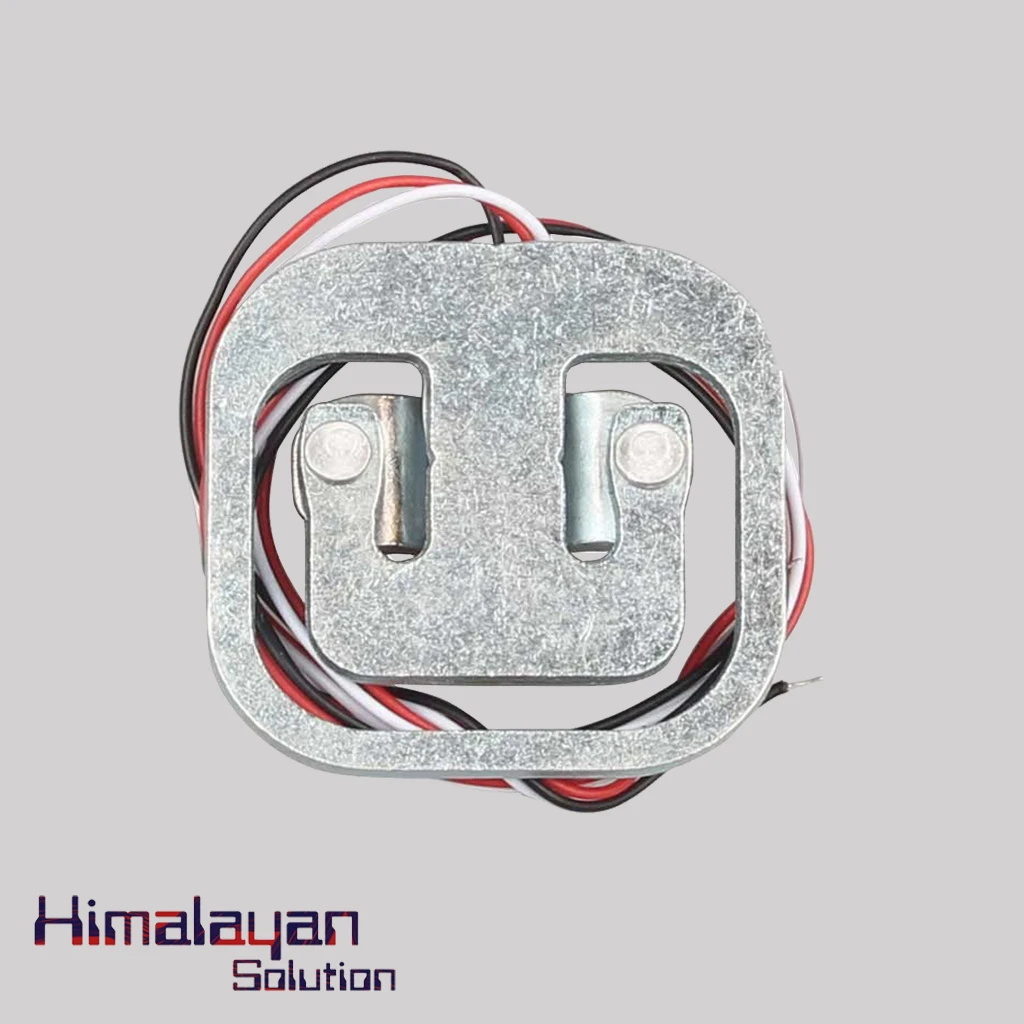

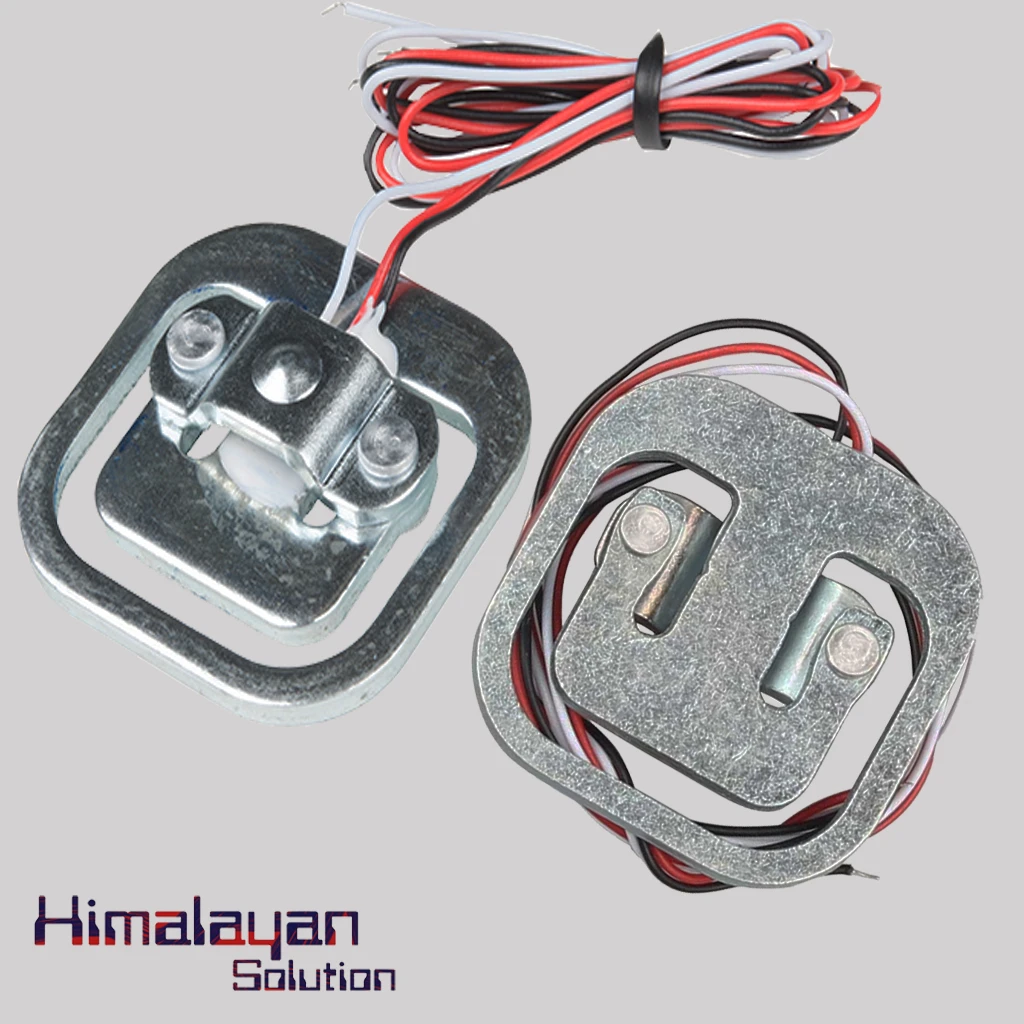

Human Body Weight Sensor
The Weight sensor also known as load cell is made up of aluminum – alloy designed to measure force in one direction. It has maximum capacity of 50 KG reading. It ignores other force applied while is measure the specific force. It is applicable mostly for measuring human body weight . It required a load cell amplifier such as a HX711 load cell amplifier , or spark fun open scale or 1046 Phidget Bridge for electrical signal output.
Availability: Out Of Stock
| Capacity | 50kg |
| Material | Aluminium Alloy |
| Max Excitation Voltage | 10V DC |
| Rated Output | 1 ±0.15mV/V |
| Overall Precision | 0.05%F.S |
| Input/Output Resistance | 1000 ± 20 Ohm |
| Recommend Excitation Voltage | 5V DC |
| Insulation Resistance | 2000 Ohm |
| Working Temperature | -10°C ~ +55°C |
| Safety Overload | 1.2 |
| Level Of Protection | IP65 |
| Cable Length | 150mm/ 6'' |
| Total Size | 24 x 28 x 6mm |
| Weight | 32g |
