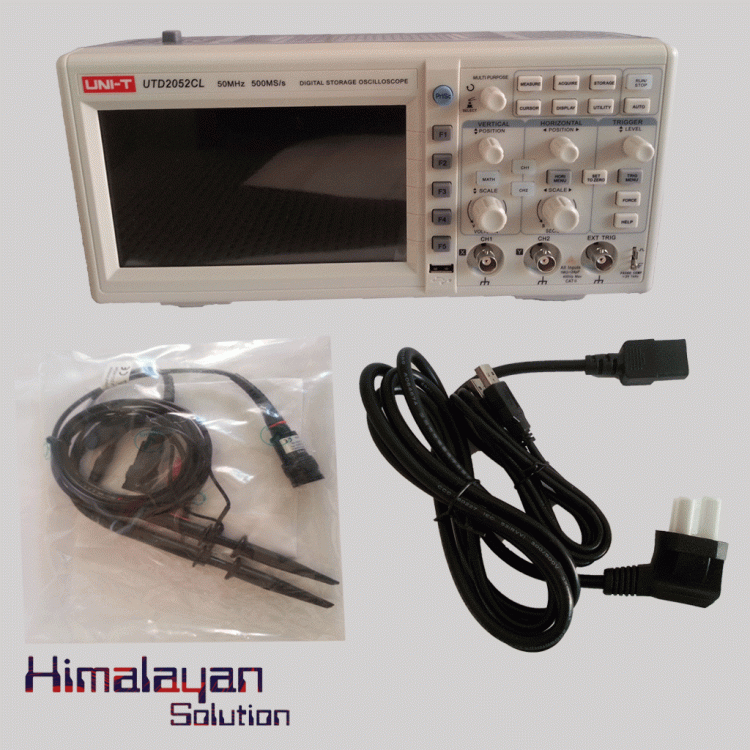

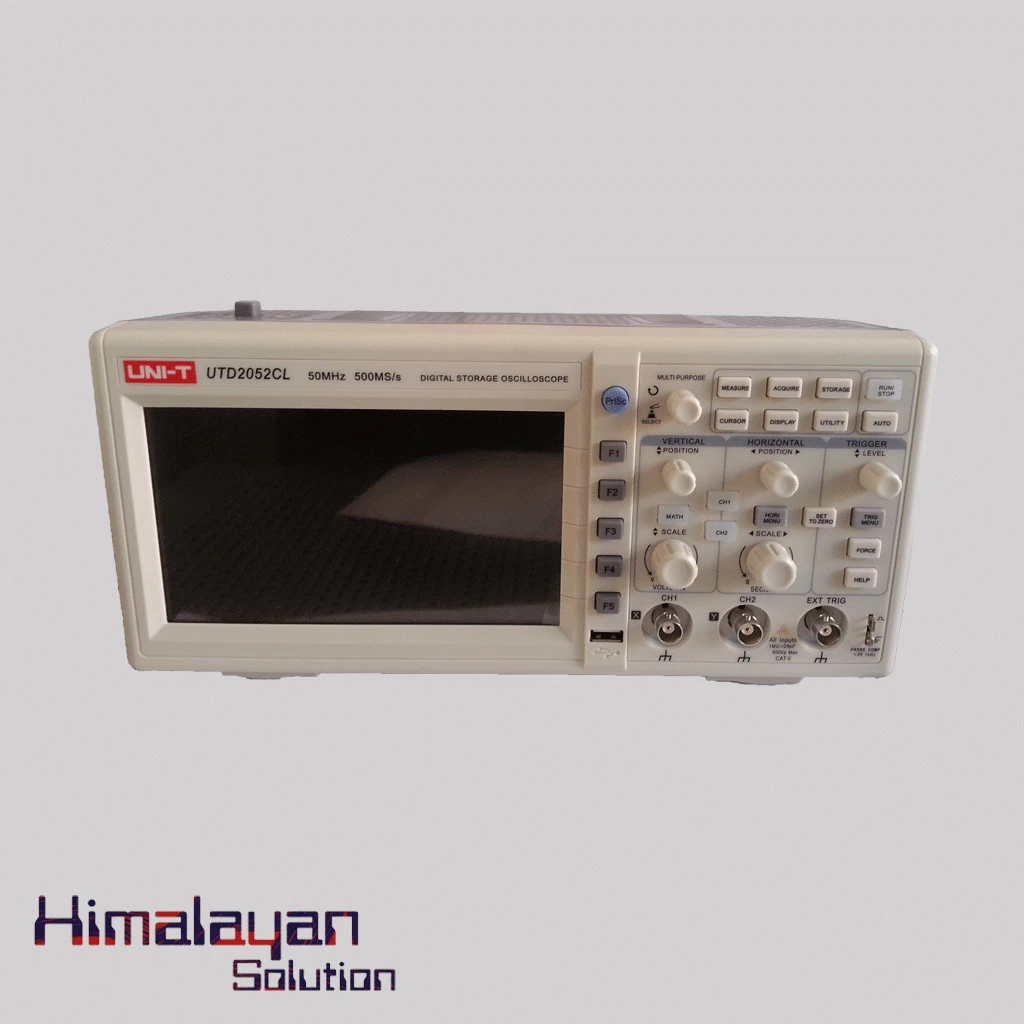

UTD2052CL 50 MHz 500 MSs Oscilloscope

The Oscilloscope has dual analog channels with width range of 1mV/div~20V/div. The LCD display is 7 inches wide and consists of a special Print Screen Feature. It also supports plug-and-play USB storage device and  can communicate as well as remote control computer using the USB device. It automatically measures 28 waveform parameters and offers unique waveform recording and replay function.

In Category:
  • Electric Tools
  • Availability: Out Of Stock

    Name Oscilloscope
    Model UTD2052CL
    Channels 2
    Bandwidth 50 MHz
    Sample Rate 500 MS/s
    Rise Time ≤7ns
    Memory Depth 25 kpts
    Waveform Acquisition Rate ≥2000wfms/s
    Vertical Sensitivity 1mV/div~20V/div
    Timebase Range 5ns/div~50s/div
    Storage Setup, Wave, Bitmap
    Trigger Modes Edge, Pluse, Alternate
    Interface USB OTG
    Power 100-240VAC, 40-440Hz
    Display 7 inches 64K Color TFT LCD, 400×240
    Product Color White and Grey
    Weight 2.2 kg
    Size (W*H*D) 306*147*122 mm
