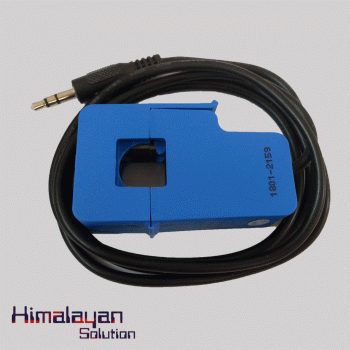

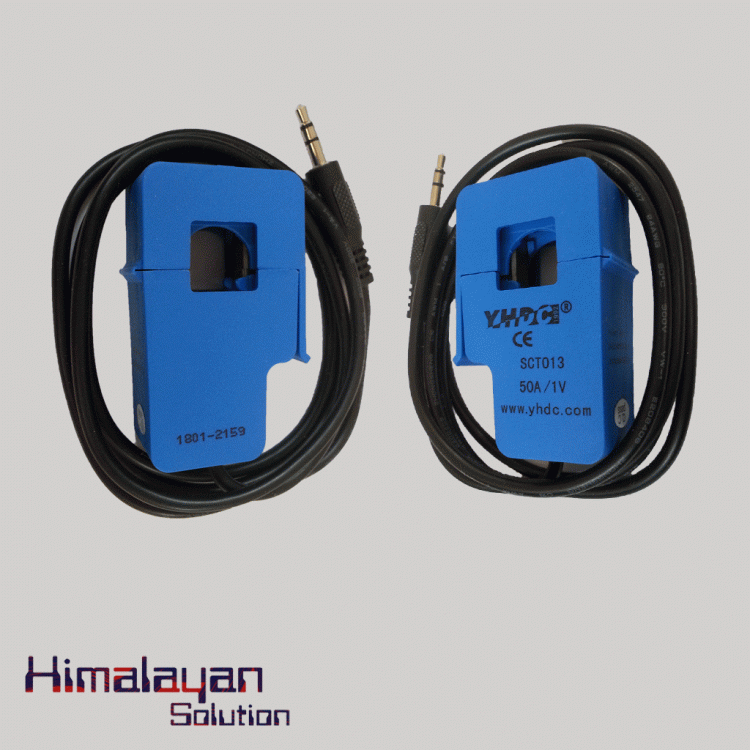

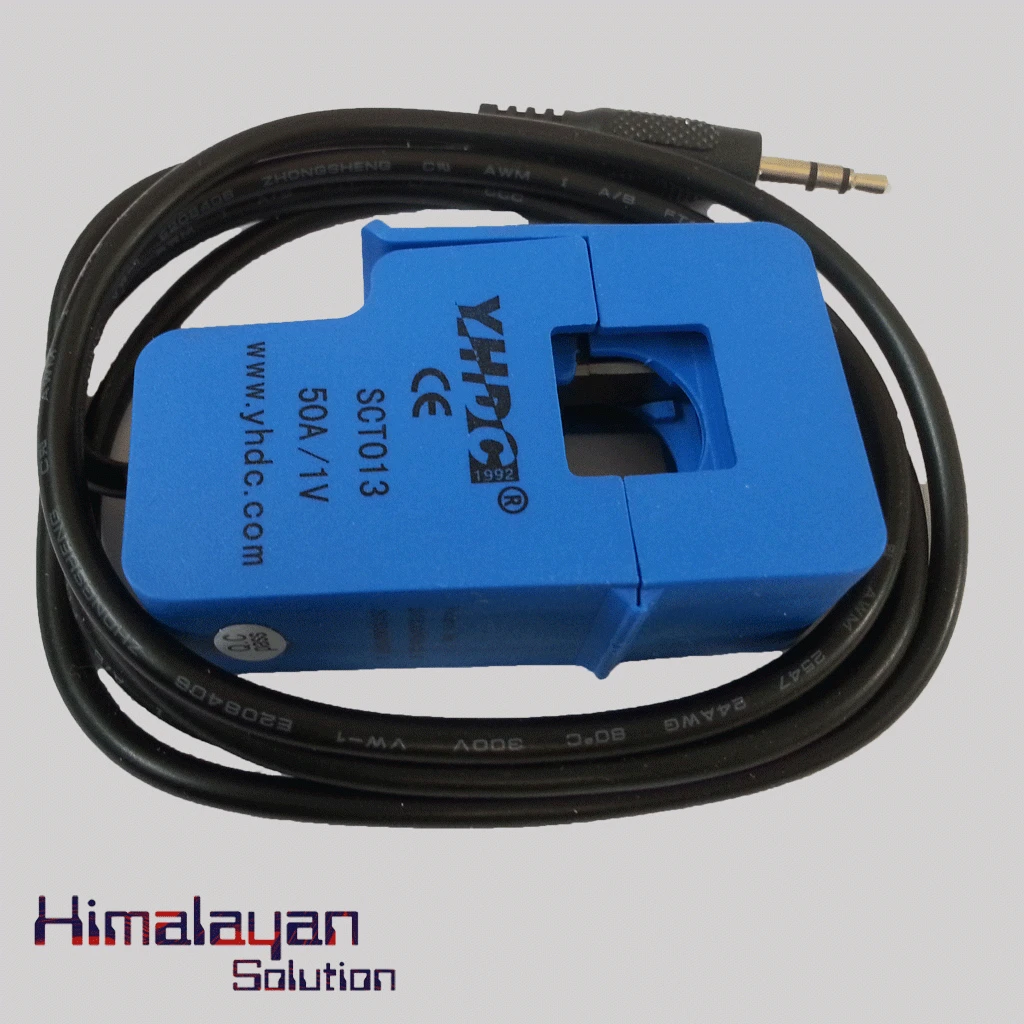

50 A Split-Core Current Transformer
The split-core transformer is used to measure current, to monitor and protect AC motor, to light equiments and to compress air. The transformer consists of currnet output type as well as voltage output type.
Availability: In Stock
| Name | 50A Split-Core Current Transformer |
| Model | SCT-013-050 |
| Rated Input | 0-50 A |
| Rated Output | 0-1 V |
| Accuracy | ±1% |
| Linearity | ≤0.2% |
| Turns Ratio | 1:1800 |
| Work Voltage | 660 V |
| Work Frequency | 50-1 KHz |
| Operating Temperature | -25° to 70° C |
| Storage Temperature | -40° to 85° C |
| Dielectric Strength | 3 KV |
| Fire Resistance | UL94-V0 |
| Material of Core | Ferrite |
| Mounting Type | Suspension |
| Weight | 78 g |
