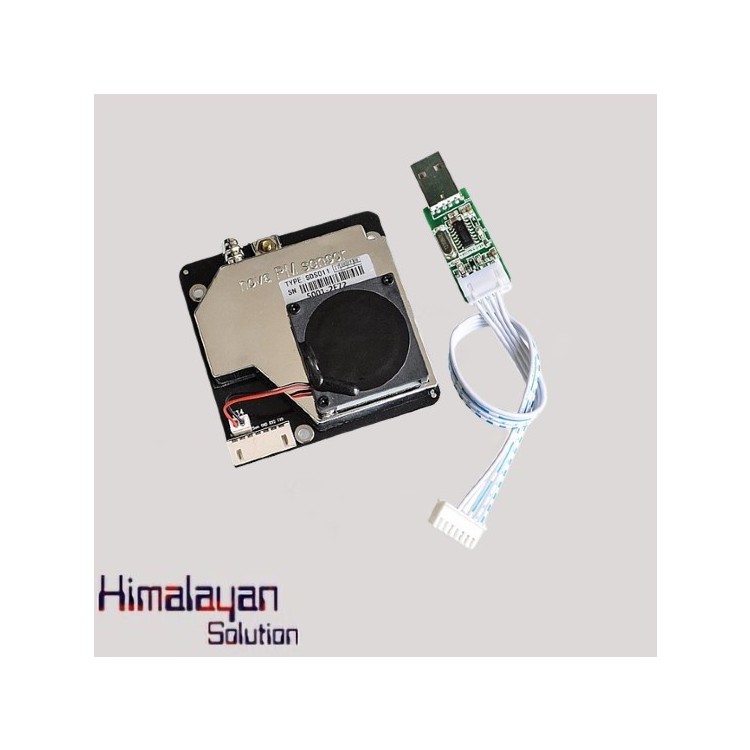

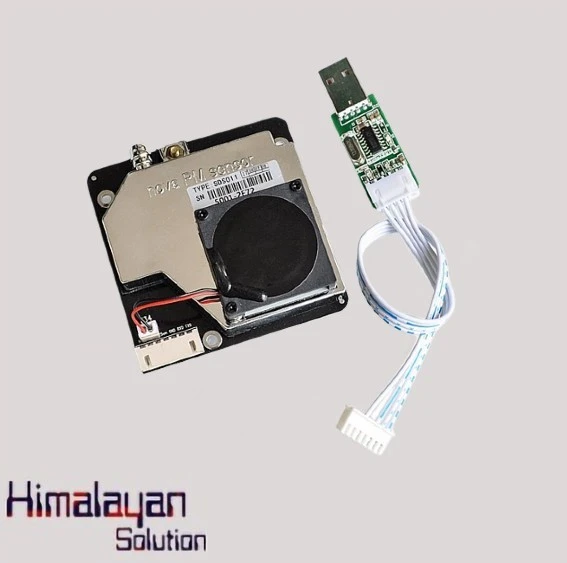

SDS011 LASER PARTICLE AND DUST SENSOR PM2.5

The SDS011 using principle of laser scattering,can get the particle concentration between 0.3 to 10um in the air. It with digital output and built-in fan is stable and reliable.

Characteristics:

• Accurate and Reliable: laser detection, stable, good consistency
• Quick response: response time is less than 10 seconds when the scene changes
• Easy integration: UART output (or IO output can be customized), fan built-in
• High resolution: resolution of 0.3ug/m3.

Scope of application:

• PM2.5 Detector
• Purifier
• Air Exchangers
• Filtering system

Technical Parameters:

• Measuring output: PM2.5,PM10
• Range: 0.0-999.9 ug/m3
• Power supply voltage: 5V
• Maximum working current: 100mA
• Sleep current: 2 mA
• Operating temperature range: -20-50℃
• Response time: 1s
• Serial data output frequency: 1 time/s
• Particle diameter resolution: Less than 0.3um
• Relative error: 10%
• Product size: 71x70x23mm
