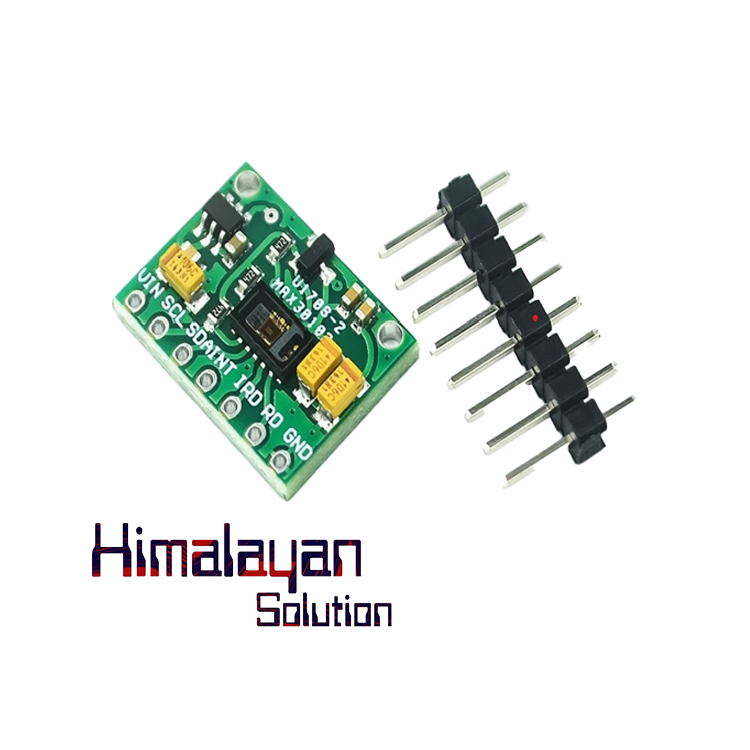

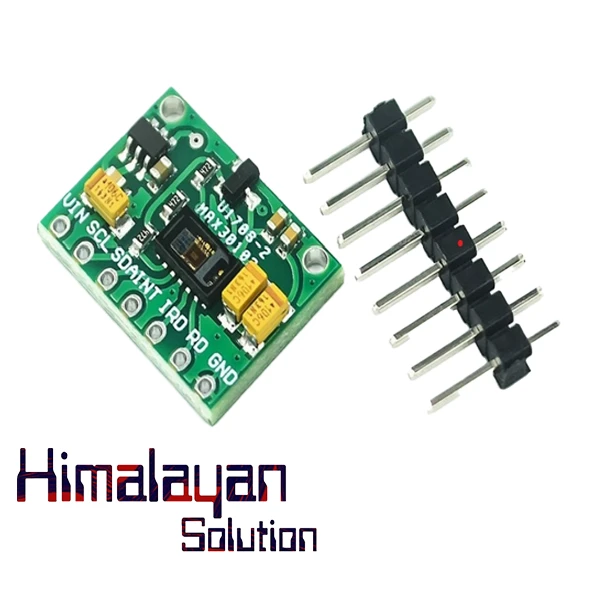

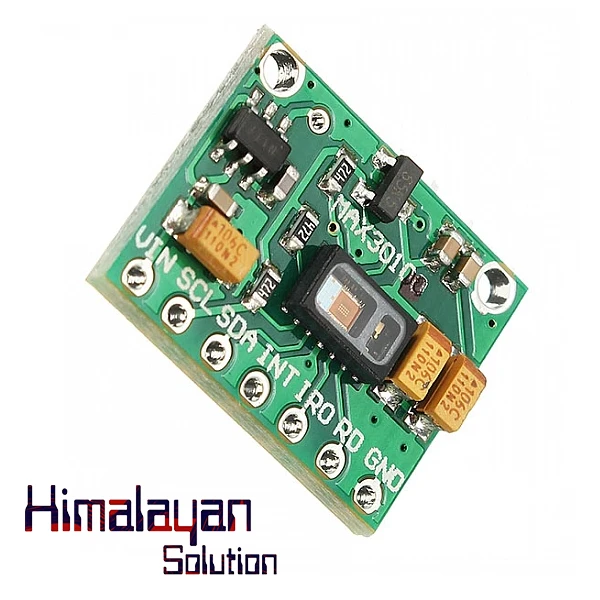

MAX30102 Pulse Oximeter and Heart Rate Sensor (Green)
The MAX30102 is integrated pulse oximetry and heart-rate monitor biosensor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. It provides a complete system solution to ease the design-in process for mobile and wearable devices.
Features of MAX30102 Pulse Oximeter & Heart-Rate Module:
- Tiny 12.7mm x 12.7mm (0.5in x 0.5in) Board Size
- Highly-integrated, small-size sensor
- Non-chest based heart-rate/SpO2 detection
- Ultra-low power consumption
Applications:
- Wearables
- Heart-rate monitor
- Pulse oximeter
Availability: In Stock
| Sensor Type | Heart-Rate Monitor and Pulse Oximeter |
| Voltage Input | 1.8V to 3.3V |
| Operating Current | 600µA (typical). |
| Default I²C Address | 0x57 |
| Heart Rate | 30 to 240 bpm |
| Color | Green |
Notes:
- Calibration: The green PCB modules often require manual calibration or additional filtering in software for consistent readings.
- Accuracy: Slightly less reliable than black PCB modules due to potential component quality variations.
- Usage Tips: Ensure proper ambient light shielding for accurate results.
