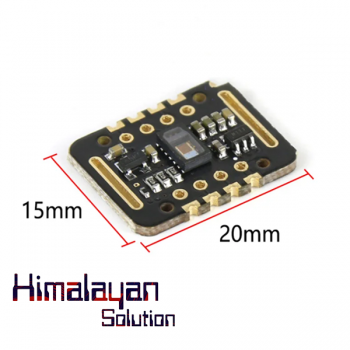

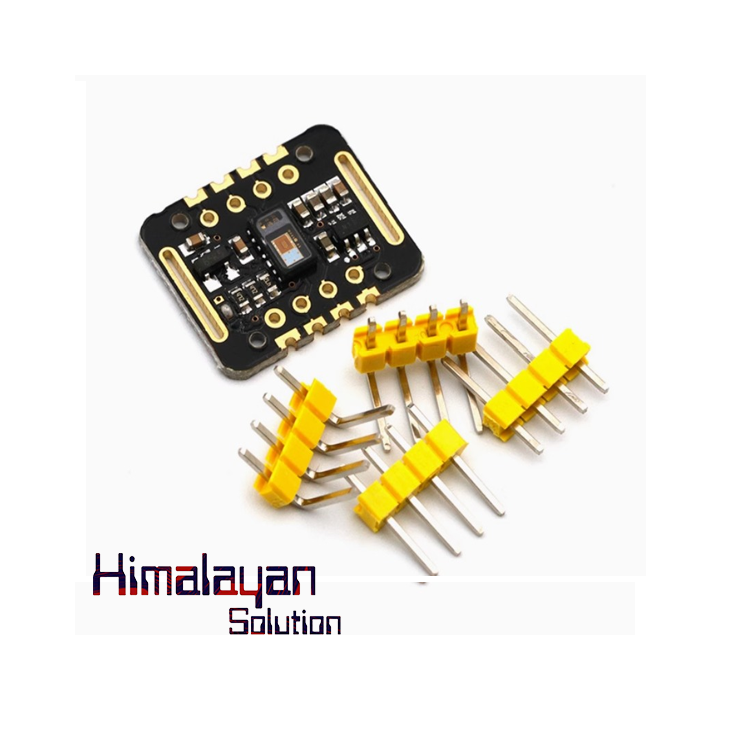

MAX30102 Heart Rate and Oximeter Sensor (Black)
Compact module with a pulse sensor and SpO2 level (oxygen saturation level). It is based on the MAX30102 chip and MCU with heart rate and oximetry algorithm. Sensor communicates via the I2C interface. It also has an interrupt output. The circuit consists of two LEDs, a photo detector, optimized optics and an analog signal processing circuit. MAX30102 provides a complete system solution to simplify the design process of mobile and wearable devices.
Features
- Heart rate monitor and pulse oximeter
- Integrated protective glass
- Equipped with a microprocessor that integrates heart rate and oximetry algorithm
- Built-in photo detector and red, IR and green LEDs in one housing
Availability: In Stock
| Sensor Type | Heart rate monitor and pulse oximeter |
| Color | Black |
| ADC | 18-bit |
| Temperature sensor resolution | 0.0625°C |
| I2C address | 0x57 (7-bit) |
| Power supply | 3.3 to 5 volts |
| Current consumption | 50 mA |
| Working temperature | -40°C to 85°C |
