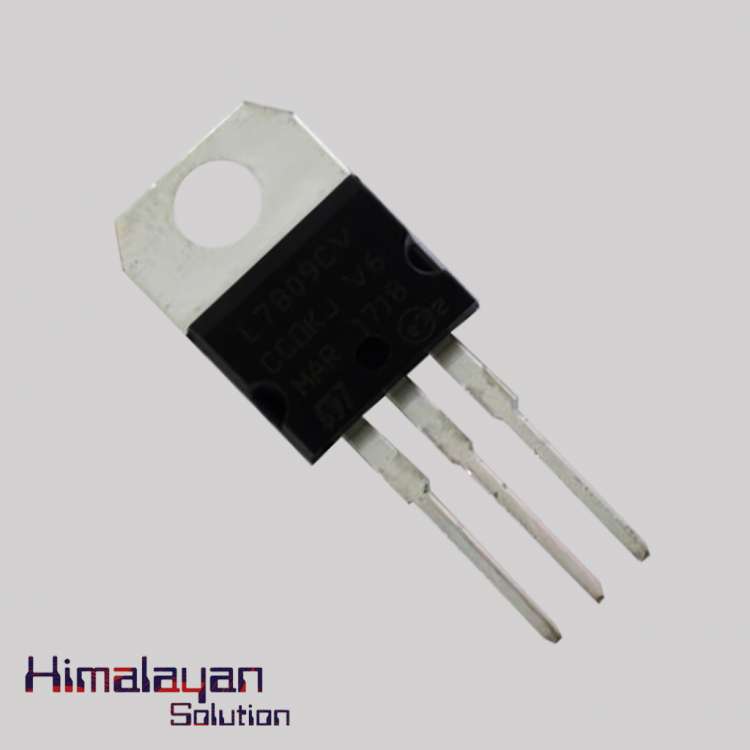

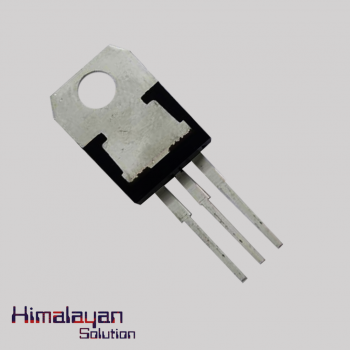

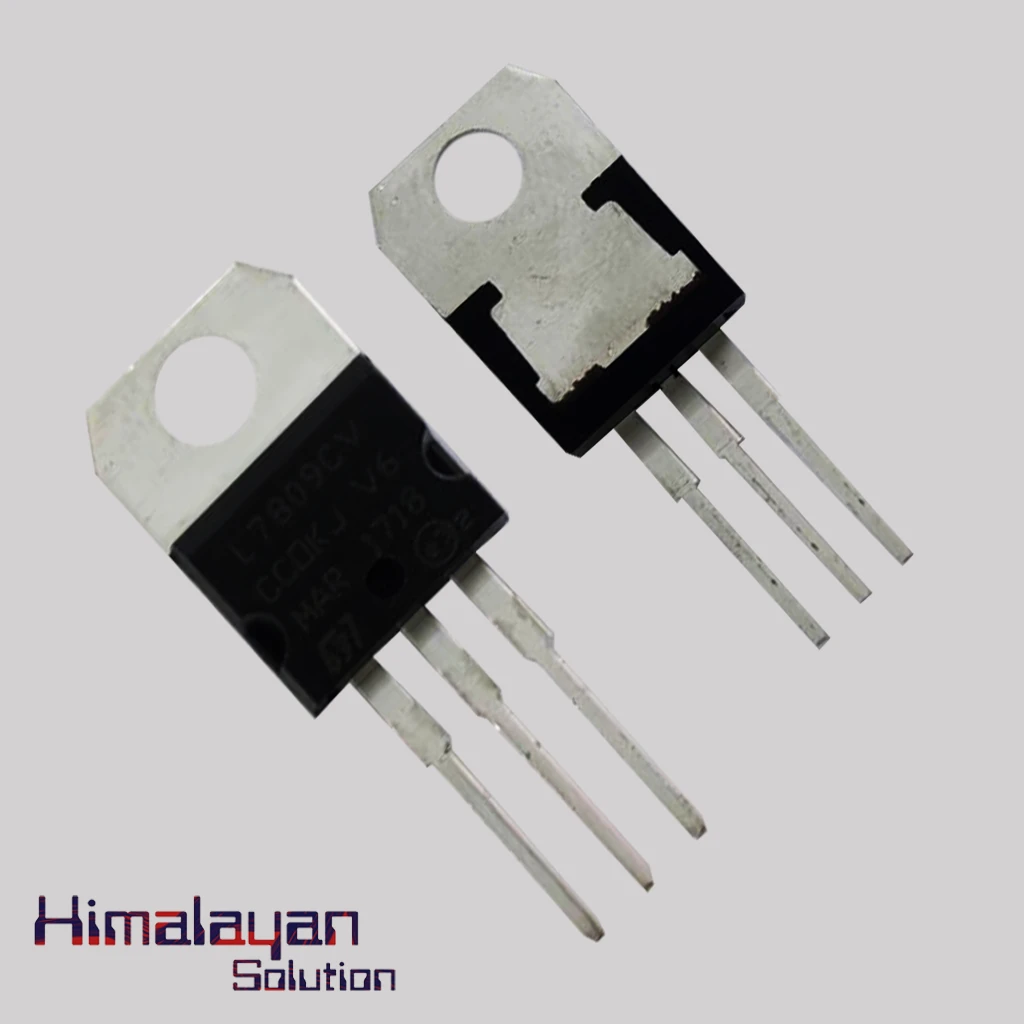

L7809CV IC

Ask about this product

0 /5.0 (0 reviews)

SKU HS507

The L7809CV IC is a 9V positive third terminal voltage regulator which can remove problems that are related with single point regulation by providing local on-card regulation. It has feature of safe area protection with the addition of internal thermal shutdown and current limiting. The regulated output voltages can be...

Need More Information?

Message Us Now

Cash on delivery available

The L7809CV IC is a 9V positive third terminal voltage regulator which can remove problems that are related with single point regulation by providing local on-card regulation. It has feature of safe area protection with the addition of internal thermal shutdown and current limiting. The regulated output voltages can be applicable in logic systems, instrumentation, HiFi and other solid state electronic equipments.

Specifications

13

Name

L7809CV Transistors

Output Voltage

9 V

Output Current

1.5A

Package Type

TO-220

Output Type

Fixed

Mounting Type

Through Hole

Maximum Input Voltage

35 V

Minimum Input Votage

11V

Pin Count

3

Operating Temperature

0 °C To +125 °C

Number Of Outputs

1

Load Regulation

180 mV

PSRR / Ripple Rejection

55 DB

Downloads & Resources

1

Datasheet for L7809CV IC Transistors
