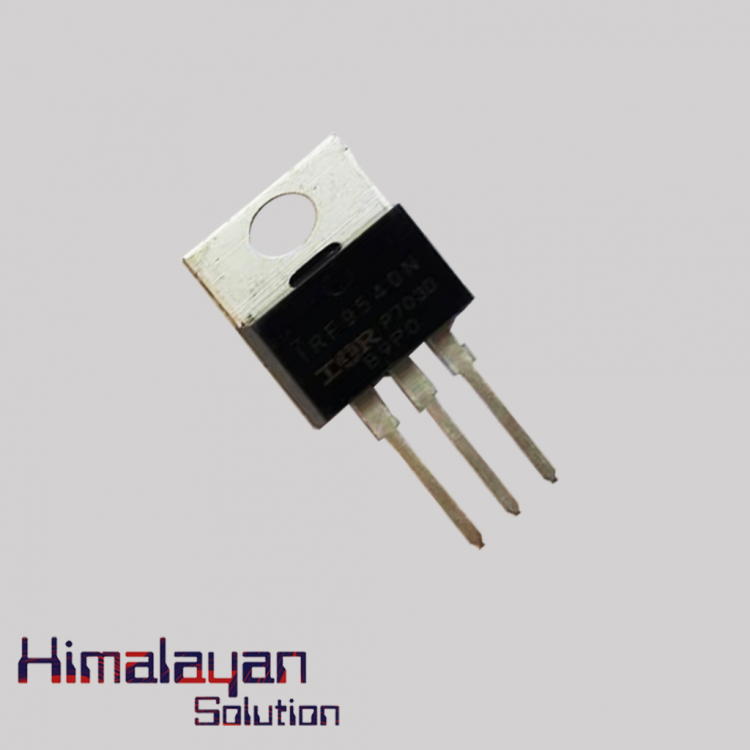

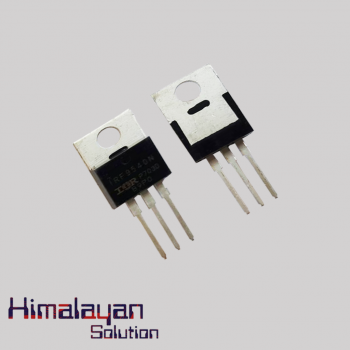

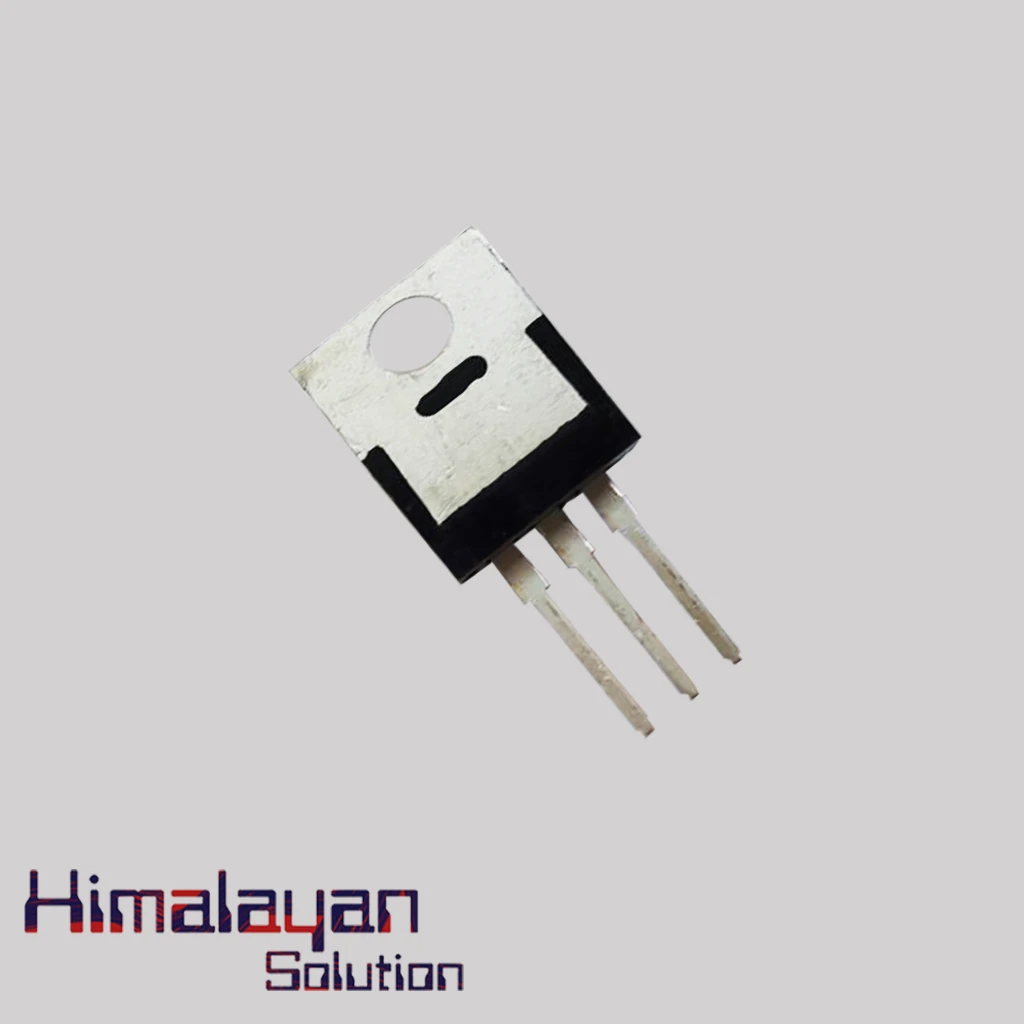

IRF9540N IC

Ask about this product

0 /5.0 (0 reviews)

SKU HS664

The IRF9450N IC is a International Rectifier based on HEXFETs P-Channel Power MOSFET Transistor Module. It utilizes advanced processing techniques to achieve extremely low on resistance per silicon area. It has various features such as: - Advanced process technology, Dynamic dv/dt rating, fast switching, fully avalanch...

Need More Information?

Message Us Now

Cash on delivery available

The IRF9450N IC is a International Rectifier based on HEXFETs P-Channel Power MOSFET Transistor Module. It utilizes advanced processing techniques to achieve extremely low on resistance per silicon area. It has various features such as: - Advanced process technology, Dynamic dv/dt rating, fast switching, fully avalanche rated and many more. It provides designer with an extremely efficient and reliable device for use in a wide variety of applications like: - Amplifier, switching, automobile, lighting and so on.

Specifications

23

Name

IRF9450 N IC

Package

TO-220 AB

Category

Power MOSFET

Configuration

Single

Maximum Power Dissipation

140000 mW

Number of Elements per Chip

1

Maximum Continuous Drain Current

23 A

Maximum Drain Source Resistance

0.117 Ohm@10 V

Maximum Drain Source Voltage

100 V

Maximum Gate Source Voltage

±20 V

Typical Fall Time

51 ns

Typical Gate Charge @ Vgs

97 nC(Max)@10 V

Typical Input Capacitance @ Vds

1300 pF@25 V

Typical Rise Time

67 ns

Typical Turn-Off Delay Time

51 ns

Typical Turn-On Delay Time

15 ns

Operating Temperature Range

-55°C to 175°C

Channel Type

P

Mounting Type

Through Hole

Number of Pins

3

Width

4.69mm (Max)

Height

8.77mm (Max)

Length

10.54mm (Max)

Downloads & Resources

1

Datasheet For IRF9540N IC
